Comark RF500A User Manual

Page 19

Start the RF500A-CONFIG Utility using the Windows Start

Menu – The screen as shown in “Figure 3 - RF500A-CONFIG

Screenshot” opposite, will be displayed:

Enter the Serial Number of the Gateway connected

then click the

View Current Settings

button - Wait until

the various fields are populated.

Enter the IP address, subnet mask and Default Gateway

using dotted decimal notation into their respective fields.

Software Issue

For Comark Instruments use only

Comms Port

For Comark Instruments use only

Mac Address

Hardware address of the Ethernet interface

IP Address

The IP address allocated to the Gateway

Net mask

The subnet mask associated with the

address

Default Gateway

The IP address of the network gateway to

allow access from a different subnet

Click the

Save New Settings button

- After successful transfer, RF500A-CONFIG will Reset the RF500A.

The

Generate Report File

button is only for use under instruction from Comark Technical Support.

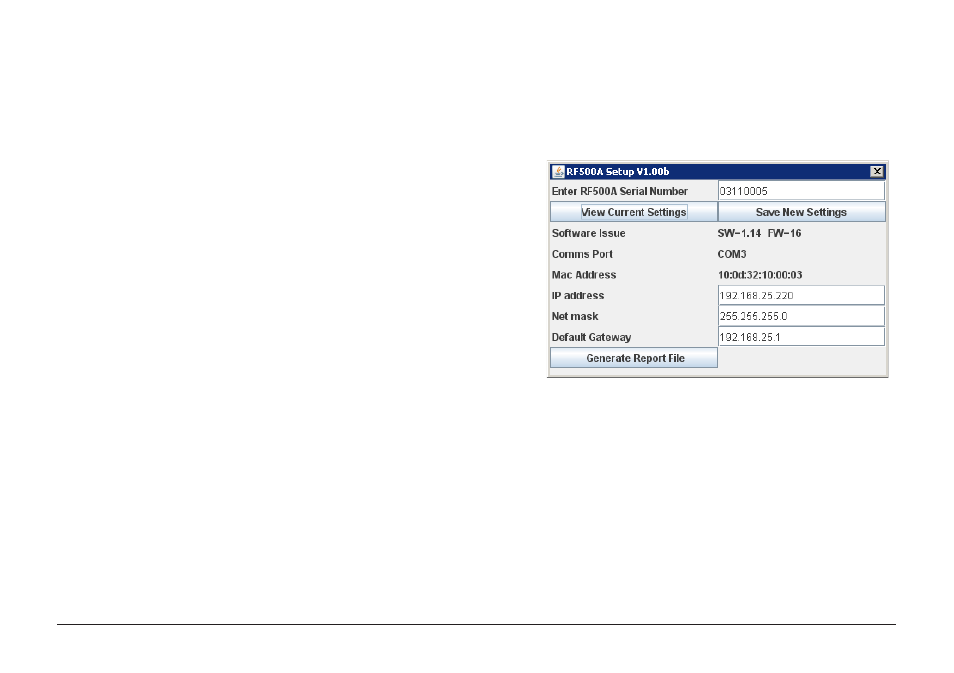

Figure 3 - RF500A-CONFIG Screenshot
