26
Alarm Outputs
SW1 & SW2 are two switched outputs provided for connection to customer alarm indicators, via relay contacts with
24Vdc 500mA rating, configurable for either NO (Normally Open) or NC (Normally Closed). These are marked as
SW1 and SW2, and are in the form of 2.5mm Jack Sockets. Plugs to fit these sockets can be ordered from Comark
Instruments using part number: RFJACK.
With the Gateway switched OFF the relays are in a Normally Open condition, this may cause any equipment
connected to the contacts to energise.
Side Switches and Indicators

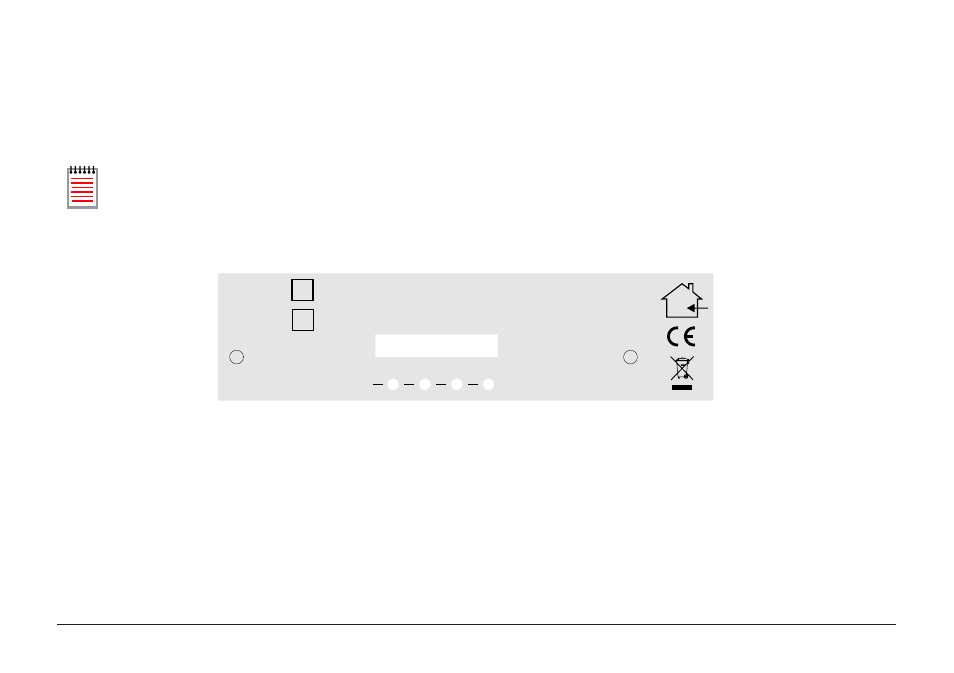

Figure 8 – Left Hand Side View of Gateway
ON / OFF Gateway Startup/Powerdown switch
STATUS Diagnostic LEDs for technical support use
AUX Reserved Switch
ON / OFF AUX
STATUS
1 2 3 4
RF500A
SERIAL
No.
Comark Instruments, 52 Hurricane way,
Norwich, Norfolk, NR6 6JB. UK
Tel: 01603 (+44 1603) 256647
Email: [email protected]
www.comarkltd.com
Comark Instruments, PO Box 9090,
Everett, WA 98206, USA
Tel: (503) 643 5204
Email: [email protected]
www.comarkUSA.com RF500AP
MADE IN UK
FOR INDOOR USE ONLY
DO NOT MOVE WHEN
IN OPERATION
