Page 29
28

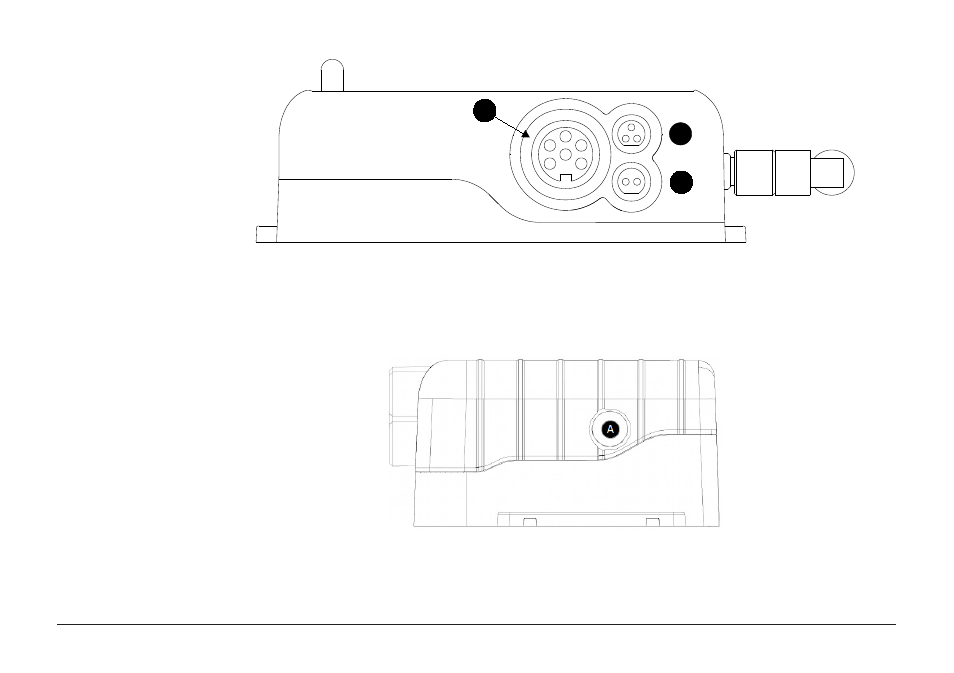

Figure 10 - Connector view of RF512, RF515, RF516 & RF542 Transmitter
A.
Lumberg Socket for Probe
B.
Socket for Door & RF525 Activator (Dual function)
C.
External DC adaptor socket
Figure 11 - Ethernet Link Indication Window (RF542 Only)
A.
Ethernet link indication (once a link is detected the green indicator will be illuminated)
C
B
A
