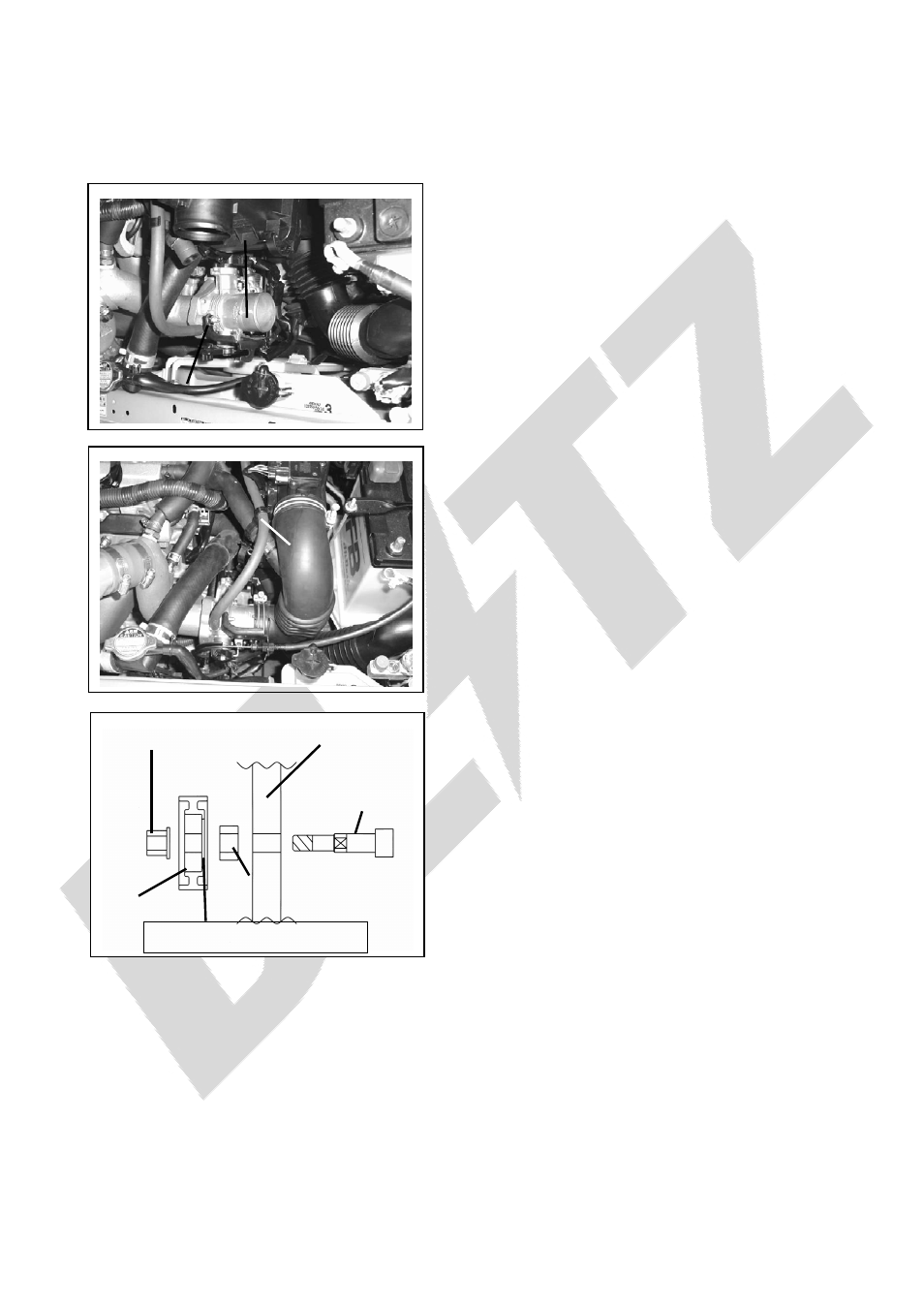

Throttle body

Throttle cable

bracket

31) Install throttle body and the throttle cable

bracket by inserting the 21.Trhottle Body
Gasket.

※

Use the genuine bolts and nuts.

33) Install temporarily

Genuine air

Cleaner hose

the 15.Pulley w/ Ribs

using the 17.Pulley Collar B and one ⑭
Flange Nut.

※

Position the flange side of the 15. Pulley
toward the 17. Collar.

32) Install the genuine air cleaner box.

※

Use the genuine hose band.

⑭

Flange Nut

15.Pulley

17.Pulley Collar B

Flange towards the Collar

12.Tension Bolt

7.Tension

Bracket
