Page 13

5. Compressor Installation Procedure.

Caution

Appling torque.

M6 10.0N・m

M6 18.5N・m

M10 35.0N・m

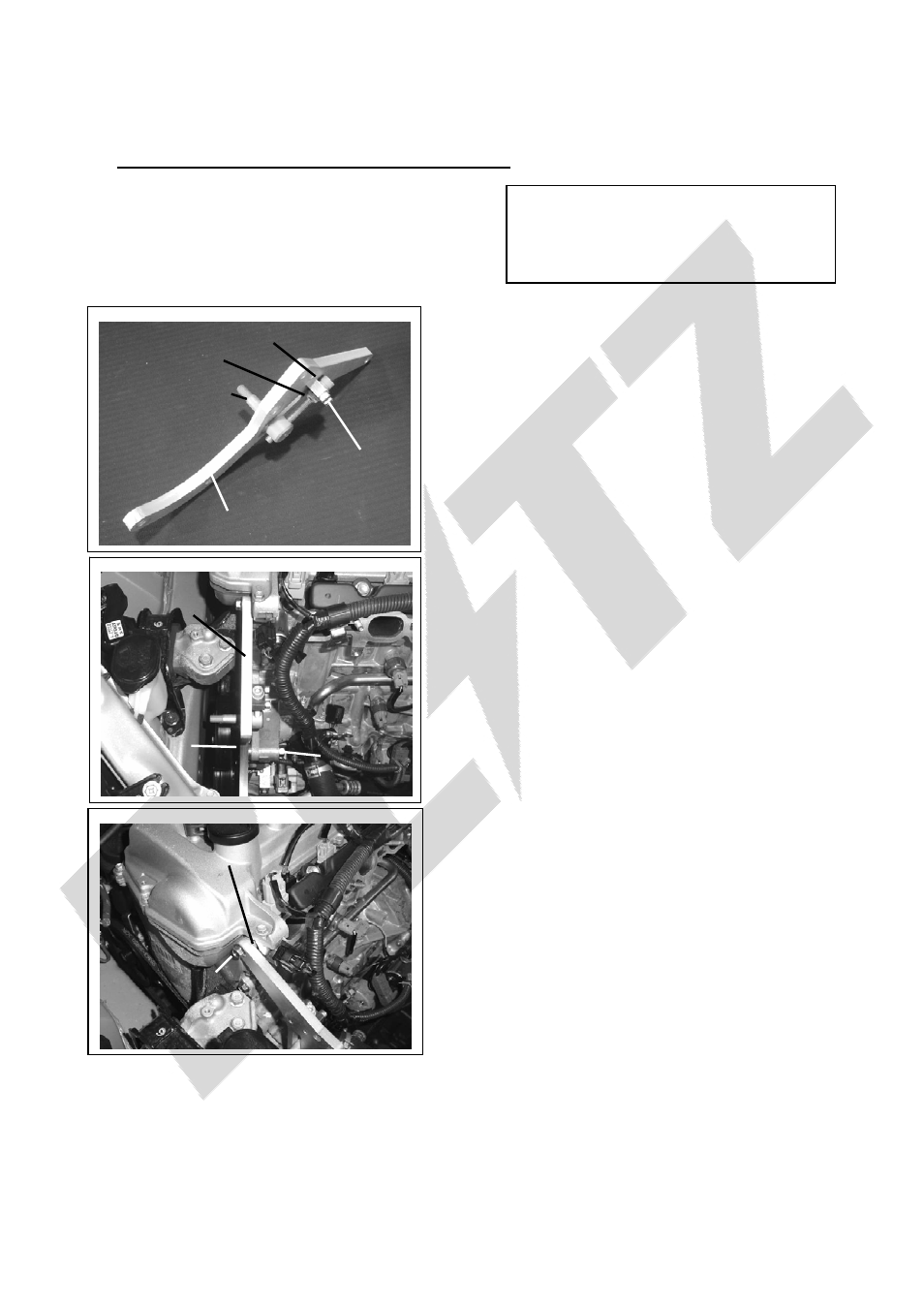

1) Install the 12.Tension Bolt; 13.Adjuster Bolt

and the 8.Tension Bracket B using the ⑨
Cap Bolts (2P) to the 7. Tension Bracket A.

2) Install temporarily the 7.Tension bracket B

using the 18.Bracket Collar; 19.Bracket
Collar B (1P); ⑤Flange Bolt (1P); ⑧Hex Bolst
(1P) and the ⑮Washer (1P).

8. Tension Bracket B

13. Adjuster Bolt

12. Tension Bolt

⑨

Cap Bolt (2P)

7. Tension Bracket A

18.Bracket Collar A

⑤

Flange Bolt

7. Tension

Bracket A

19. Bracket

Collar B

⑧

Hex Bolt

⑮

Washer
