Page 23

23
MK-170 Tile Saw MaiNTeNaNCe

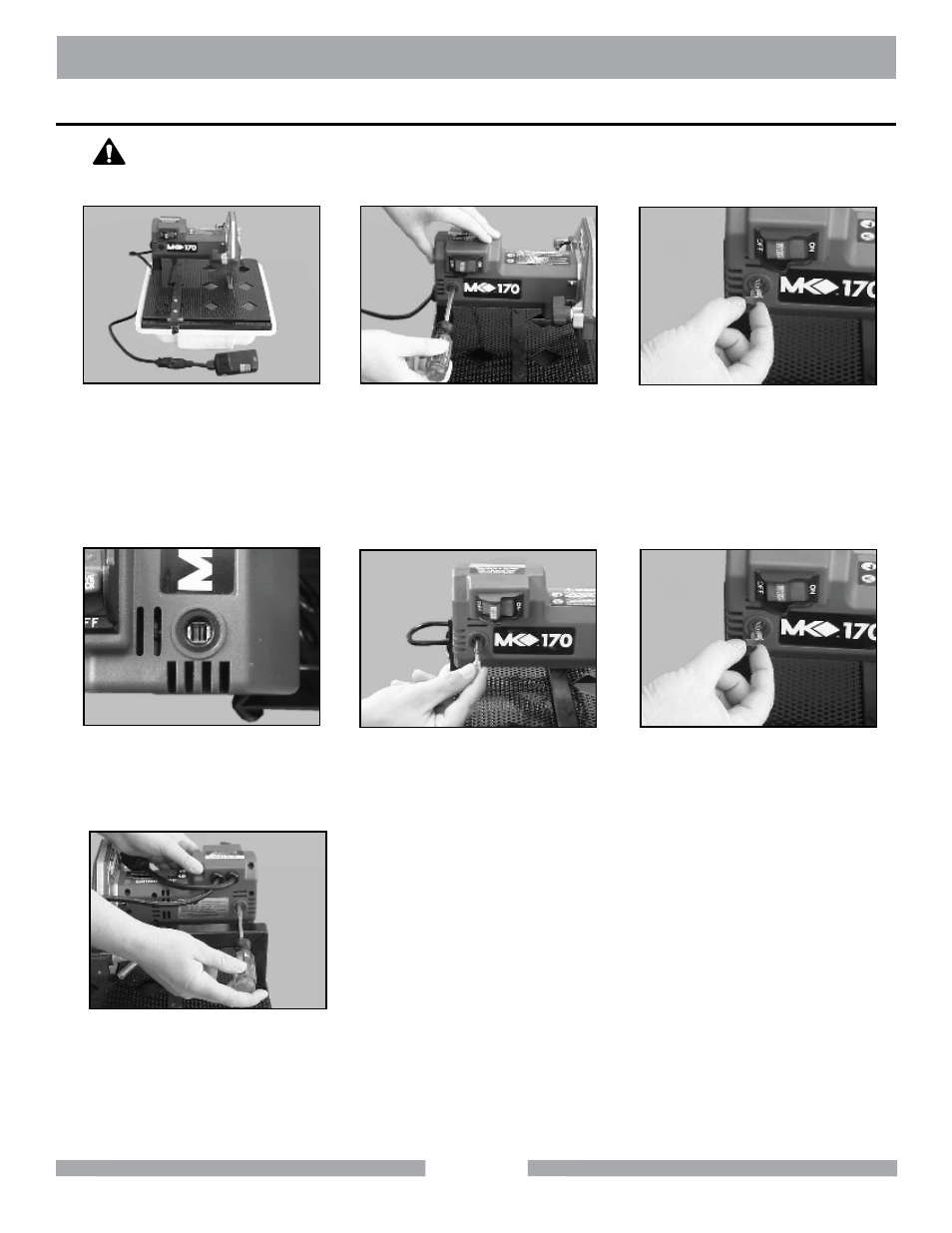

Motor Brush Change-out
Disconnect the tool before servicing and when changing accessories,
such as blades, bits, cutters, and the like.
When installing motor brushes, care must be taken to ensure the spring
end is straight before installing the Motor Brush Cap.
(A)
Disconnect the MK-170.
(F)
Install Motor Brush Cap and
tighten using a Flat Head
Screwdriver.
(B)
Locate and Remove One Motor
Brush Cap using a Flat Head
Screwdriver.
(D)
Clean the Motor Brush Housing
using a Q-tip.
(G)
Install the Second Motor Brush
(Repeat Steps B to F).
(C)
Remove Motor Brush Housing
Cover.
(E)
Align and install the new Motor
Brush.
waRNiNG
NOTe:
