MK-170 Tile Saw OPeRaTiON

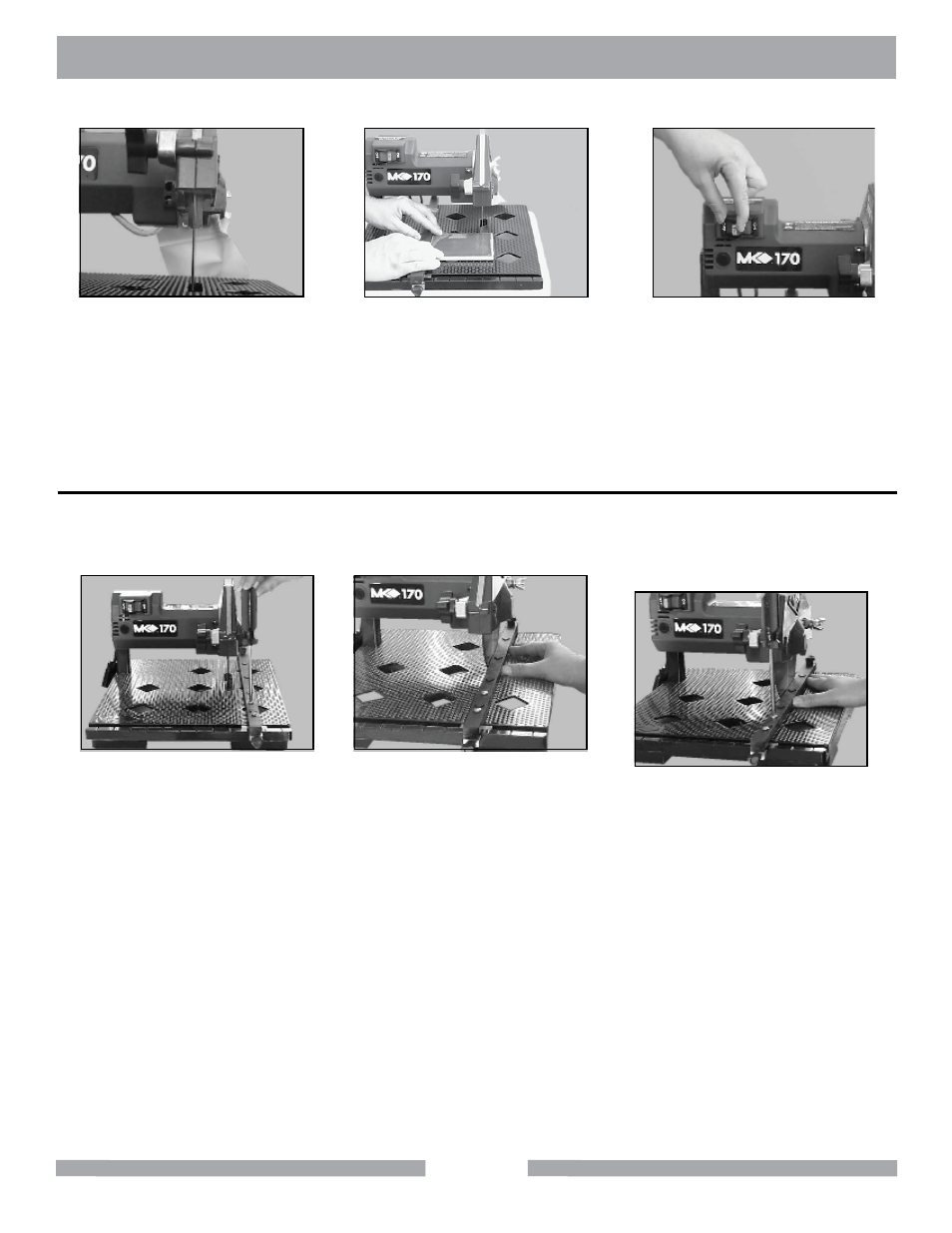

adjustable Cutting Guide alignment
If during the cutting operation it is found that Adjustable Cutting is not aligned to the Blade, perform
the following operation.
(D)
Verify cooling flow on both
sides of the blade (adjust flow if
necessary - See Maintenance
Section)
(A)
Loosen the Adjustable Cutting
Guide Alignment Screws
(E)
Push the Tile into the Blade in a
smooth even motion to perform
a cut
(B)
Gently align the Adjustable Cut-
ting Guide to the Blade
(F)
Turn the motor OFF when work
is complete
(C)
Tighten the Adjustable Cutting
Guide Alignment Screws
