15
MK-170 Tile Saw aSSeMBlY
When installing the Adjustable Cutting Guide, verify the guide is parallel to the
Diamond Blade. If alignment of the Adjustable Cutting Guide is required, see
Step 2 in the Adjustment and Operation Section of this manual.
NOTe:

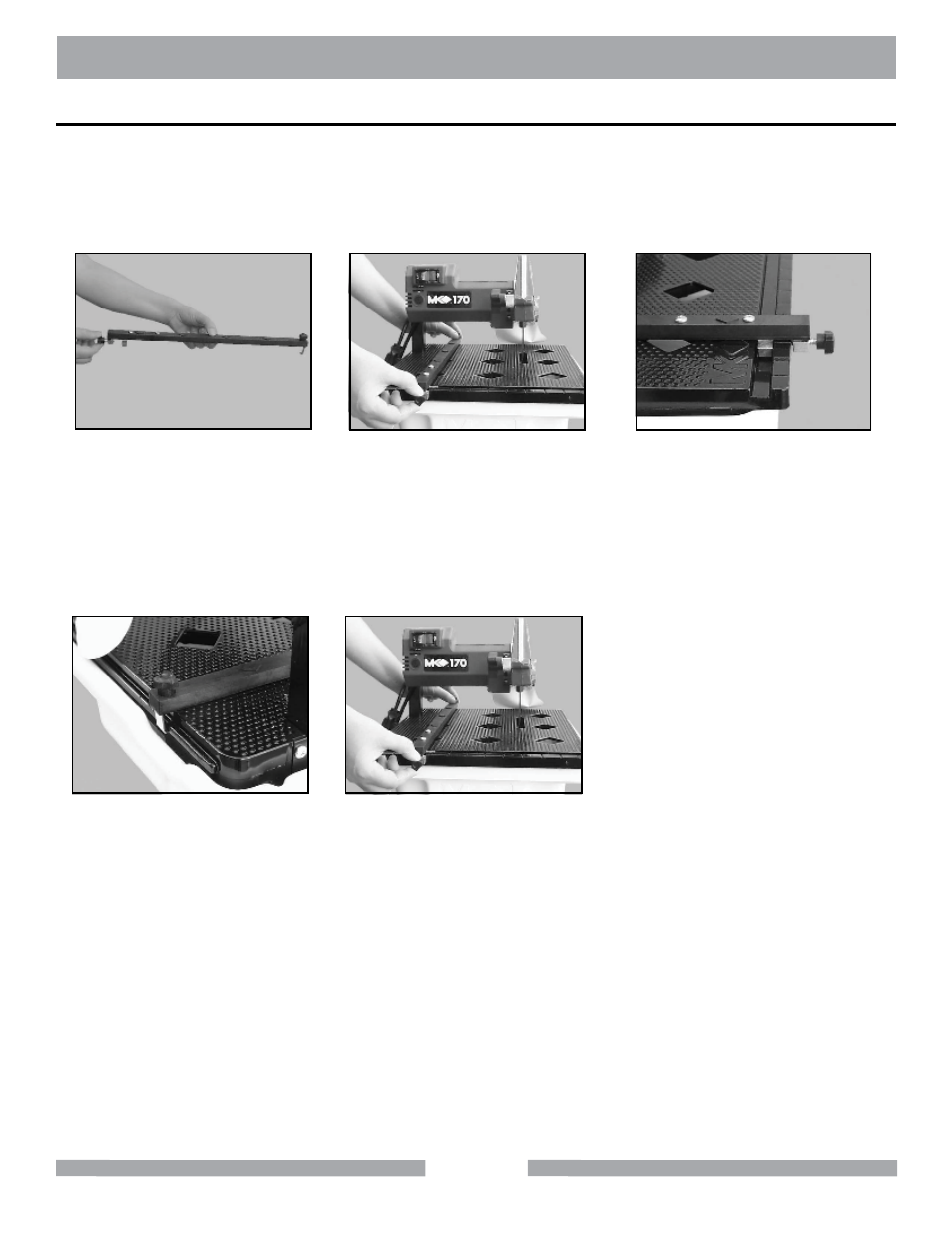

adjustable Cutting Guide installation
(A)
Loosen the Adjustable Cutting
Guide retaining thumbscrews
(D)
Verify the Rear Guide is prop-
erly seated under the rear
guide Slot
(B)
Place the adjustable Cutting
Guide onto the Cutting Table with
the Front Guide into the front
Guide Slot and the Rear Guide in
the rear Guide Slot
(E)
Tighten the Adjustable Cutting
guide retaining thumbscrews
(C)
Verify the Front guide is properly
seated in the front Guide Slot
