12 MONTH LIMITeD WARRANTy
Auto Meter Products, Inc. warrants to the consumer that all Auto Meter High Performance products will be free from defects in material and workmanship for a period of twelve (12) months from date of the
original purchase. Products that fail within this 12 month warranty period will be repaired or replaced at Auto Meter’s option to the consumer, when it is determined by Auto Meter Products, Inc. that the product
failed due to defects in material or workmanship. This warranty is limited to the repair or replacement of parts in the Auto Meter instruments. In no event shall this warranty exceed the original purchase price of
the Auto Meter instruments nor shall Auto Meter Products, Inc. be responsible for special, incidental or consequential damages or costs incurred due to the failure of this product. Warranty claims to Auto Meter
must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in
duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation, accident, water damage, abuse, unauthorized repairs or alterations voids this warranty. Auto Meter
Products, Inc. disclaims any liability for consequential damages due to breach of any written or implied warranty on all products manufactured by Auto Meter.
SeRVICe
For service send your product to Auto Meter in a well packed shipping carton. Please include a note explaining what the problem is along with your phone number. Please specify when you
need the product back. If you need it back immediately mark the outside of the box “RUSH REPAIR,” and Auto Meter will service product within two days after receiving it. ($10.00 charge will be
added to the cost of “RUSH REPAIR.”) If you are sending product back for Warranty adjustment, you must include a copy (or original) of your sales receipt from the place of purchase.
FOR SERVICE SEND TO: AUTO MeTeR PRODUCTS, INC. 413 W. Elm St., Sycamore, IL 60178 USA (815) 899-0801
Email us at [email protected]
2650-1111 4/8/05

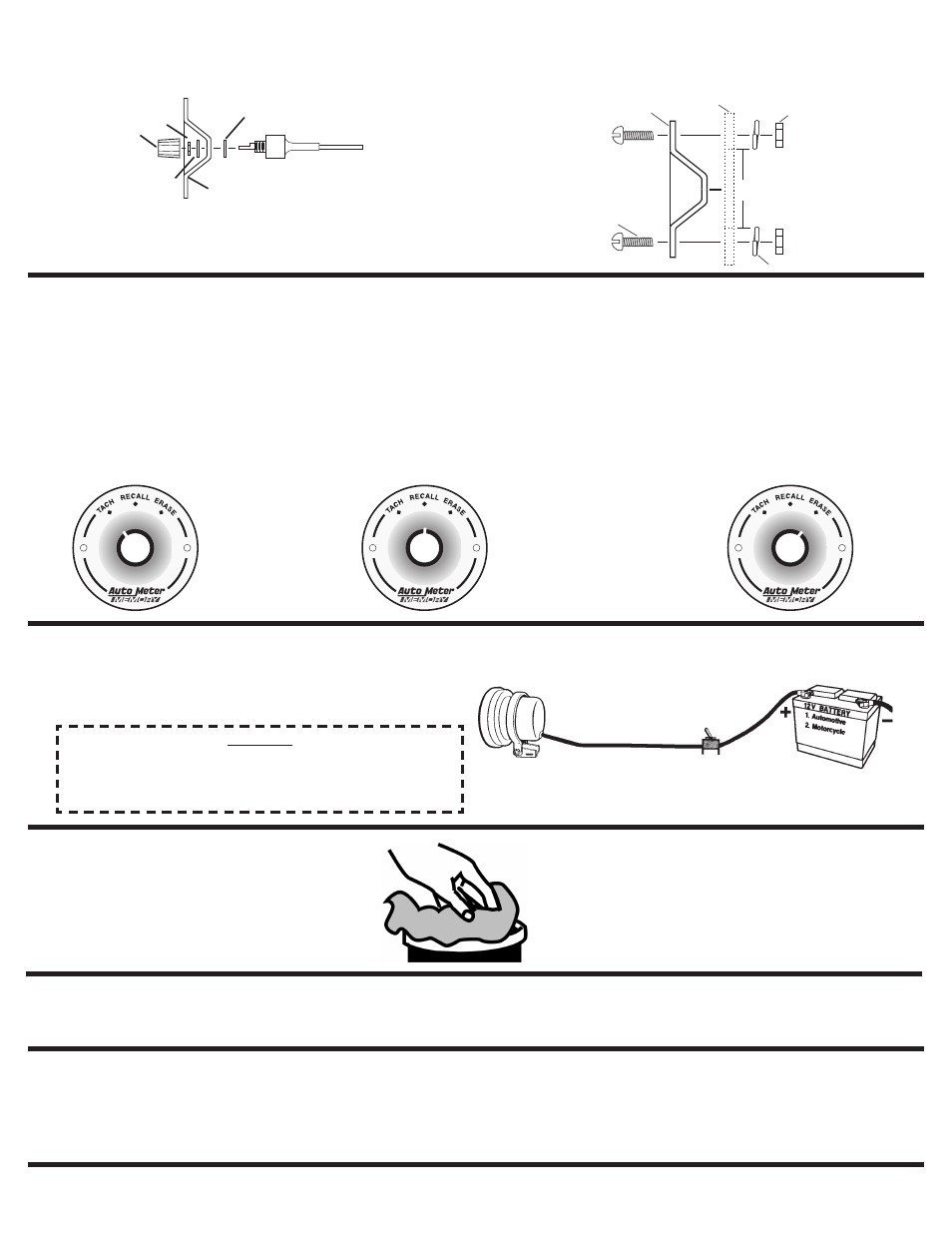

Operating Memory Feature
Powering your Tach
Lens Cleaning
Memory tachometers record the highest RPM reached
during each race. Recall your RPM using dash mounted
remote memory switch. Operate switch as shown here.
12 volt power must be supplied to the tach to maintain the memory
function. Power can come from a battery with a tach on/off switch.
The clear lens on your tachometer is made of
acrylic plastic. To prevent scratching, caution
must be used when cleaning. Use a mild soapy
solution and soft cloth to clean. Wipe lightly.
erase Memory
Switch to “eRASe” mode before each race.
This clears previous runs from the memory.
Recording will begin when switch is returned
to TACH mode.
Recall RPM
Switch to “ReCALL” to display peak RPM.
This can be done during or after a race. To clear
for next race, see Erase Memory step.
IMPORTANT: See Powering your Tach Below.
Use As Tach
Race with the switch in
“TACH” position.
The tach will function as normal
to monitor engine RPM.
Mounting Switch to Switchplate
Lockwasher
Knob
Nut
Rubber Gasket
Switchplate
Mounting Switch to Dash
Switchplate
Split Lockwasher (2)
#8-32 Nut (2)
Dash
2" or 2 1 /
16
"
Dia. Hole
#8-32 Round
Head Screw (2)
Mounting Memory Switch
CAUTION!
As a safety precaution the Red wire of this product should be fused before
connecting it to the positive (+) side of the 12V DC battery. We recommend
using a 4 Amp, 3AG fast-acting type cartridge fuse (Littlefuse® # 312 004
or an equivalent) inline with the Red wire of our product.
