Auto Meter 5683 User Manual

Power-up, Peak recall, Full dial warning

Power-Up

The pointer will move counter clockwise to the stop pin and then moves to the current gauge reading. This procedure is an auto-calibration
function and is performed on every power-up. While this test is being performed, the gauge may make a clicking sound. This is normal.

Peak Recall

Press and hold the

PEAK button to recall the highest temperature reading since the memory was last cleared. To clear the memory, press

and hold the

PEAK button, and while still holding the PEAK button, press the WARN button. The pointer will move to the stop pin to indicate

that the memory has been cleared. Release the

PEAK and WARN buttons to resume normal operation. The peak recall point is retained when

power is removed from the gauge.

Full Dial Warning

This gauge features full dial warning. When a warning point is reached, the entire dial illuminates in the programmed warning color. This feature
is available for both a high and low warning set point. In addition, the warning color will flash when an over warn point is reached.

INSTALLATION INSTRUCTIONS

ELITE SERIES

FULL SWEEP ELECTRIC VOLT METER GAUGE

2650-1410-00 Rev. A

CAUTION!

As a safety precaution, the +12V terminal

of this product should be fused before

connecting to the 12V ignition switch. We

recommend using a 1 Amp, 3AG fast-acting

type cartridge fuse (Littlefuse® # 312 001 or

an equivalent).

Installation

1. Check that you have all parts required for installation.
2. Disconnect the negative (-) battery cable.
3. Gauge mounts in a 21⁄16" hole. Use supplied

brackets and nuts to secure to dash.
4. Attach black wire from harness to good engine ground.
5. Attach red wire from harness to +12V terminal on
ignition switch or other +12V power source. Use a
switched power source.
6. Attach white wire to dash lighting or switchable
+12V light source.

7. Reconnect negative (-) battery cable.

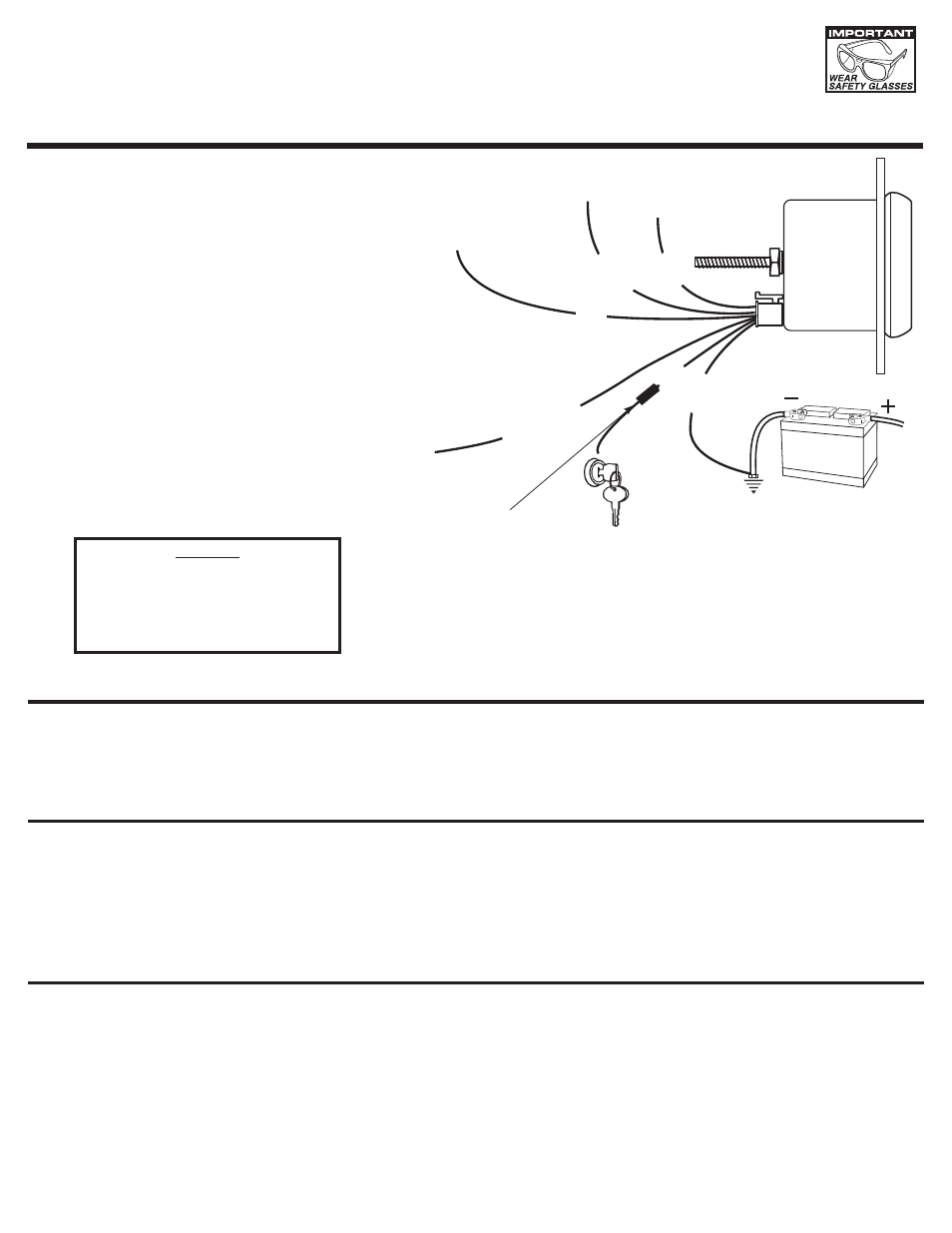

12V BATTERY

GOOD

ENGINE

GROUND

+ 12v CONNECTION

RED

BLUE

FUSE

(SEE CAUTION BELOW)

+12v DASH

ILLU

mINATION

WHITE

PRO CONTROL
LOW OUTPUT #1

PRO CONTROL
HIGH OUTPUT #2

(SEE LIGHTING mODE)

(PRO CONTROL GROUND)

DATA LOGGER

GROUND

ORANGE

BLA
