Auto Meter 6393 - Manual

12V BATTERY
INSTALLATION INSTRUCTIONS
DIGITAL VOLT METER
2650-1238-00

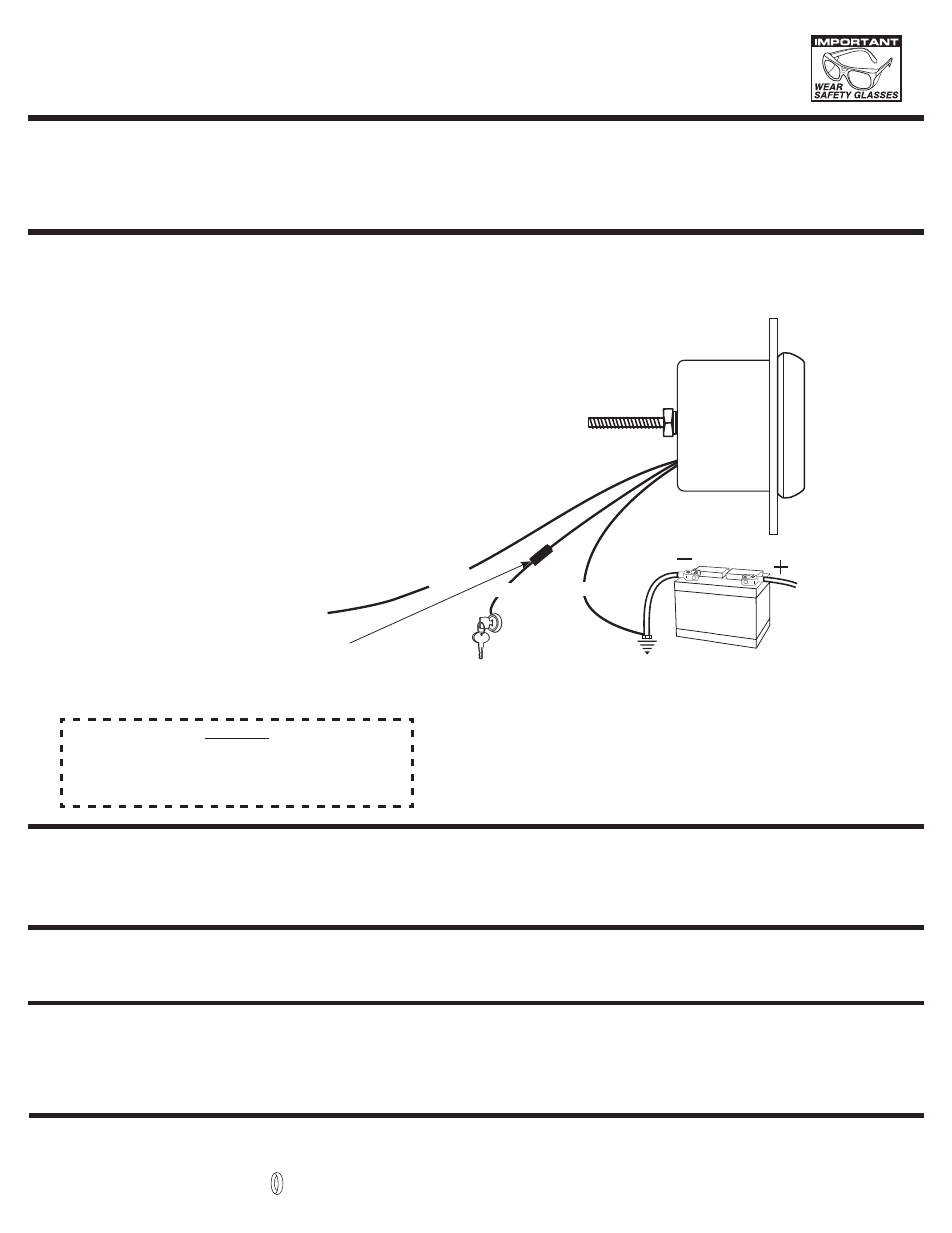

GOOD
ENGINE
GROUND
+ 12V
CONNECTION
RED BLACK WHITE
Power-Up
CAUTION!
As a safety precaution, the +12V terminal of this product
should be fused before connecting to the 12V ignition
switch. We recommend using a 1 Amp, 3AG fast-acting type
cartridge fuse (Littlefuse® # 312 001 or an equivalent).
Installation
1. Check that you have all parts required for installation.
2. Disconnect the negative (-) battery cable.
3. Gauge mounts in a 2
1 ⁄
16
” hole. Use supplied brackets and nuts
to secure to dash.
4. Attach black wire from harness to good engine ground.
5. Attach red wire from harness to +12V terminal on ignition switch
or other +12V power source. Use a switched power source.
6. Attach white wire to dash lighting or switchable +12V light source.
Digital display will dim when power is applied.
7. Reconnect negative (-) battery cable.
FUSE
(SEE CAUTION BELOW)
12 MONTH LIMITED WARRANTY
Auto Meter Products, Inc. warrants to the consumer that all Auto Meter High Performance products will be free from defects in material and workmanship for a period of twelve (12) months from date of the
original purchase. Products that fail within this 12 month warranty period will be repaired or replaced at Auto Meter’s option to the consumer, when it is determined by Auto Meter Products, Inc. that the product
failed due to defects in material or workmanship. This warranty is limited to the repair or replacement of parts in the Auto Meter instruments. In no event shall this warranty exceed the original purchase price of
the Auto Meter instruments nor shall Auto Meter Products, Inc. be responsible for special, incidental or consequential damages or costs incurred due to the failure of this product. Warranty claims to Auto Meter
must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in
duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation, accident, water damage, abuse, unauthorized repairs or alterations voids this warranty. Auto Meter
Products, Inc. disclaims any liability for consequential damages due to breach of any written or implied warranty on all products manufactured by Auto Meter.
SERVICE
For service send your product to Auto Meter in a well packed shipping carton. Please include a note explaining what the problem is along with your phone number. Please specify when you
need the product back. If you need it back immediately mark the outside of the box “RUSH REPAIR,” and Auto Meter will service product within two days after receiving it. ($10.00 charge will be
added to the cost of “RUSH REPAIR.”) If you are sending product back for Warranty adjustment, you must include a copy (or original) of your sales receipt from the place of purchase.
FOR SERVICE SEND TO: AUTO METER PRODUCTS, INC. 413 W. Elm St., Sycamore, IL 60178 USA (815) 899-0801
Email us at [email protected]
http://www.autometer.com
2650-1238-00 5/17/07
+12V DASH
© 2007 Auto Meter Products, Inc
The Super Bezel is a registered trademark of Auto Meter Products, Inc.
DO NOT HOOK TO
ALTERNATOR
QUESTIONS ?
If after completely reading these instructions you have questions regarding the operation or installation of your instrument(s),
please contact Auto Meter Technical Service at 815-899-0801.
You may also email us at [email protected].
Additional information can also be found at http://www.autometer.com
When power is applied to the gauge, the display will light up with all eights immediately followed by the gauge firmware version. After
the firmware version is momentarily displayed, the gauge will begin normal operation and display real time sender readings.
