Introduction To Tach Set-Up
1. The Pro-Stock Tach uses a menu system for configuration.
Use the arrows ( ) to scroll up and down the menu.
When you reach the bottom or top of the menu you will
automatically jump to the other end of the menu.
2. To select a menu option press the ENTER button. If at
any time you want to exit the menu you are currently
in, press the CANCEL button. This will take you back to
the TACH display and will not store the entries you have
made.
3. Press the ENTER key to store the settings you have
entered. After pressing ENTER, the only way to return
to the original settings is to return to step 1 and reset as
needed.

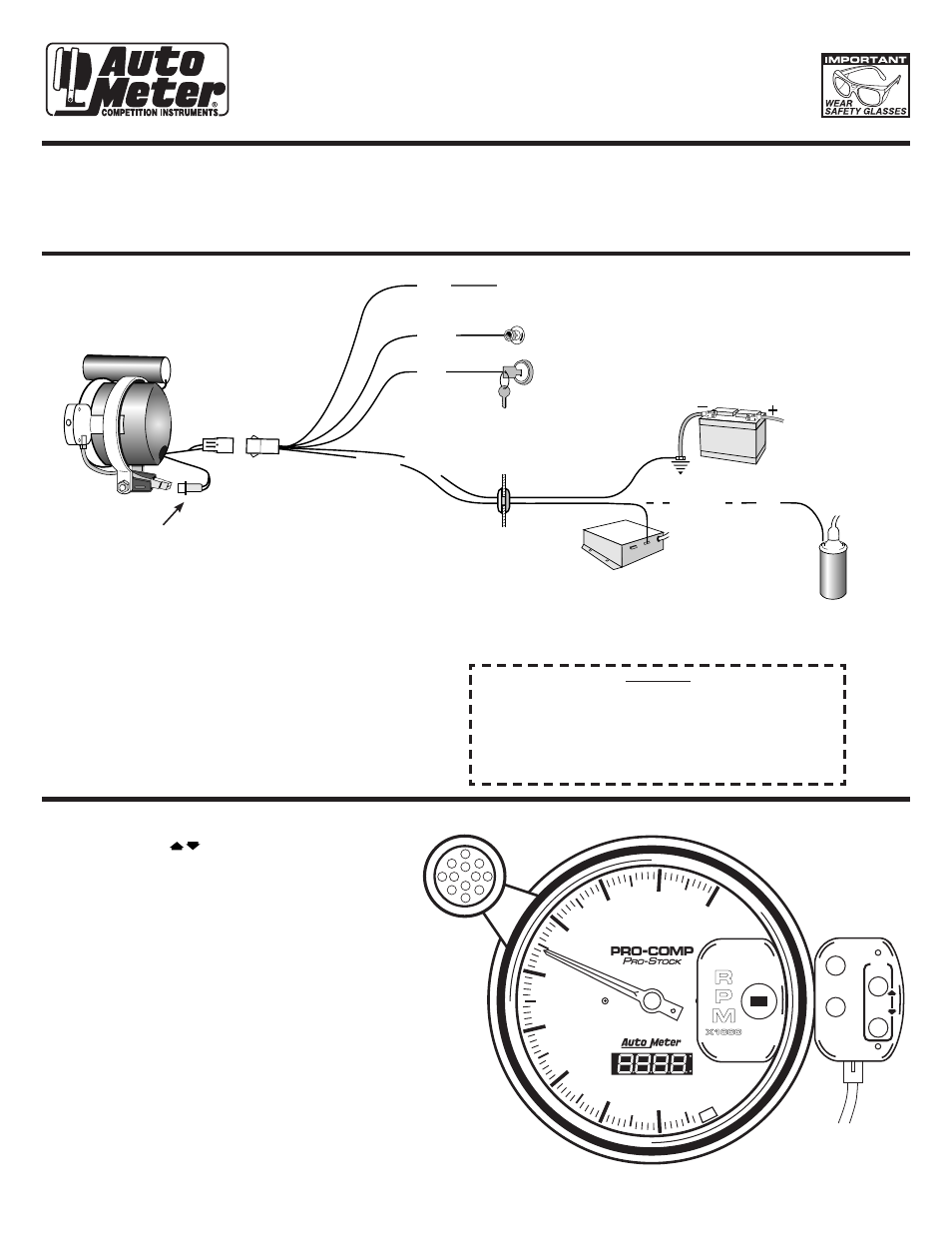

INSTALLATION INSTRUCTIONS
5” pRO-COmp pRO-STOCk TACh
2650-859F
COIL
12V BATTERY
White
Blue
Green
Good Engine Ground
OR
NOTE: This tachometer operates on standard, factory
electronic and high performance electronic
racing ignitions, such as Crane and MSD. (This
tach is NOT recommended for use on Accel’s
BEI or Laser I & II ignitions. These ignitions
require model 5215 adapter.)
NOTE: With power off the tach pointer may not always
rest at zero. This is a natural characteristic of the
High Performance air-core meter movement used
in this tachometer. When the engine is started,
the pointer will position on the correct RPM.
NOTE: The Blue wire is used to start
the setpoint change delay and
the sequence of four shift points.
(Momentary 12 volts will activate
the delay and shift sequence.)
12V Dash Lighting
Clutch Switch or
+12V Line Lock Switch
12V Ignition Switch (+) Red
Grommet in
Firewall
Standard ignition:
GREEN wire
attaches to coil
negative (-).
Shift-Lite connector must be plugged
in prior to operation. It has been left
disconnected for shipping purposes.
* Electronic Ignition (Such
as GM, HEI or MSD):
connect to tach terminal.
Black
Green
Wiring
P1
P3
P2
NOTE: The included 12 LED Shift-Lite has 3 intensity
settings. The switch in the back of the Shift-Lite will
select the intensity of the Shift-Lite. The intensities
are as follows;
HI - Very Bright - For use on a bright sunny day
MED - Bright - For use on a cloudy or over cast day
LOW - Dim - For use at night
WARNING
Warranty will be void if connected to coil when using
an aftermarket ignition box such as, but not limited to
products from the following manufacturers: MSD, Crane,
Jacobs, Mallory, Holley, Etc.. Prior to installation of your
tachometer, check with the ignition box manufacturer for
recommended tachometer signal location.
QUESTIONS
:
If after completely reading these instructions you have questions regarding the operation or installation of your instrument(s),
please contact Auto Meter Technical Service at 815-899-0801.
You may also email us at [email protected].
Additional information can also be found at http://www.autometer.com/tech_faq.aspx
9
8
7
6
5
4
3
2 0
1
MAD
EIN
US
A
C
O PY
R
IG
HT
PA
TE
NT
PE
ND
ING
AUTO
METERPR
ODUCTS, INC. SYCA MOR
E, IL
US A
R
P
M
X1000
• CANCEL
MENU
SELECT
• ENTER
