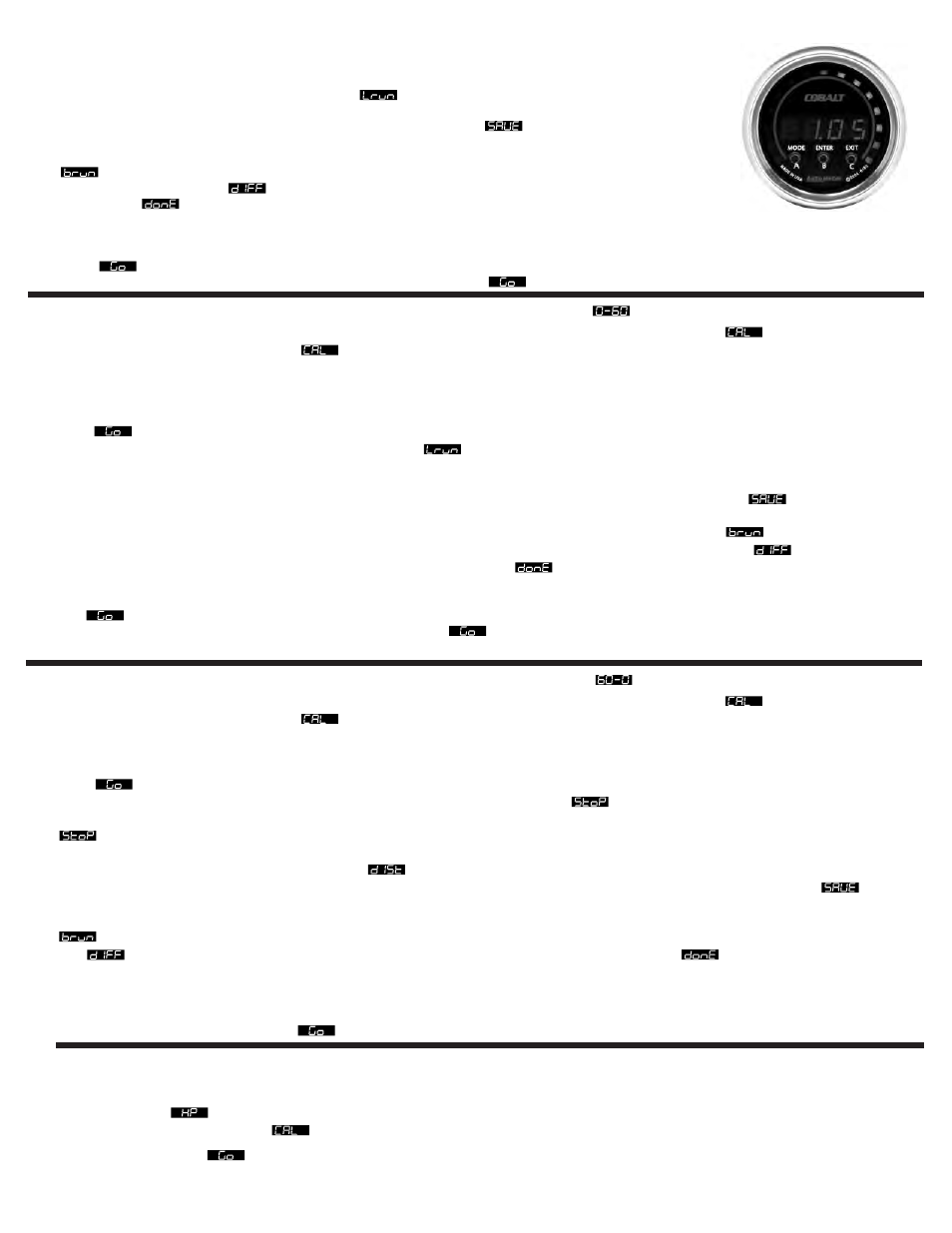

followed by your mile per hour at the end of the 1/4 mile. At this point, safely bring your vehicle to a controlled stop
to check your results.
Gauge will display results once and then display and flash LED bar graph. To review your results again,
press the B button and the gauge will display your reaction time, elapsed time, 1/4 mile speed, and peak G’s. To
save your results as your new Best, press the A button once to display
, then press the B button to confirm.
Note: Saving a run as your new Best run will overwrite (erase) your previous best run. D-PIC will automatically
save/overwrite your last run file each time you make a new pass. To view your best run, press the A button until
is displayed and then press the B button to view. To view the difference between your last run and your best
run, press the A button until is displayed and then press enter to view. To exit to Real Time mode, press the
A button until is displayed then press the B button to confirm, or just press EXIT button.
You may view results at any time by entering 1/4 Mile Mode and then pressing the C button to display results.
When is displayed1/4 mile mode may be exited prior to beginning acceleration by pressing the EXIT button. 1/4 mile mode will time out
and return to Real Time mode if acceleration is not started 1 minute after is displayed.
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!! DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
B.) 0-60 MPH Mode
– To select 0-60 MPH Mode, press the Mode button until is displayed. Make sure the vehicle is at a
complete stop at the beginning of your course, and then press the ENTER button to confirm. Display will show to indicate mode has
been entered. Do not move vehicle while is displayed or you will obtain false readings.
During 0-60 MPH mode, D-PIC will determine your vehicle’s 0-60 MPH acceleration time in seconds and also G-force. You will need to
accelerate your vehicle from 0 to 60 MPH for D-PIC to make these calculations.
Once is displayed and LED bar lit, accelerate your vehicle to 60 MPH. During acceleration, D-PIC will display increasing MPH. When 60
MPH has been reached, gauge will flash LED bar and display . At this time, bring your vehicle to a stop in a controlled fashion for D-PIC
to view your results.
To view your results, press the B button. To save your results as your new Best, press the A button once to display , then press the B
button to confirm. Note: Saving a run as your new Best run will overwrite (erase) your previous best run. D-PIC will automatically
save/overwrite your last run file each time you make a new pass. To view your best run, press the A button until
is displayed and then
press the B button to view. To view the difference between your last run and your best run, press the A button until is displayed and
then press enter to view. To exit to Real Time mode, press the A button until is displayed, then press the B button to confirm, or press
the EXIT button.
You may view results at any time by entering 0-60 Mode and then pressing the C button to display results.
When is displayed 0-60 mode may be exited prior to beginning acceleration by pressing the EXIT button. 0-60 mode will time out and
return to Real Time mode if acceleration is not started 1 minute after is displayed.
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
OT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTR
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTION
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTR
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTION
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
C.) 60-0 MPH Mode
– To select 60-0 MPH Mode, press the MODE button until is displayed. Make sure the vehicle is at a
complete stop at the beginning of your course, and then press the ENTER button to confirm. Display will show to indicate mode has
been entered. Do not move vehicle while is displayed or you will obtain false readings.
During 60-0 MPH mode, D-PIC will determine your vehicle’s 60-0 MPH braking distance in feet. You will need to accelerate your vehicle from 0
to 60 MPH and then safely bring your vehicle to a stop for D-PIC to make these calculations.
Once is displayed and LED bar lit, accelerate your vehicle to 60 MPH. During acceleration, D-PIC will display increasing MPH. When
slightly more than 60 MPH has been reached, gauge will flash LED bar and display . At this time, bring your vehicle to 0 MPH in a
controlled fashion for D-PIC to calculate your braking distance. Note: You must reach or exceed 60 MPH, stopping the vehicle before
is displayed on the D-PIC will cause no results to be calculated and displayed.
When 0 MPH has been reached, D-PIC will display followed by your results for 60-0 MPH braking distance. The result is displayed in
feet. To view your results again, press the B button. To save your results as your new Best, press the A button once to display , then
press the B button to confirm. Note: Saving a run as your new Best run will overwrite (erase) your previous best run. D-PIC will
automatically save/overwrite your last run file each time you make a new pass. To view your best run, repeatedly press the A button until
is displayed and then press the B button to view. To view the difference between your last run and your best run, press the A button
until is displayed and then press enter to view. To exit to Real Time mode, press the A button until is displayed then press the B
button to confirm, or just press the EXIT button.
You may view results at any time by entering 60-0 Mode and then pressing the C button to display results.
60-0 mode may be exited prior to beginning acceleration by pressing the EXIT button. 60-0 mode will time out and return to Real Time mode if
acceleration is not started 1 minute after
is displayed.
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WIL
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTION
DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
D.) Horsepower Mode
– Note: In order to obtain the most accurate numbers possible from this mode it will be necessary to
input precise vehicle weight with driver under the Vehicle Weight section under Set Up mode. Failure to enter a correct vehicle
weight will result in false calculations, see Vehicle Weight under Set Up for more information. To select Horse Power Mode, press the
MODE button until
is displayed. Make sure the vehicle is at a complete stop at the beginning of your course, and then press the ENTER
button to confirm. Display will show to indicate mode has been entered.
When the display reads lightly accelerate your vehicle through first gear. Shift smoothly between gears at approximately halfway to
redline. When you have reached 2nd gear (ideally starting at about 2k RPM), accelerate under full throttle up to but not exceeding your
vehicle’s engine redline. Once redline has been reached in 2nd gear let off the accelerator and safely bring the vehicle to a stop to view your DO NOT MOVE THE ABOVE ART OR YOU WILL RUIN THE DPIC INSTRUCTIONS!!!!
