Auto Meter 1715 - Manual (Page 2)

FOR SERVICE CONTACT: AUTO METER PRODUCTS Inc. 413 W. Elm St., Sycamore, IL 60178 USA (815)899-0801 or
Email us at [email protected]
12 MONTH LIMITeD WARRANTY
The manufacturer warrants to the consumer that this product will be free from defects in materials and workmanship for a period of twelve (12) months from the date of the original purchase. Products
that fail within this 12 month warranty period will be repaired or replaced at the manufacturer’s option to the consumer, when determined by the manufacturer that the product failed because of defects
in material or workmanship. This warranty is limited to the repair or replacement of parts in the instrument and the necessary labor done by the manufacturer to affect the repair or replacement of the
instrument. In no event shall this warranty exceed the original purchase price of the instrument, nor shall the manufacturer be responsible for special, incidental or consequential damages or costs
incurred due to failure of this product. Warranty claims to the manufacturer must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies only to the original
purchaser of product and is non-transferable. All implied warranties shall be limited in duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation, accident,
water damage, abuse, unauthorized repairs or alterations voids this warranty. The manufacturer disclaims any liability for consequential damages due to breach of any written or implied warranty on all
products made by the manufacturer.

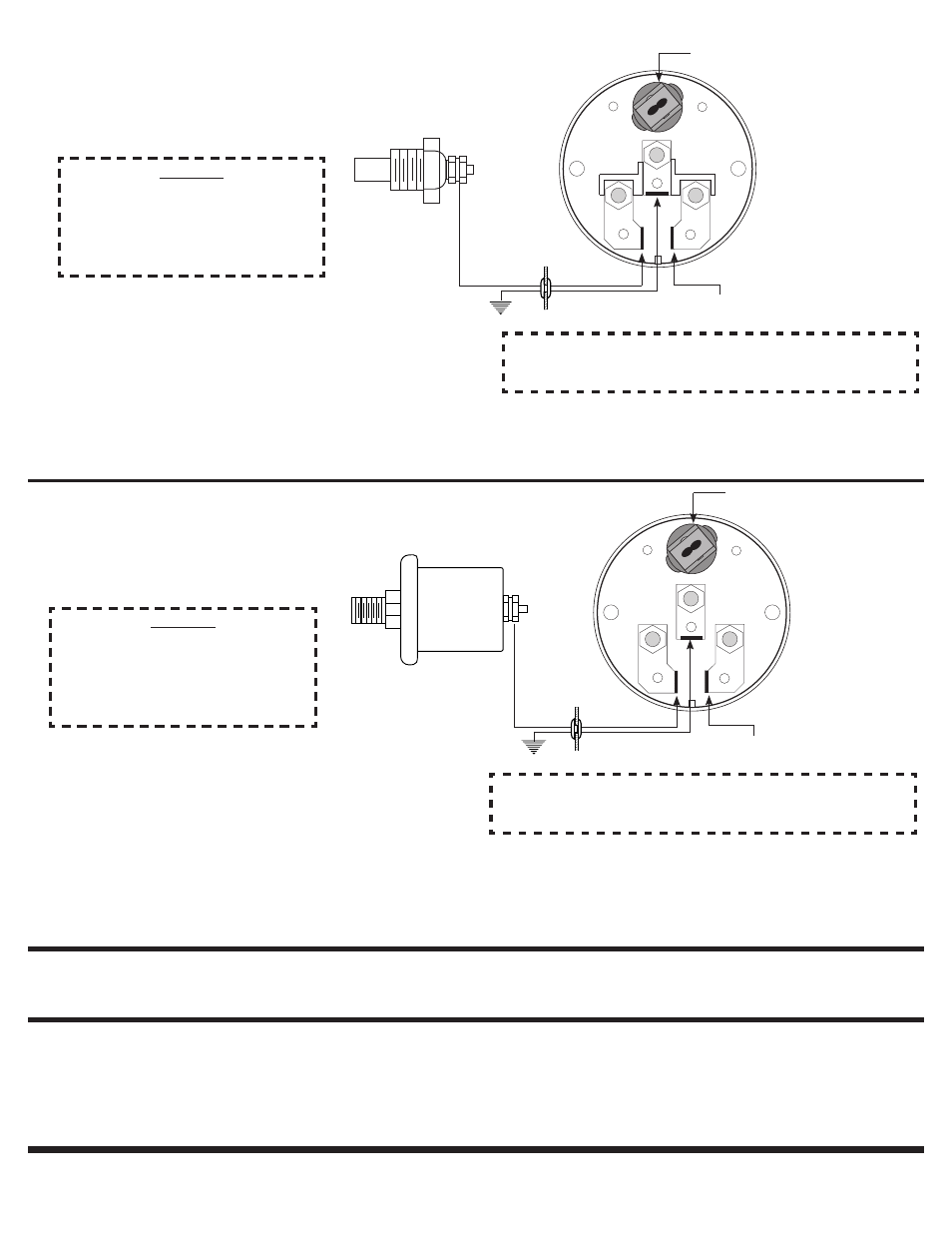

GND
S I
1. Disconnect negative (-) battery cable.
2. Install water temperature sender. Remove stock sender for water
temperature indicator light and install new sender.
3. Route 18 gauge twin conductor wire through firewall using grommet.
Connect one end to terminal post on sender and opposite end to the
sender (S) terminal spade on back of gauge. See illustration above.
4. Connect wire from center terminal spade GND (-) on back of gauge to
a good engine ground.
5. Connect a wire from the ignition switch to the ignition ( I ) terminal
spade on back of gauge. See illustration above.
1. Disconnect negative (-) battery cable.
2. Remove stock sender for dash warning light and install gauge
adapter. Sender fits 1 ⁄
8
" NPT and comes with 1 ⁄
4
" NPT adapter. Sender
should automatically be grounded when installed. If not, proper
ground connections should be made.
3. Route 18 gauge twin conductor wire through firewall using grommet.
Connect one end to terminal post on pressure sender, and opposite
end to the sender (S) terminal spade on back of gauge. See illustra-
tion above.
4. Connect wire from center terminal spade GND (-) on back of gauge to
engine ground near sender.
5. Connect a wire from the ignition switch to the ignition ( I ) terminal
spade on back of gauge.
6. Install light in back of gauge and connect one wire to dash lighting
circuit or to other 12V power source and connect other wire to (-)
negative ground.
7. Reconnect negative (-) battery cable.
6. Install light in back of gauge and connect one wire to dash lighting
circuit or to other 12V power source and connect other wire to (-)
negative ground.
7. Reconnect negative (-) battery cable.
Oil Pressure
Water Temperature
Grommet
Grommet
TeMPeRATURe SeNDeR
PReSSURe
SeNDeR
No. 2242 for Domestic
Cars with 1/8" NPT
Outlet. Ford uses 1/4"
NPT Adapter included.
Twist-In Light
gAUge
(back view)
To ignition switch
Ground
GND
S I
Twist-In Light
gAUge
(back view)
To ignition switch
Ground
CAUTION!
As a safety precaution the Red wire of this product
should be fused before connecting it to the positive
(+) side of the 12V DC battery. We recommend
using a 4 Amp, 3AG fast-acting type cartridge fuse
(Littlefuse® # 312 004 or an equivalent) inline with
the Red wire of our product.
CAUTION!
As a safety precaution the Red wire of this product
should be fused before connecting it to the positive
(+) side of the 12V DC battery. We recommend
using a 4 Amp, 3AG fast-acting type cartridge fuse
(Littlefuse® # 312 004 or an equivalent) inline with
the Red wire of our product.
SeRVICe
For service send your product to Auto Meter in a well packed shipping carton. Please include a note explaining what the problem is along with your phone number. Please specify when you
need the product back. If you need it back immediately mark the outside of the box “RUSH REPAIR,” and Auto Meter will service product within two days after receiving it. ($10.00 charge will
be added to the cost of “RUSH REPAIR.”) If you are sending product back for Warranty adjustment, you must include a copy (or original) of your sales receipt from the place of purchase.
Be careful not to touch ignition wire to the sender terminal
on back of gauge or the sender will be damaged.
CAUTION:
Be careful not to touch ignition wire to the sender terminal
on back of gauge or the sender will be damaged.
CAUTION:
© 2006 Auto Meter Products, Inc. 2650-1179 7/11/06
