Atop Industrial Wireless Access Point
AW5500
User Manual V. 1.3
11
3.4 Finding the Device
As soon as the device is connected to the network, the user can search for its IP settings using
Device View © , (utility that comes in the CD); as noted in Figure 3.5 below, important
information such as the IP, MAC address, etc is going to be displayed.

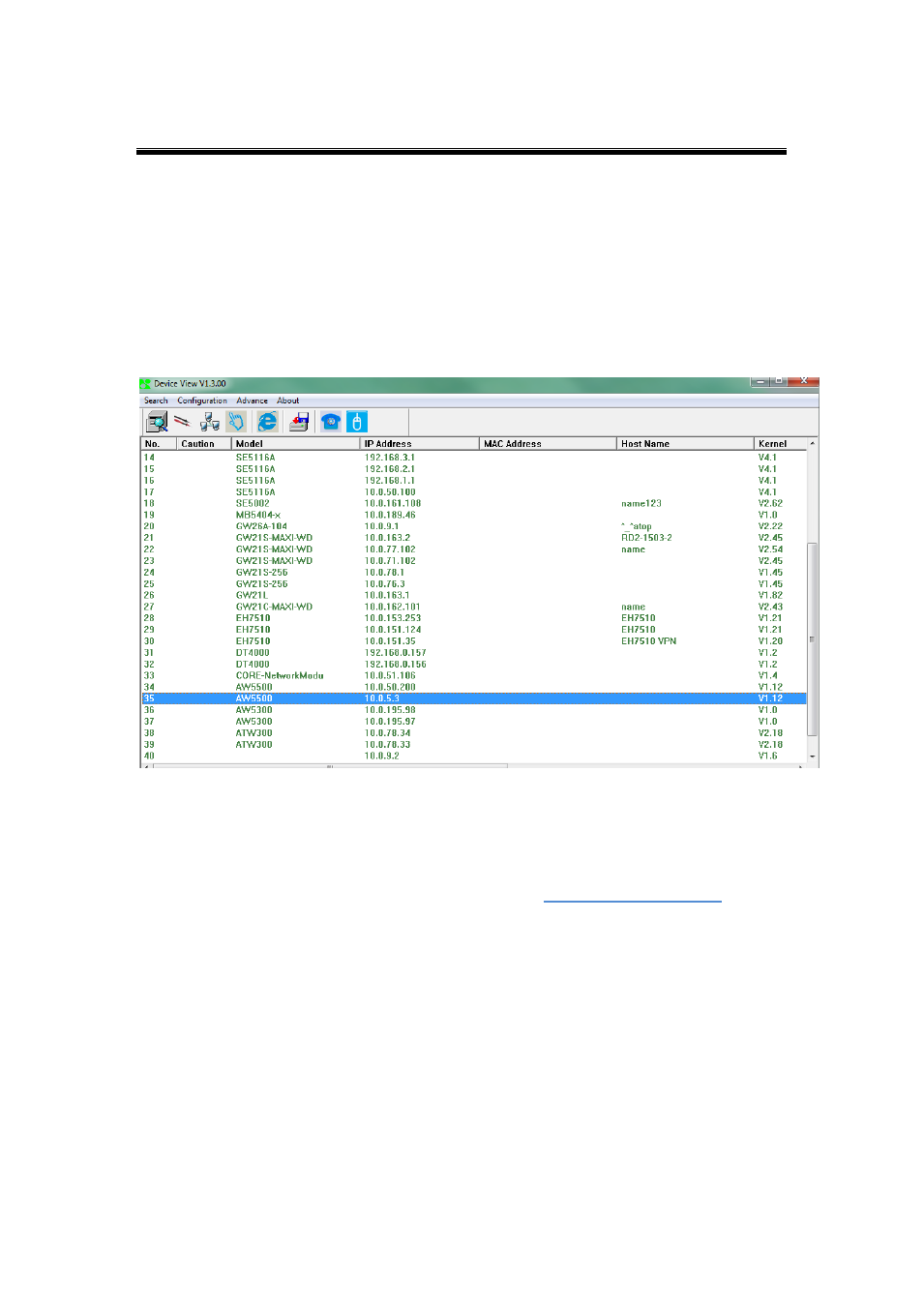

Figure 3.5
If the device’s name is double-clicked or the Internet Explorer logo is clicked, Device View
would open the Web UI of AW5500 using the system default browser. A window will pop-out
that will prompt you to enter username and password (see Factory Default Settings for more
information), proceed then to click “OK”, Figure 3.6. If credentials are entered correctly, the
Web UI can then be accessed.
