CURVE (Curve Fit)
Allows the sensor to mimic a tank strapping chart by using a 3rd degree polyno-
mial equation to produce a “curve fit” approximation.
NOTE: The 4 coefficient values must be entered using the APG Modbus soft-
ware. Refer to the instructions below to enter Curve Fit data.
Parameters:
FULL d (Full Distance)
EMPTYd (Empty Distance)

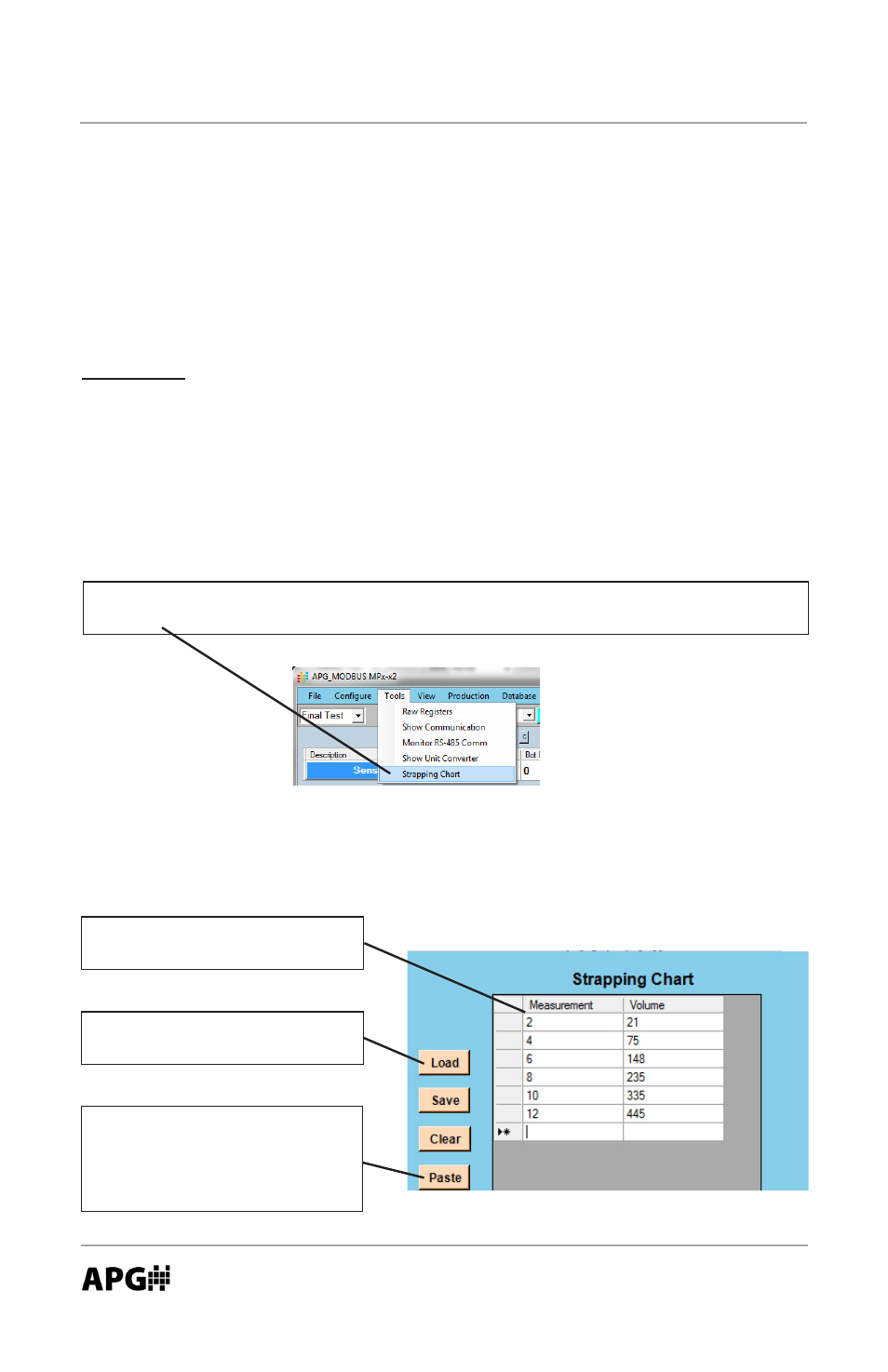

Open the APG Modbus software and select “Strapping Chart” from the “Tools”
menu.
Enter the desired data points
into the table.
Use the “Load” button to re-
call a previously saved table.
Import data from an electronic
document by copying the data
and then using the “Paste”
button to populate the table.
OR
OR
