DCR-1006A Ultrasonic Controller

23

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

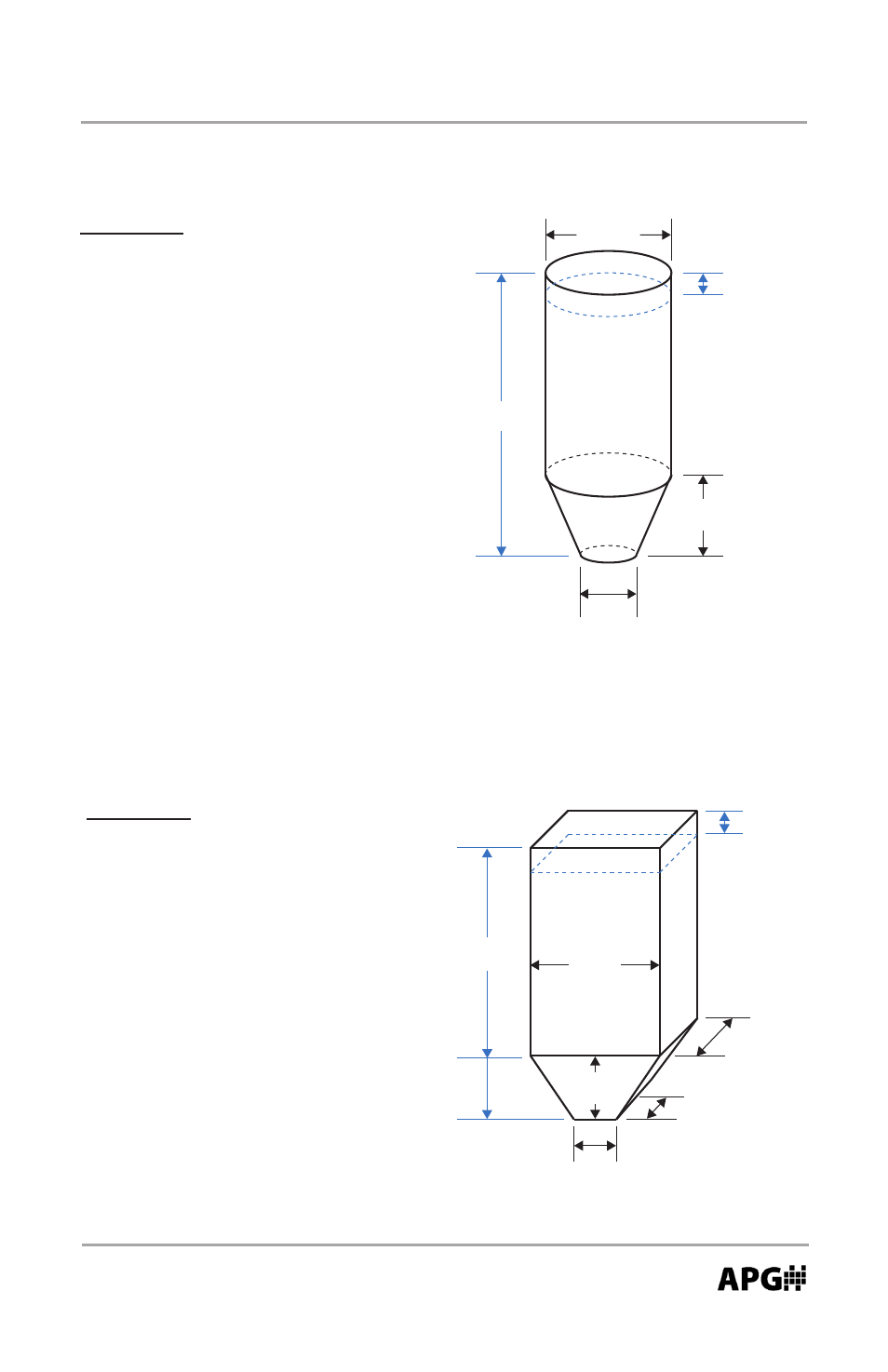

SCCbOT

(Standing Cylinder with Conical Bottom)

Parameters:
FULL d (Full Distance)

EMPTYd (Empty Distance)

dIAMET (Tank Diameter)
CONE L (Cone Length)
CONE d (Cone Diameter)

Diameter

Full

Distance

Empty

Distance

Cone

Length

Cone
Diameter

Tank X

Chute

Length

Tank Y

Empty

Distance

Full

Distance

or

Chute Y

Chute X

SRECTC

(Standing Rectangle with Chute Bottom)

Parameters:
FULL d (Full Distance)
EMPTYd (Empty Distance)

TANK X (Tank X)
TANK Y (Tank Y)
*CHUT X (Chute X)
*CHUT Y (Chute Y)
*CHUT L (Chute Length)

*set to 0 for flat bottom tanks.
