DCR-1006A Ultrasonic Controller

Rev. A1, 2/14

22

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

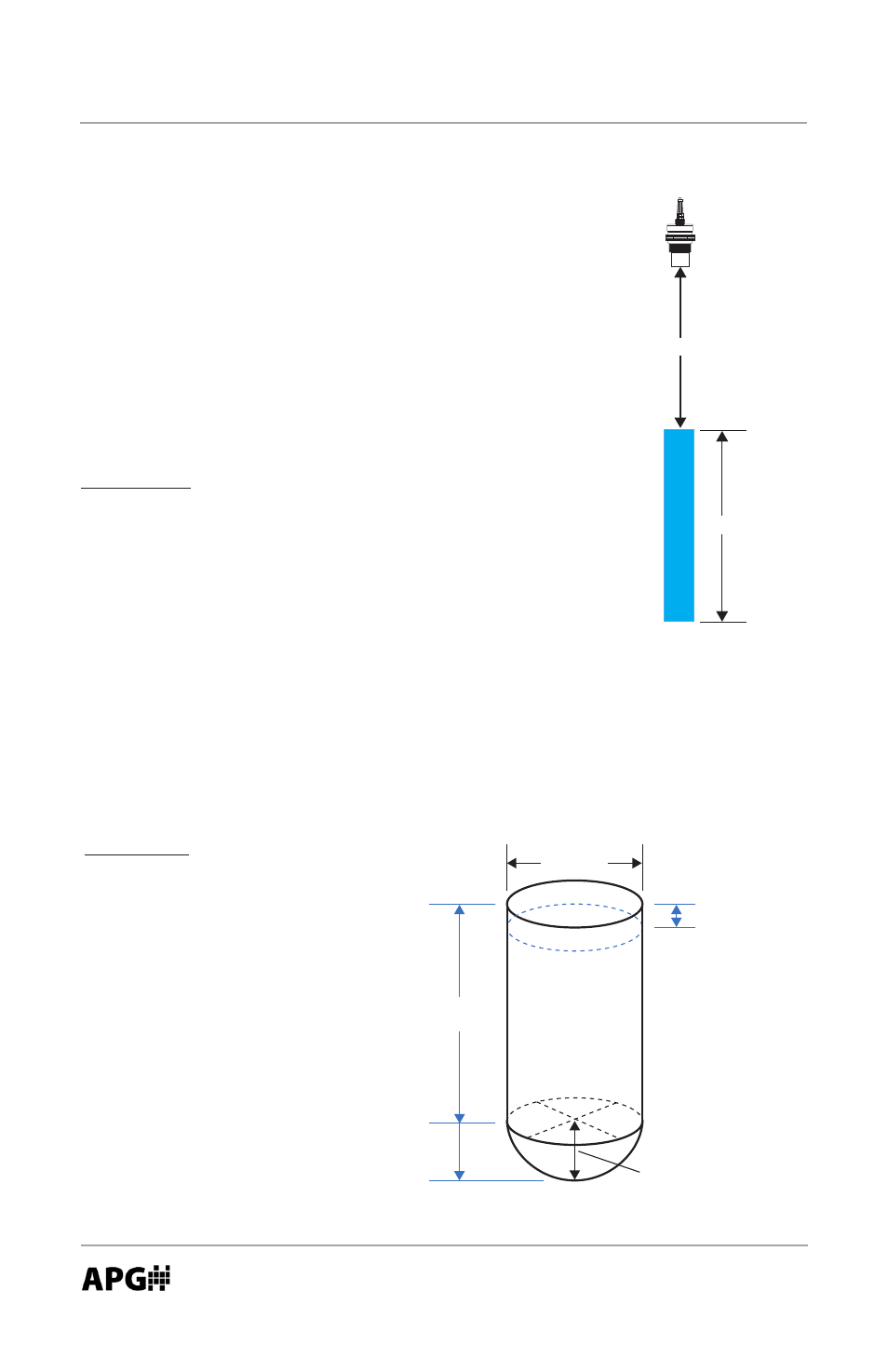

dIST

(Distance to Target)

Displays the distance to the target in the selected Units.

LEVEL

(Depth of Level)

Displays the depth of level in the selected Units.

Parameters:
FULL d (Full Distance)
EMPTYd (Empty Distance)

Distance

Level

SCHbOT

(Standing Cylinder with Hemispherical Bottom)

Parameters:
FULL d (Full Distance)

EMPTYd (Empty Distance)

dIAMET (Tank Diameter)
*bOTRAd (Bottom Radius)

*set to 0 for flat bottom tanks.

Diameter

Empty

Distance

Bottom

Radius

Full

Distance

or
