APP TY
Application Types
The DCR-1006A has 11 Application Type operating modes to convert the meas-
urement to the target into a calculated reading, such as a tank volume. Refer to
the following section for a descriptions and settings.

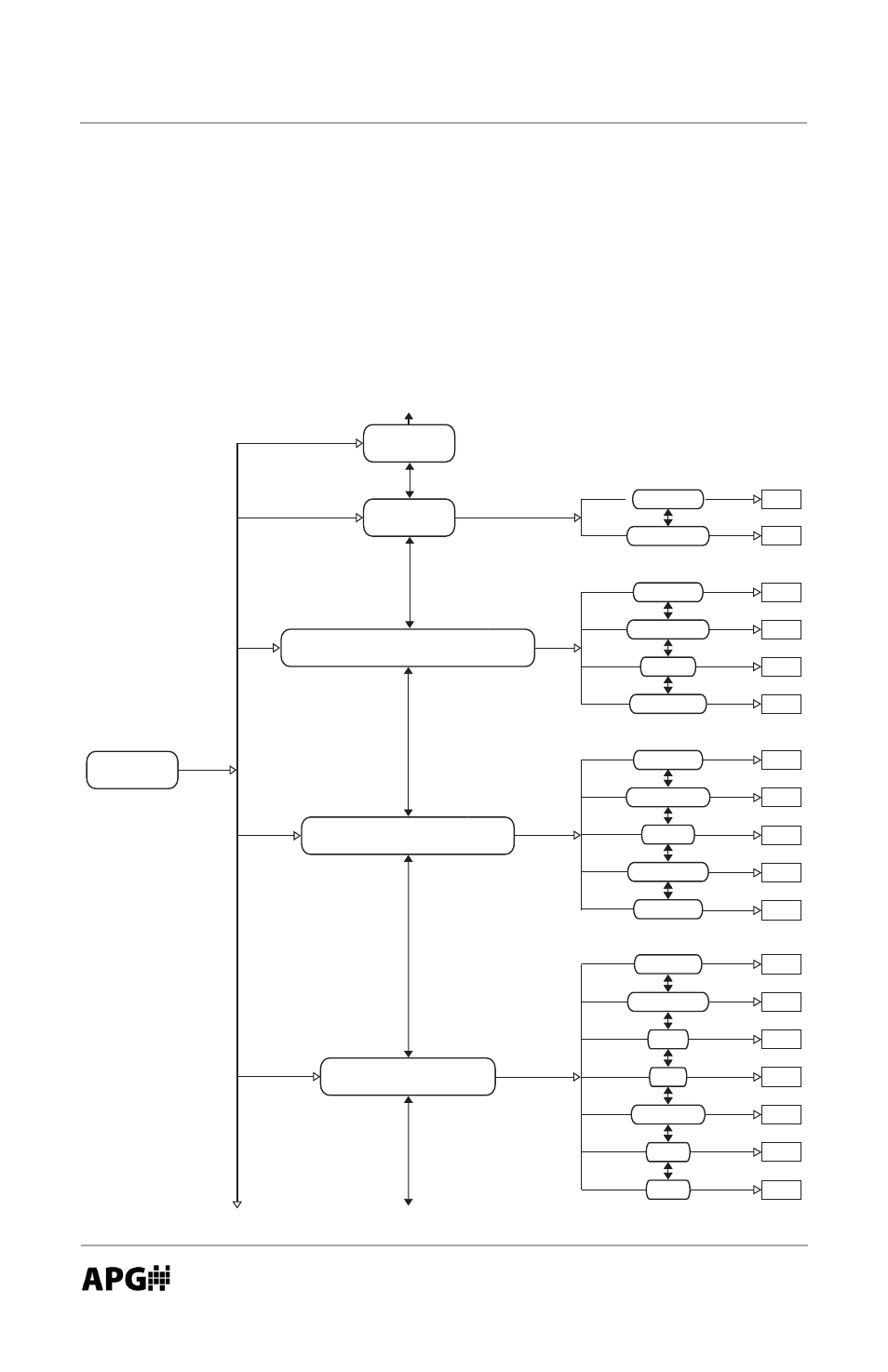

APP TY
application type
Full Distance
Empty Distance
Full Distance
Empty Distance
Diameter
Bottom Radius
Full Distance
Empty Distance
Diameter
Cone Diameter
Cone Height
Full Distance
Empty Distance
Tank X
Tank Y
Chute Length
Chute X
Chute Y
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
dIST
distance mode
LEVEL
level mode
SCHbOT
standing cylinder with hemisphereical bottom
SCCbOT
standing cylinder with conical bottom
SRECTC
rectangular with chute bottom
Note: all dimensional values must be entered in the selected Units.
