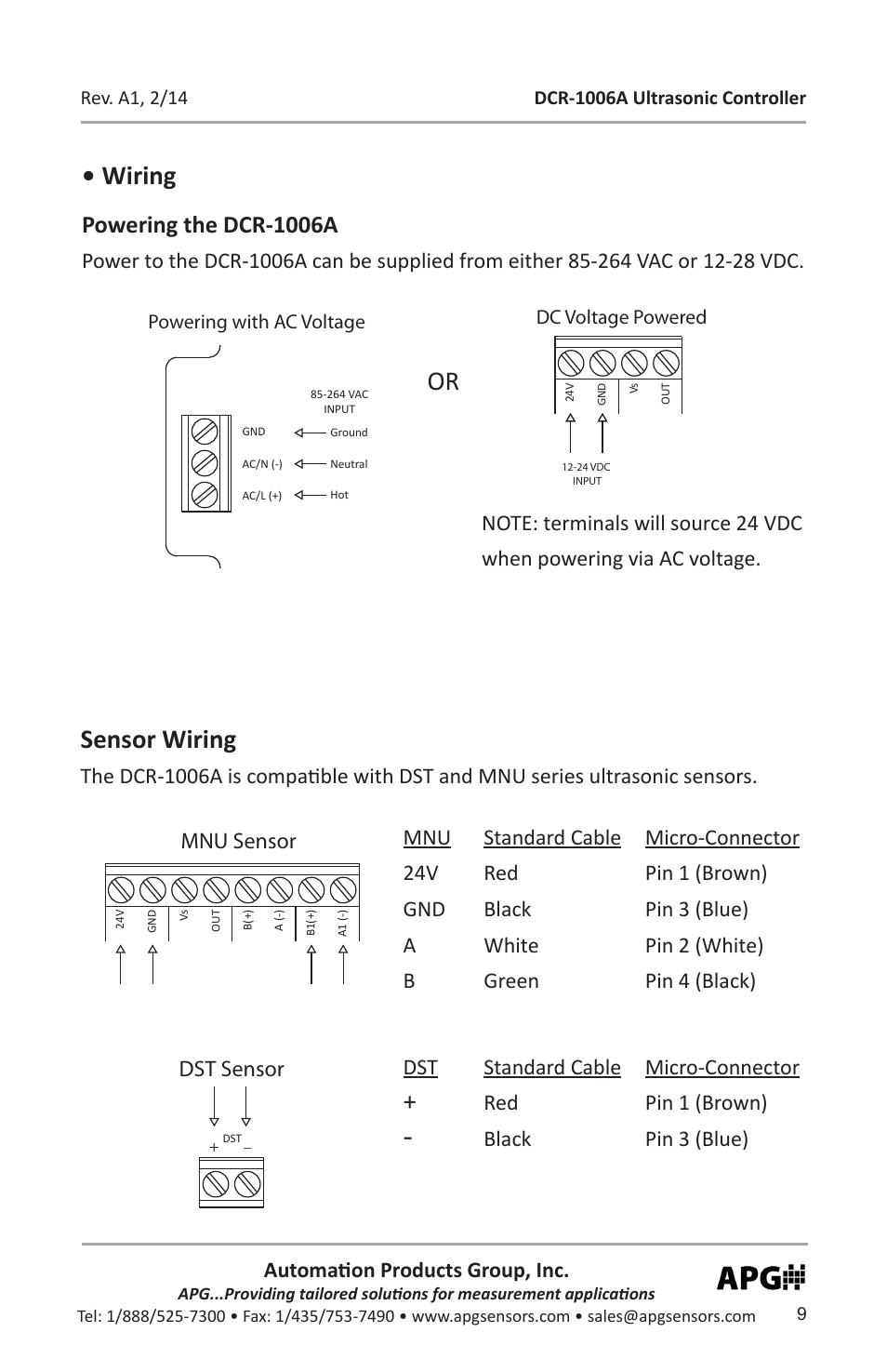

Wiring sensor wiring, Powering the dcr-1006a, Automation products group, inc – APG DCR-1006A user manual User Manual

Page 9: Red pin 1 (brown), Black pin 3 (blue), Dst sensor, Mnu sensor

Wiring sensor wiring, Powering the dcr-1006a, Automation products group, inc | Red pin 1 (brown), Black pin 3 (blue), Dst sensor, Mnu sensor | APG DCR-1006A user manual User Manual | Page 9 / 40 Wiring sensor wiring, Powering the dcr-1006a, Automation products group, inc | Red pin 1 (brown), Black pin 3 (blue), Dst sensor, Mnu sensor | APG DCR-1006A user manual User Manual | Page 9 / 40
