• OUTPUT:

Used to confi gure any optional gauges outputs, such as an analog signal or trip
point relays.

Analog Low (AL SET) & Analog High (AH SET) Setpoints:
Allows the user to defi ne the reading values associated with the Low Analog
signal (i.e. 4mA or 0V) and the High Analog signal (i.e. 20mA, 2V or 5V).

NOTE: The analog setpoints must be entered using the gauge’s base unit of

measure (typically PSI).

Setting the Analog Signal Span:

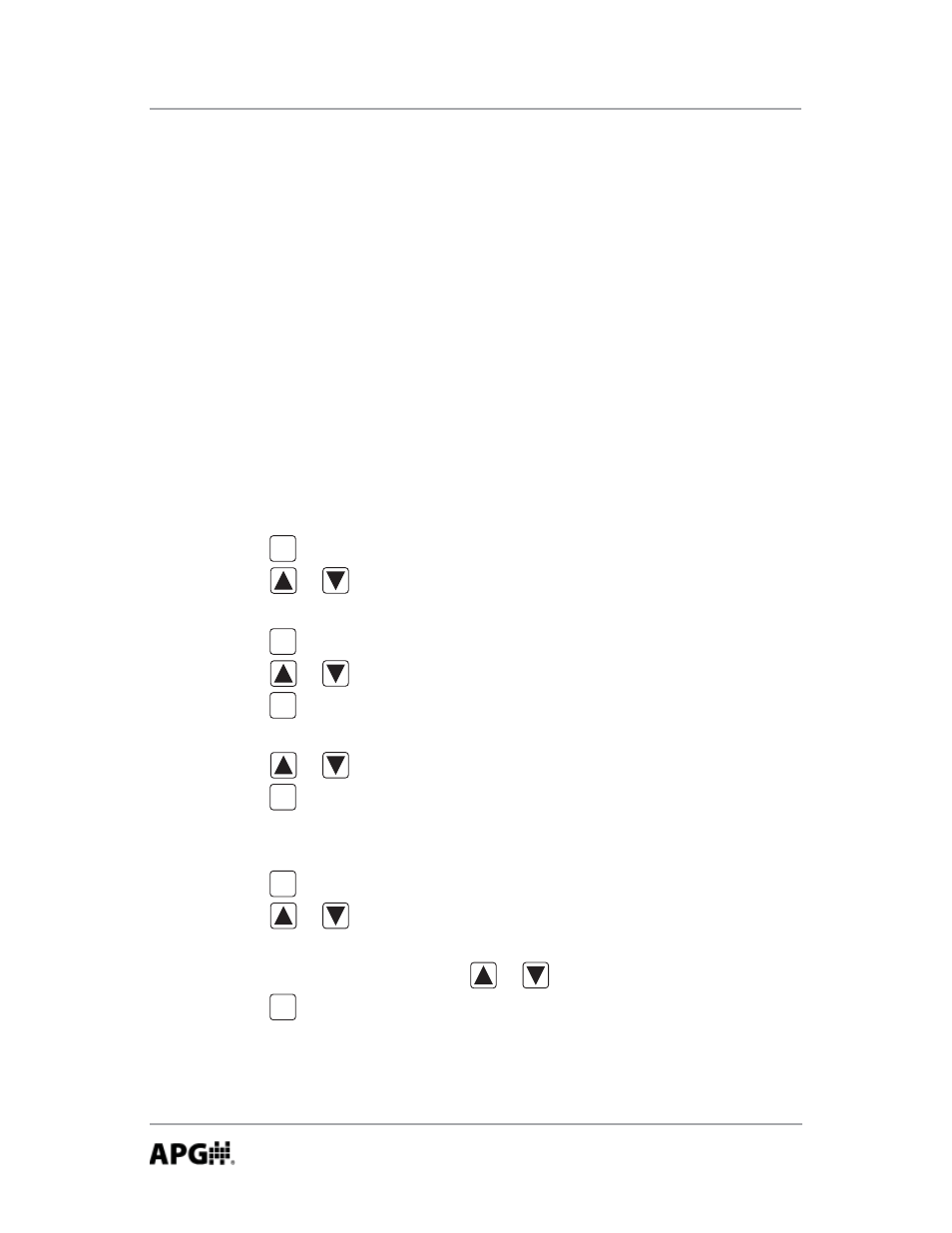

Step 1: Press to enter the main setup menu.

Step 2: Press or to cycle through the options until OUTPUT is

displayed.

Step 3: Press to access the Output Settings menu.

Step 4: Press or to cycle through the options until AL SET is displayed.

Step 5: Press to access the Analog Low setpoint value. A 5-digit number

will appear with the fi rst digit fl ashing.

Step 6: Press or to change the value of the fi rst fl ashing digit.

Step 7: Press to accept the value of the fl ashing digit and advance to the

next digit......repeat steps 6 and 7 until the desired Analog Low reading

is fully entered.

Step 8: Press to reenter the Output Settings menu.

Step 9: Press or to cycle through the options until AH SET is displayed.

Step 10: Repeat Steps 5-7 to enter the Analog High setpoint value.

Step 11: To exit the output menu, press or until EXIT is displayed and

press to exit to the main setup menu.

MODE

ENTR
