MNU Series Ultrasonic Sensors

Rev. B1, 5/13

28

Automa! on Products Group, Inc.

APG...Providing tailored solu• ons for measurement applica• ons

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

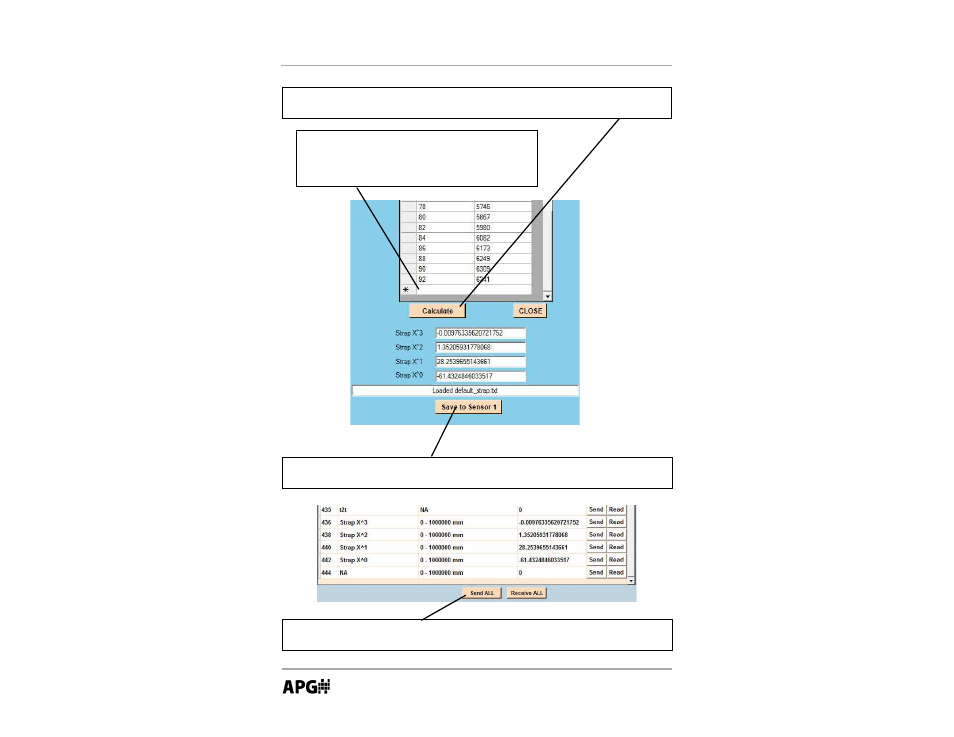

Once the all data points have been entered, click the “Calculate” bu! on to
determine the values required for the “curve fi t” calcula# on.

Click the “Save to Sensor” bu! on to populate the appropriate Holding Resister
fi elds (see below) and close the Strapping Chart window.

Click the “Send All” bu! on at the bo! om of the Holding Register page to write
the curve fi t values to the sensor.

NOTE: before clicking “Calculate” ensure that
there is only one empty row following the last
line of data (as shown). Use the keyboard
“Delete”key to remove any addi# on empty rows.
