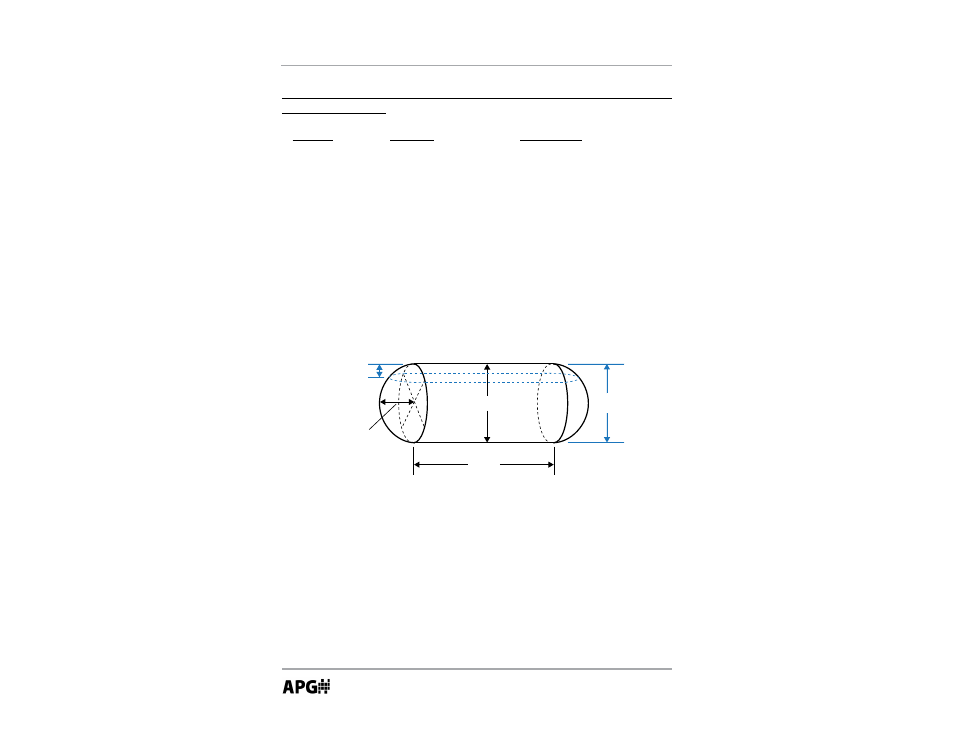

Applica! on Type 5: Volume of horizontal cylindrical tank with or without
hemispherical ends
(measurement result in register 30303-30304)
Register
Func! on
Value Range
40402
Applica! on Type
5
40403
Volume Units
1 to 7
40404
Decimal Point
0 to 3
40405
Max Distance
≥ Empty Distance
40406
Full Distance
Typically = Blanking Distance
40407
Empty Distance
0 to 10364 mm
40436-40437
Tank Length
0 to 100,000 mm
40438-40439
Tank Diameter
0 to 100,000 mm
40440-40441
End Radius
0 to 100,000 mm
Diameter
Length
Empty
Distance
End
Radius
Full
Distance
