NOTE:
1. TENSION TOP
SYMMETRICALLY ABOUT THE
CENTER LINE. PULL ON LIKE
POINTS ON EACH SIDE OF TENT
AT THE SAME TIME
(A & A, B & B, D & D, ETC).
2. THE POLES ARE TO
BE VERTICAL FROM THE
FRONT. THE FRONT POLES
ARE TO LEAN APPROXIMATELY
7’-5” FORWARD AND THE
REAR POLES ARE TO LEAN
APPROXIMATELY 4’-8”
BACKWARD.
DOUBLE CHECK THAT ALL GUYS
AND STAKES ARE SECURE. DO
THIS AT LEAST DAILY, MORE
IN BAD WEATHER. THE GUYS
WILL TEND TO LOOSEN DUE TO
FABRIC STRETCH, WIND AND
STAKE MOVEMENT.
LOOSELY TIE PULL ROPE TO
POINTS H1 OR H2 AND LEAVE
SUPPORT GUY IN PLACE.
THEY WILL BE USED FOR
DISASSEMBLY.

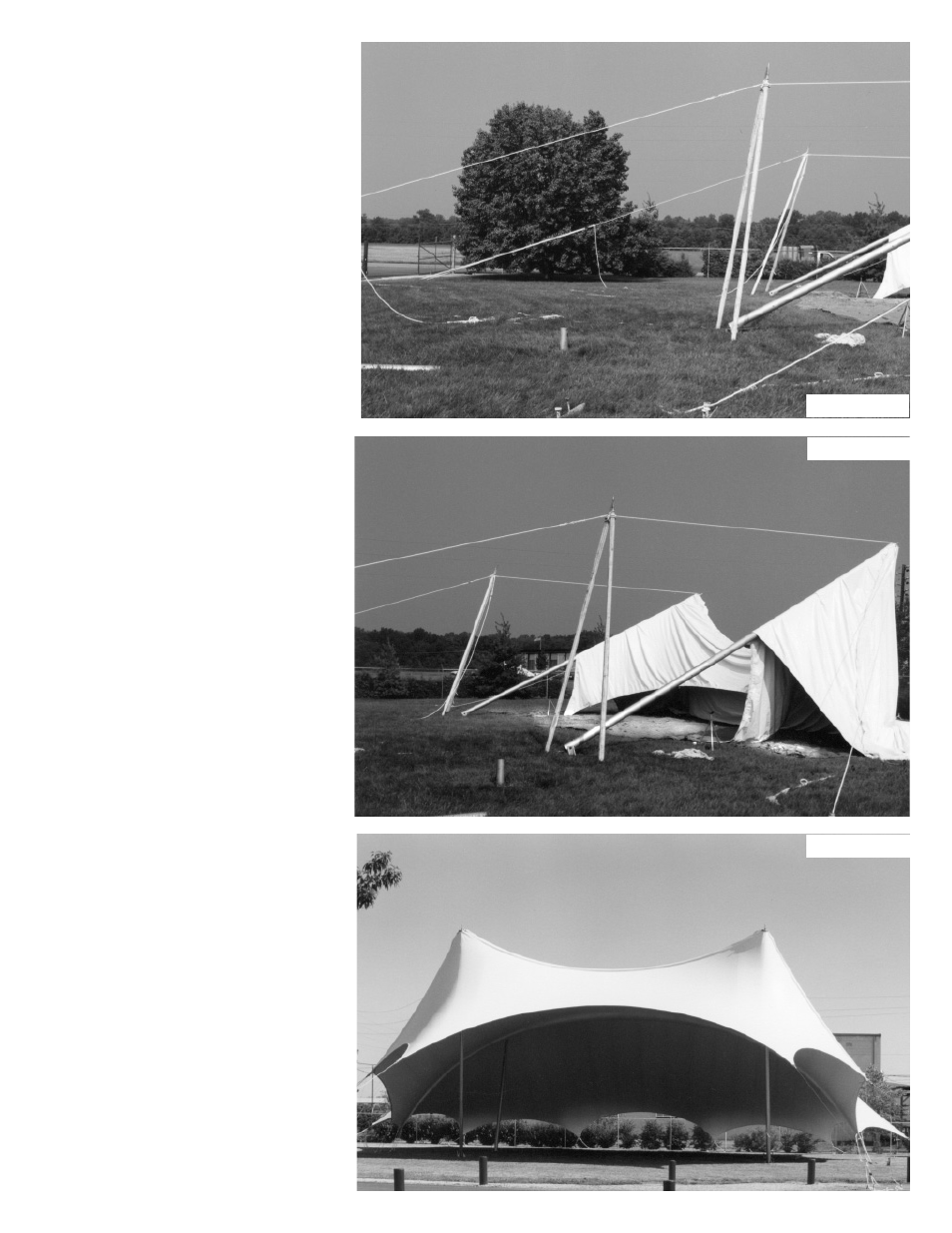

SEE PHOTOS OF COMPLETED
ASSEMBLY: PHOTOS #13, 14
& 15)
Photo 11
Photo 12
18.
19.
8
Photo 13
