5.
6.
7.
4
8.
UNFOLD REAR SECTION TO THE
REAR OF POINTS X WITH LOOP
SIDE TOWARD THE FRONT OF THE
STAGE. WHEN COMPLETELY LAID
FLAT, FOLD THE LOOP SIDE BACK
ALMOST TO POINT A.

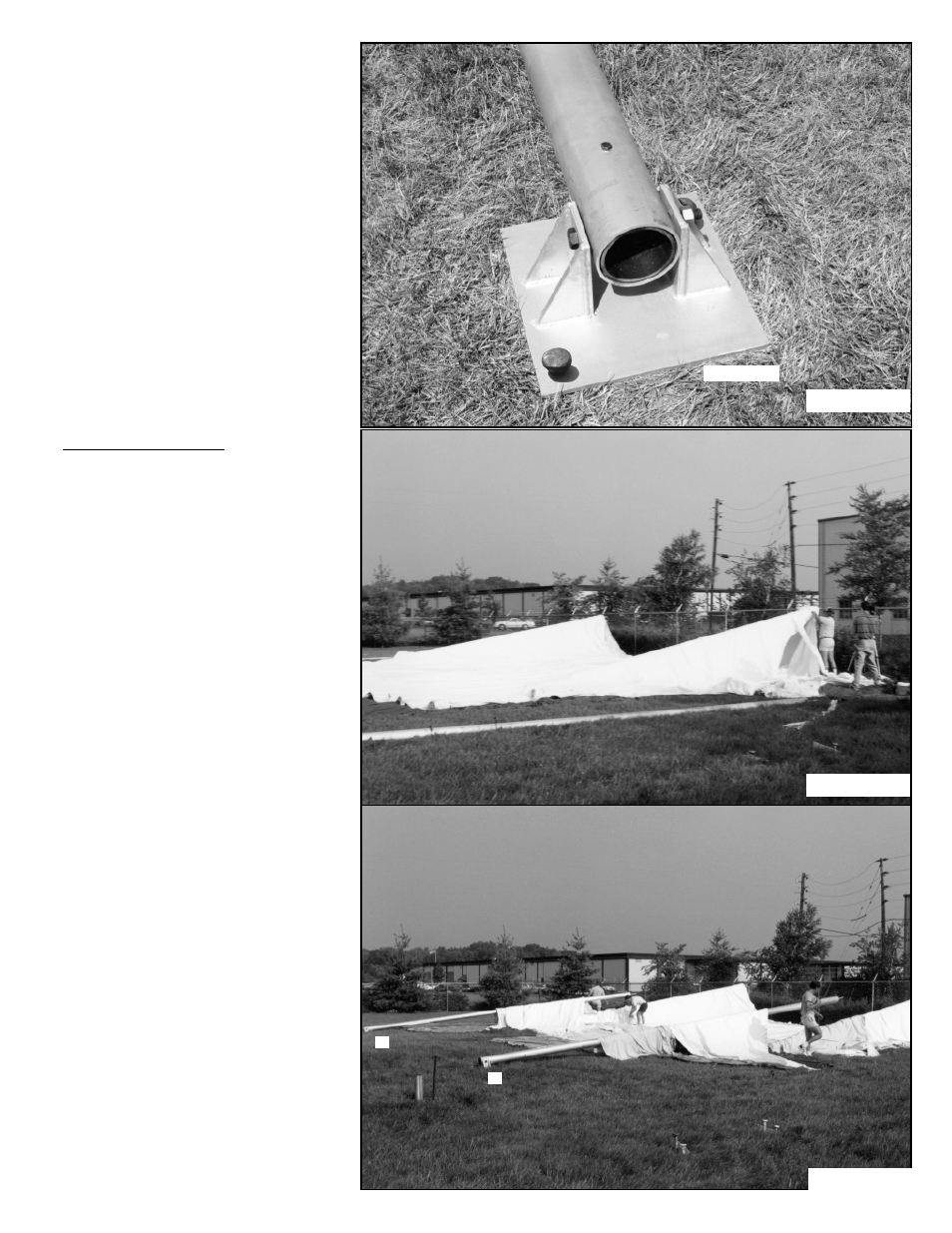

PLACE POLE STAND
APPROXIMATELY 15’-0” DIRECTLY
BEHIND BASE PLATES AT BOTH
POINT X’S. MOUNT THE 28’-4”
REAR POLES IN BASE PLATE WITH
THE TOP TOWARD THE REAR AND
SITTING IN THE POLE STAND. THE
TOP OF THE POLE SHOULD BE
APPROXIMATELY 5’-0” OFF THE
GROUND.
(PHOTOS #1, & 2).
LAY DROP CLOTHS OVER POLES
AND AROUND AREA FOR MIDDLE
SECTION PROTECTION.
UNFOLD MIDDLE SECTION
BETWEEN BASE PLATES AT
POINTS X AND W, WITH THE LOOP
SIDE TOWARD THE FRONT OF
THE STAGE. WHEN COMPLETELY
LAID OUT, PLACE THE SPOKE
RINGS ON THE HOLE SIDE OF
THE MIDDLE SECTION OVER THE
POLE PINS, WHILE THREADING
THE CABLES THROUGH THE
RING. THEN, DO THE SAME WITH
THE SPOKE RINGS ON THE REAR
SECTION, PLACING THEM ON TOP
OF THE FIRST RINGS. FOLD LOOP
SIDE OF MIDDLE SECTION BACK
APPROXIMATELY 10’-0” PAST
POINTS X.
( PHOTO #3).
BasePlate
Photo 2
Photo 4
W
W
Photo 3
