Anchor BANDSHELLS 40X40 - Manual (Page 3)

DIMENSION CHART FOR POLE & STAKE LAYOUT
STAKING PT. DIST. FROM 1 DIST. FROM 2 DIST. FROM 3 DIST. FROM 4
A 12’-0” 21’-8” - -
B 34’-3” 36’-9” - -
C 1 - 48’-8” 55’-2” -
C 2 - 48’-11” 53’-3” -
D - 41’-6” 41’-3” -
E - 42’-0” 39’-1” -
F - 43’-5” 38’-0” -
G - 46’-1” 38’-0” -
H 1 - 57’-11” 48’-1” -
H 2 - 60’-11” 48’-6” -
I - - 57’-7” 33’-3”
X* - 25’-0” 34’-5” -
W* - 41’-0 ” 21’-11” -

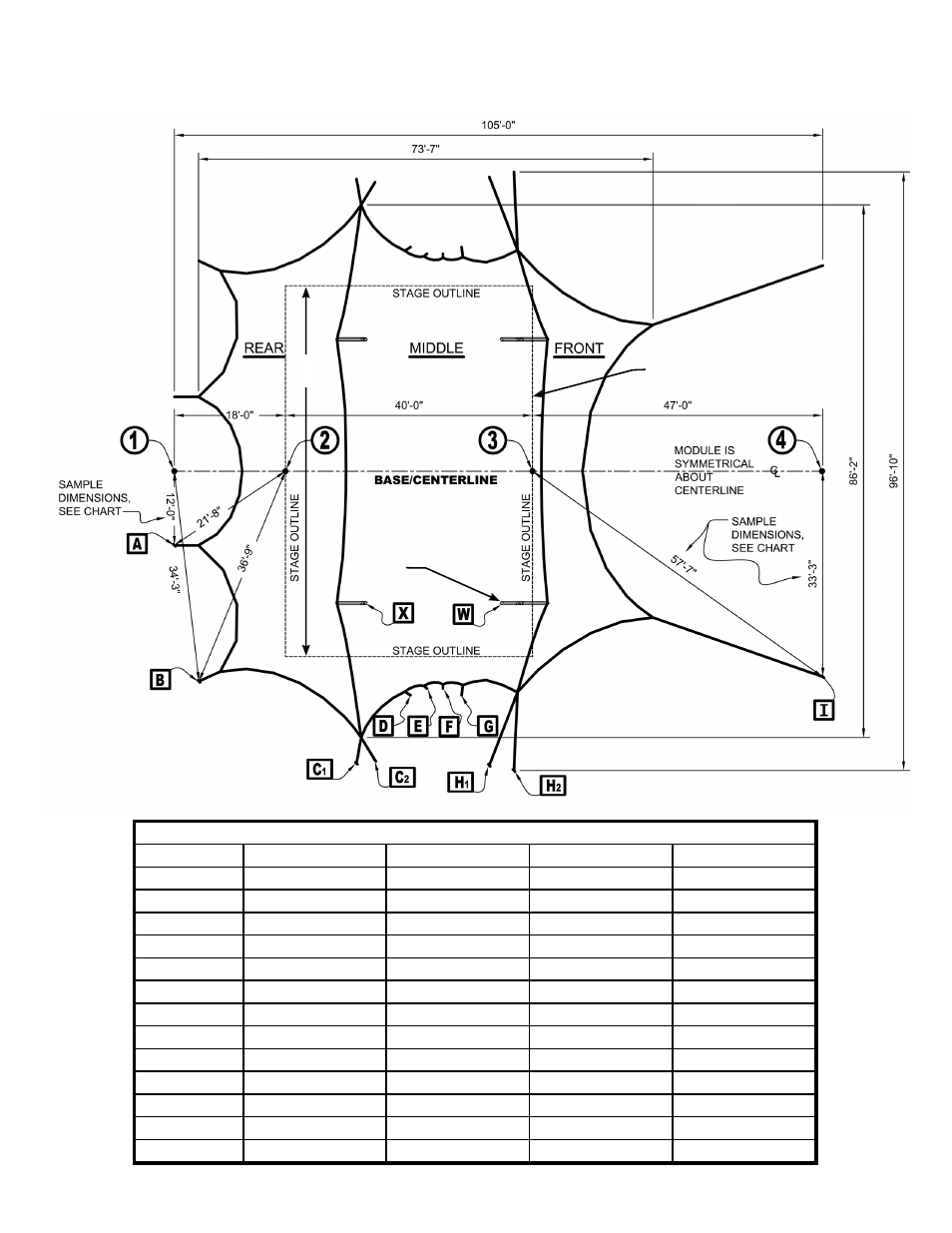

40’ x 40’ BANDSHELL
Pole & Anchor Layout
TYPICAL STAGE
POSITION
*POLE BASE PLATE POSITIONS. 2
BASE OF CENTER
POLE
60’-0”
