ATTACH FLAP SNAPS TO ROPES THAT ARE THROUGH D-RINGS ON TOP. SLOPE FLAPS ARE
SEPARATE FLAPS AND ARE TO BE SNAPPED TO ROPES ON BOTH SIDES. ONE SNAP SHOULD BE
ATTACHED TO THE ROPE BETWEEN EACH D-RING. (PHOTO #8).
ATTACH GUY CABLES AT ALL POINTS (A THRU
I). (SEE TABLE OF CABLES BELOW). CONNECT
THE END OPPOSITE THE TURNBUCKLE TO THE EAVE RING ON BANDSHELL.
NOTE: AT POINTS C & H, BE SURE THE LOOP SIDE PEAR SHAPED RING IS ON TOP OF THE HOLE
SIDE PEAR SHAPED RING; AND THAT THE PEAR SHAPED RINGS ARE TURNED, SO THE SHACKLE
IS PULLING ON THE SMALLER ENDS OF THE RINGS.
ASSEMBLE RIGGING
A.
SNAP ON SUPPORT GUY TO THE CABLES AT THE TOP OF EACH FRONT POLE AND LOOSELY
TIE OFF THE OTHER END TO POINT H2.
B.
ATTACH ONE PULL ROPE TO THE CABLES AT THE TOP OF EACH FRONT POLE. CONNECT
ONE DOUBLE BLOCK & TACKLE AT BOTH POINT I’S. WITH THE BLOCKS FULLY EXTENDED, TIE
THE PULL ROPES TO THE BLOCKS. LOOSELY TIE OFF THE BLOCK & TACKLES.
C.
LASH TWO SETS (2) 20’-0” POLES TOGETHER AT THE TOP AND SECURELY ATTACH ONE SET
TO RINGS ON EACH PULL ROPE. SET POLES UP, FORMING AN A-FRAME CANTILEVER TO LIFT
FRONT POLES (BOTTOM OF A-FRAME SHOULD BE APPROXIMATELY 12’ WIDE). (PHOTOS #9,
10, 11 & 12).
6
13.
15.
Location
Point
TABLE OF CABLES
Quantity
A
1’-9 1/4” Total Guy Length - (3/8”) Cable with (1) 1/2” x 1’-0” turnbuckle and (1) shackle
2
B
1’-3 3/4” Total Guy Length - (3/8”) Cable with (1) 1/2” x 1’-0” turnbuckle and (1) shackle
2
C1 & C2
(1) 7/8” Shackle, (2) Pear Rings, (4) 3/4” x 1’-0” Turnbuckles for Double Guy
2
D
2’-2 1/2” Total Guy Length - (3/8”) Cable with (1) 1/2” x 1’-0” turnbuckle and (1) shackle
2
E & F
1’-5 3/4” Total Guy Length - (3/8”) Cable with (1) 1/2” x 1’-0” turnbuckle and (1) shackle
4
G
2’-3 1/2” Total Guy Length - (3/8”) Cable with (1) 1/2” x 1’-0” turnbuckle and (1) shackle
2
H1 & H2
(1) 7/8” Shackle, (2) 12’-4” (5/8”) Cables , (4) 3/4” x 1’-0” Turnbuckles for Double Guy
2
I
28’-11 3/8” Total Guy Length - (3/8”) Cable with 1/2” x 1’-0” turnbuckle and (1) shackle
2

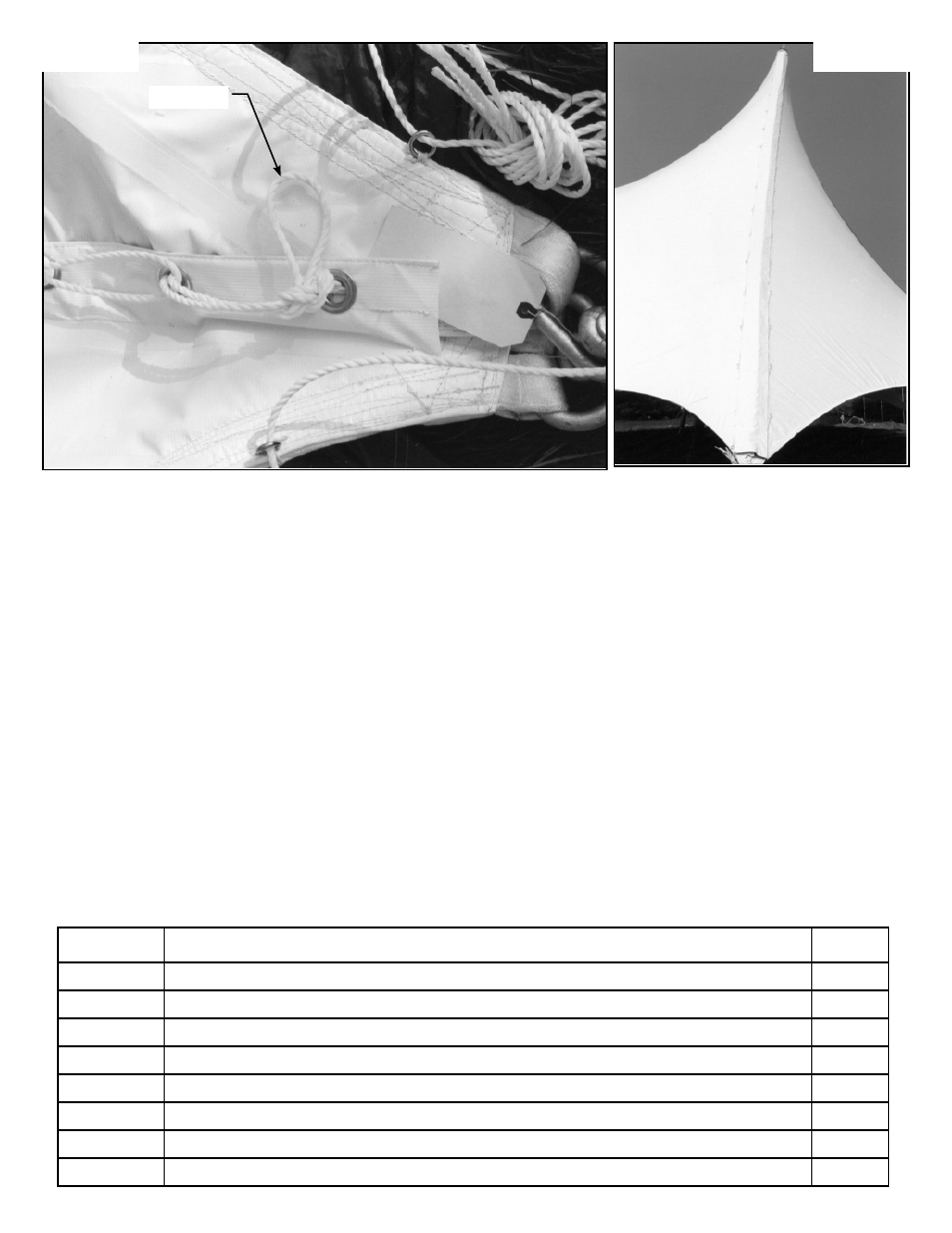

Photo 7
