PLACE POLE STAND
APPROXIMATELY 15’-
0” DIRECTLY BEHIND
BASE PLATES AT BOTH
POINTS W. MOUNT THE
32’-0” FRONT POLES
IN BASE PLATE WITH
THE TOP TOWARD THE
REAR AND SITTING
IN THE POLE STAND.
THE TOP OF THE
POLE SHOULD BE
APPROXIMATELY 5’-0”
OFF THE GROUND.
(PHOTO #2).
LAY DROP CLOTHS
OVER POLES AND
AROUND AREA FOR
FRONT SECTION
PROTECTION.
UNFOLD FRONT
SECTION IN FRONT
OF BASE PLATES
AT POINTS W & W
WITH HOLE SIDE
TOWARD THE MIDDLE
SECTION. WHEN
COMPLETELY LAID
OUT, PLACE THE
TOP-HOLE RINGS ON
HOLE SIDE OF FRONT
SECTION OVER THE
POLE PINS, WHILE
THREADING THE
CABLES THROUGH
THE RING. THEN, DO
THE SAME WITH THE
TOP RINGS ON THE
LOOP SIDE OF THE
MIDDLE SECTION,
PLACING THEM ON
TOP OF THE FIRST RINGS. ( PHOTO #4).

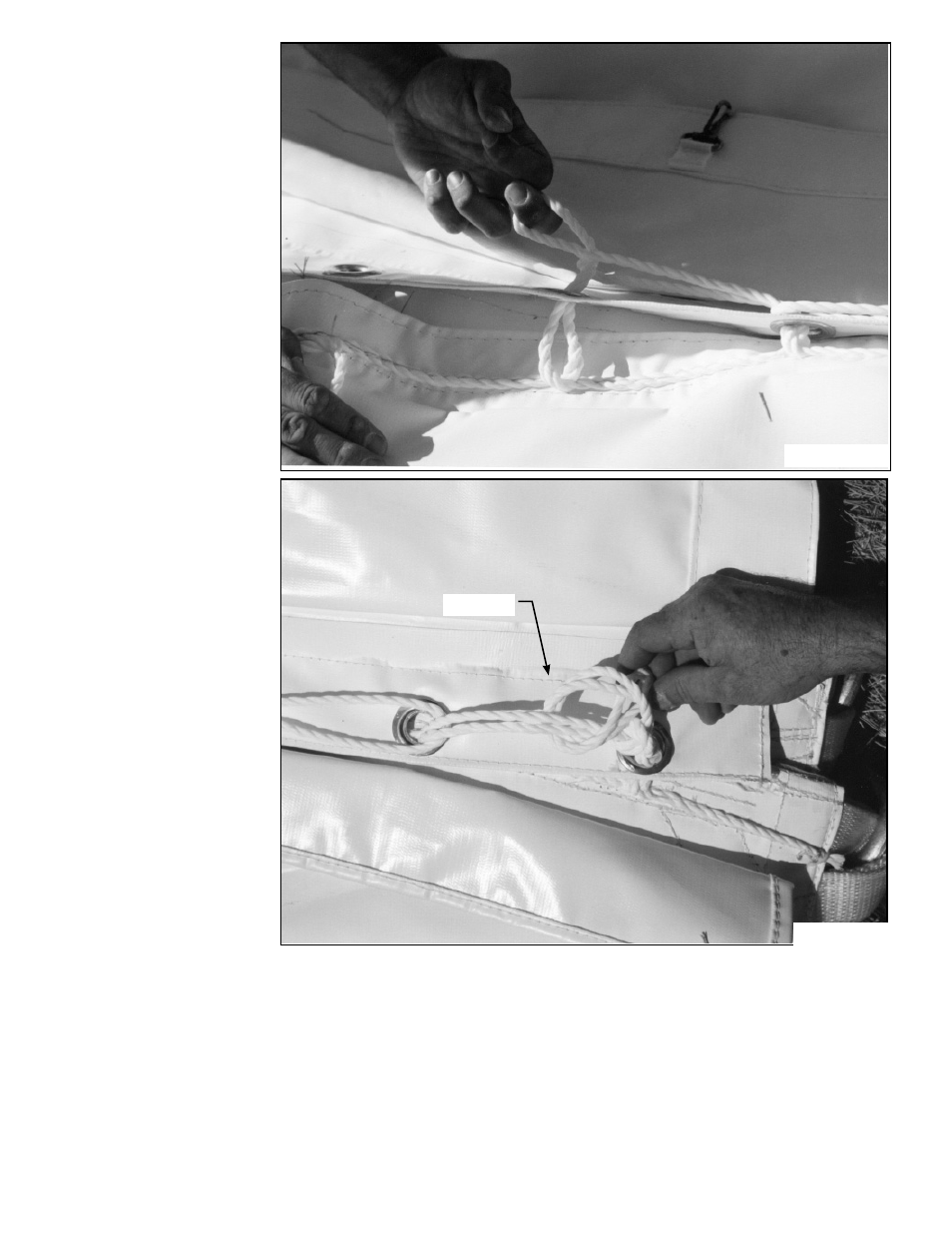

LACE ALL THREE SECTIONS TOGETHER. START AT TOP RING ON THE RIDGE SIDE WITH NO LONG
LOOP. LACE ACROSS THE RIDGE AND TIE OFF WITH THE LONG LOOP. THEN, LACE DOWN EACH
SLOPE AND TIE OFF AT EAVE WITH LONG LOOP. BE SURE THE LOOP SIDE WEB IS BETWEEN THE
GROMMET FLAP AND THE HOLE SIDE WEB. LACING REQUIRES WALKING ON THE BANDSHELL
TOP AND IT IS ADVISABLE TO REMOVE YOUR SHOES. (PHOTOS #5, 6 & 7).
Photo 5
5
Long loop
Photo 6
