Step 6 - Fabric
Ends Installation
With one installer at
top of the end rafter,
feed eave end of
kedar into top chan-
nel opening of ridge
weldment and down
into rafter until end
of kedar reaches
the end of the rafter.
(Figure 6a)
Raise bottom end of
back kedar up until
bottom of kedar can
be fed down into
top of channel on
Upright Rear Upper
Splice. (Figure 6b)
After end fabric is in
place, fi esta buckles
on inside of fabric at
eave must be con-
nected. Slide kedar pieces with d-ring into top/outside
channel of eave beam. Align these with corresponding
fi esta buckles. Slide web through d-ring as shown in
fi gure 6c. Tighten webs.
End Fabric is installed. •
•
•
•

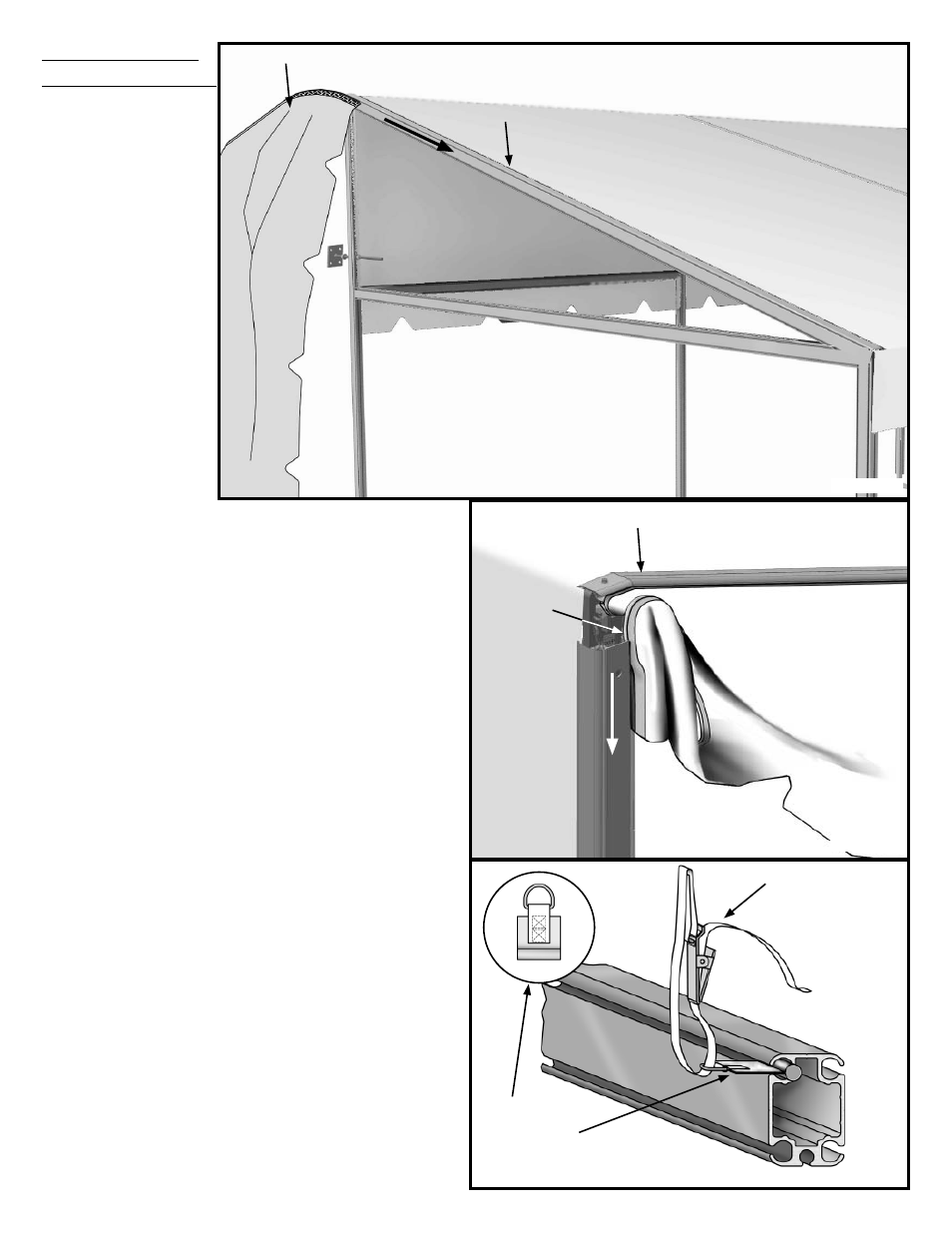

Rafter
End Fabric
Figure 6a
Kedar
feeding
down into
channel
Rafter
End Fabric
Bottom end of
back kedar
Figure 6b
Kedar piece
with D-ring
Figure 6c
Fiesta Buckle at-
tached to inside of
end fabric. (Fabric
not shown.
