Web guy - staking guidelines, Assemble first beam – Anchor NAVI-TRAC 30 WIDE GABLE-END User Manual
Page 9
ST
AKE-OUT
DIST
ANCE =
UPRIGHT
HEIGHT

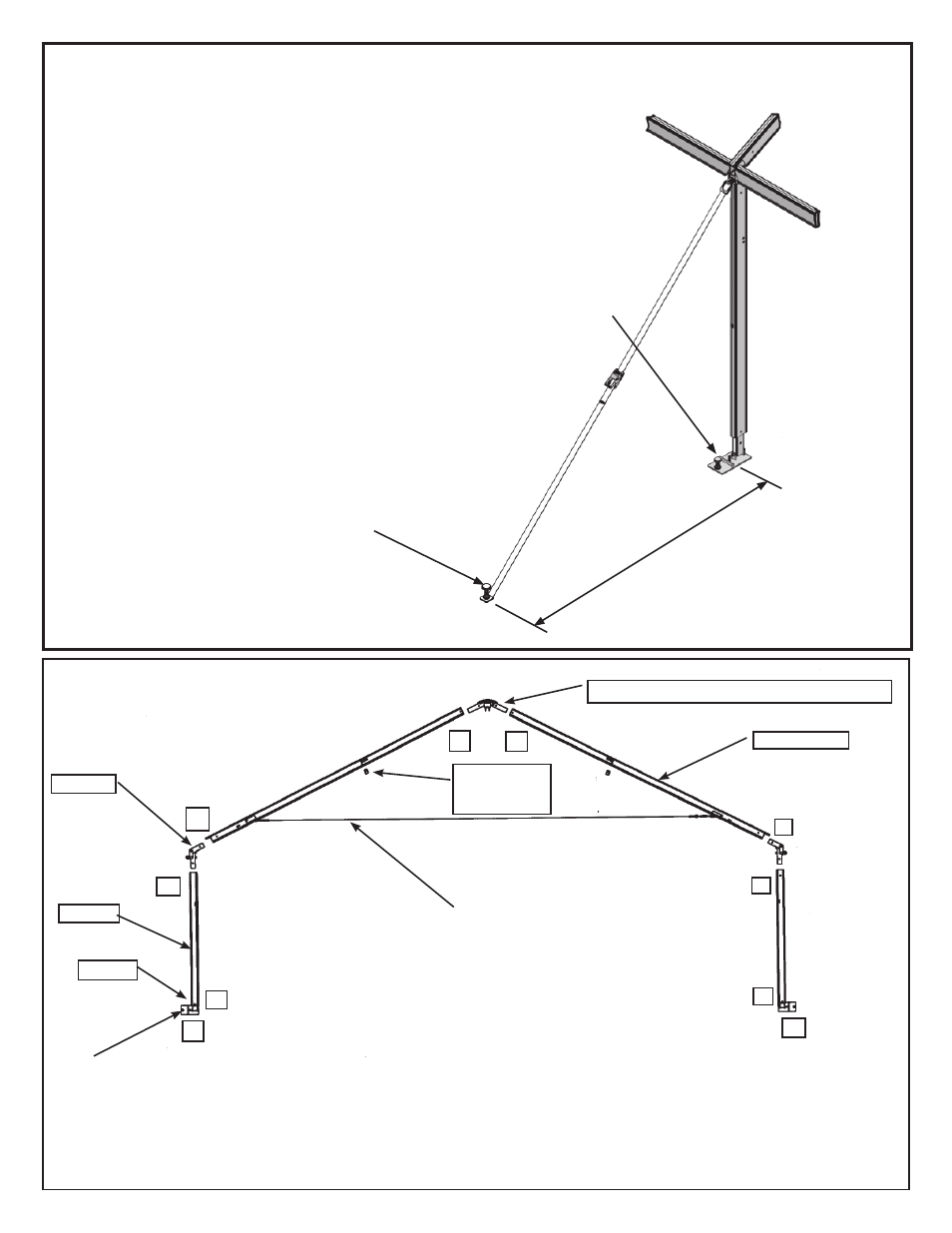

WEB GUY - STAKING GUIDELINES
REQUIRED DISTANCE OUT BETWEEN FRAME UPRIGHTS
AND STAKE LINE IS EQUAL TO THE UPRIGHT HEIGHT.
(FOR EXAMPLE, 8’ UPRIGHT = 8’ STAKE-OUT DISTANCE.)
42” Stake driven through stake plate.
Stake must be driven into ground as
far as possible. (1) per upright as
shown for Gabled End Units.
(1) 30” Stake through
base plate. Drive into
ground as far as possible.
1
3
4
2
6
5
ASSEMBLE FIRST BEAM
MCW (2)
RW ON MID BEAMS, RWE ON END BEAMS
R16-2 (2)
U8 (2)
BHW (2)
(1) STAKE PER BASE PLATE
XRB (2) FOR
X-CABLED
BEAMS ONLY
MAKE CONNECTIONS IN NUMBER SEQUENCE
SHOWN. STAKE PLATES BEFORE
ERECTING.
7
8
9
10
USE CROSS CABLE AS AN INSTAL-
LATION TOOL TO SQUARE FIRST
BEAM BEING RAISED. OPTIONAL ON
OTHER BEAMS, DEPENDING ON TER-
RAIN. NOT REQUIRED FOR FINAL 30’
CONFIGURATION.
9
