30’ x 60’ gabled end navi-trac – Anchor NAVI-TRAC 30 WIDE GABLE-END User Manual
Page 16
16

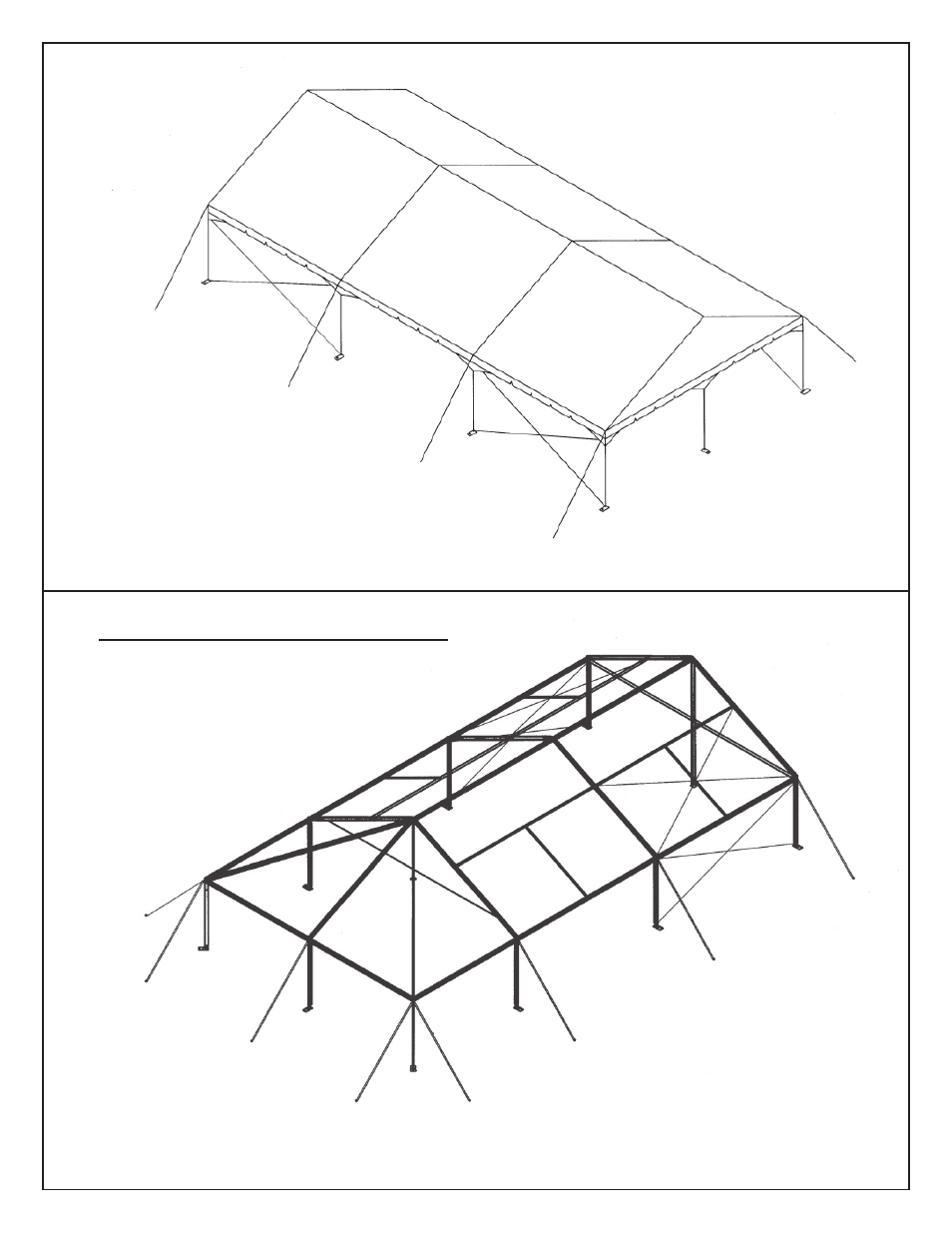

COMPLETED 30’ GABLED END NAVI-TRAC WITH
FABRIC INSTALLED AND TENSIONED, GUY
WEBS STAKED AND RATCHETED TIGHT. TO
MEET ENGINEERING REQUIREMENTS WALLS
SHOULD BE INSTALLED ON ALL (4) SIDES.
30’ x 60’ GABLED END NAVI-TRAC
ALTERNATE HIP/GABLED END COMBINATION
USING KIT #3 FOR THE HIP COMPONENTS
(SEE THE FOLLOWING PAGE FOR ASSEMBLY
REFERENCE)
