AirLive WT-2000ARM User’s Manual

Note: Please make sure that the router’s DHCP server is the only DHCP server available on

your LAN.

Windows NT

1. Click

the

Start button and select Settings, then click Control Panel. The Control Panel window will

appear.

2. Double-click

Network icon. The Network window will appear. Select the Protocol tab from the

Network window.

3. Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed, click

the Add button to install it now. If TCP/IP is installed, go to step 5.

4. In

the

Select Network Protocol window, select the TCP/IP Protocol and click the Ok button to start

installing the TCP/IP protocol. You may need your Windows CD to complete the installation.

5. After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of Network

Protocols and then click the Properties button.

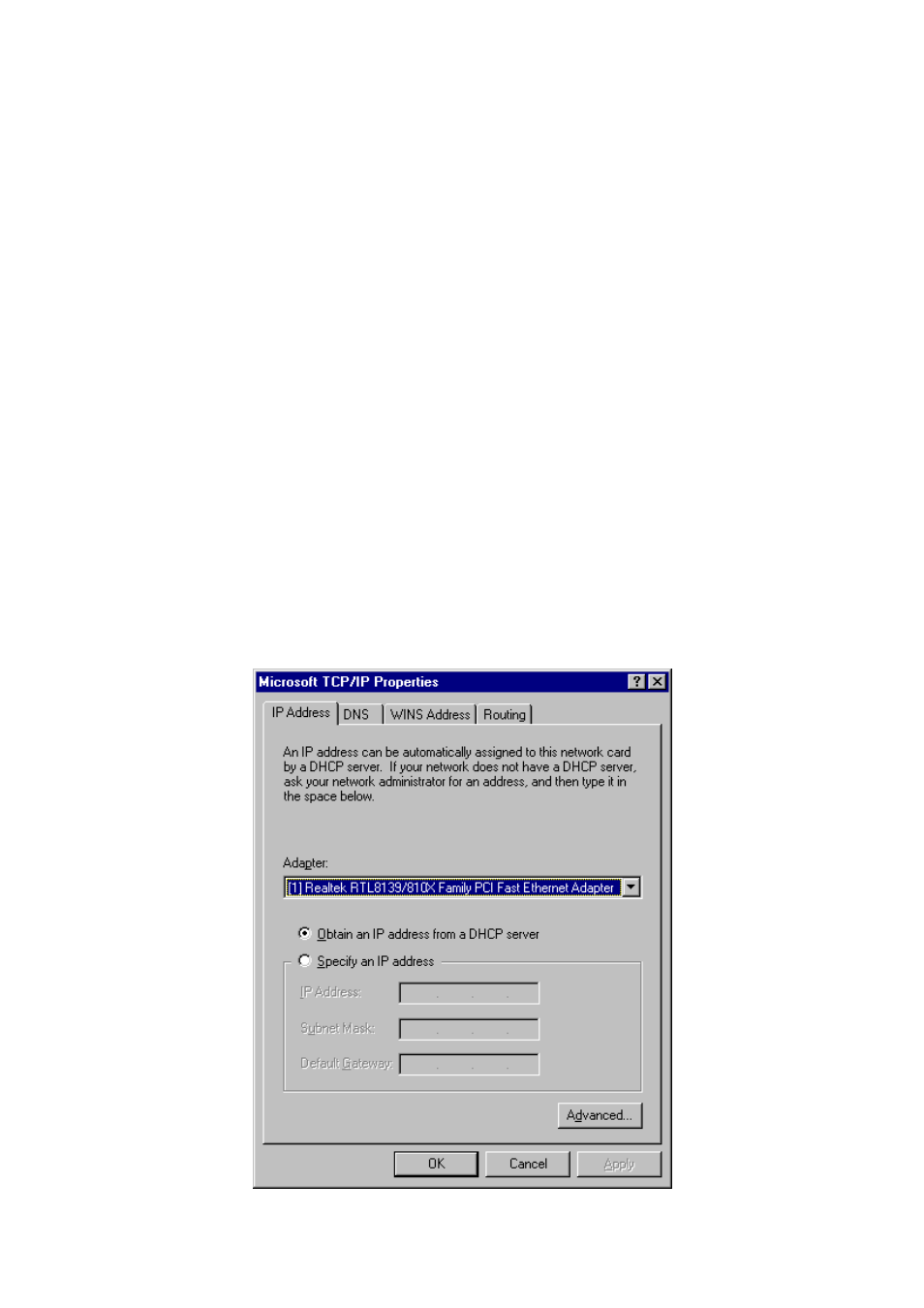

6. Check each of the tabs and verify the following settings:

IP Address: Select Obtain an IP address from a DHCP server.

DNS: Let all fields are blank.

WINS: Let all fields are blank.

Routing: Let all fields are blank.
