4. Web Configuration
AirLive N.MINI User’s Manual 33
Hexadecimal (WEP 128 bits): 26 Hex characters (0~9, a~f).
ASCII (WEP 64 bits): 5 ASCII characters (case-sensitive).
ASCII (WEP 128 bits): 13 ASCII characters (case-sensitive).

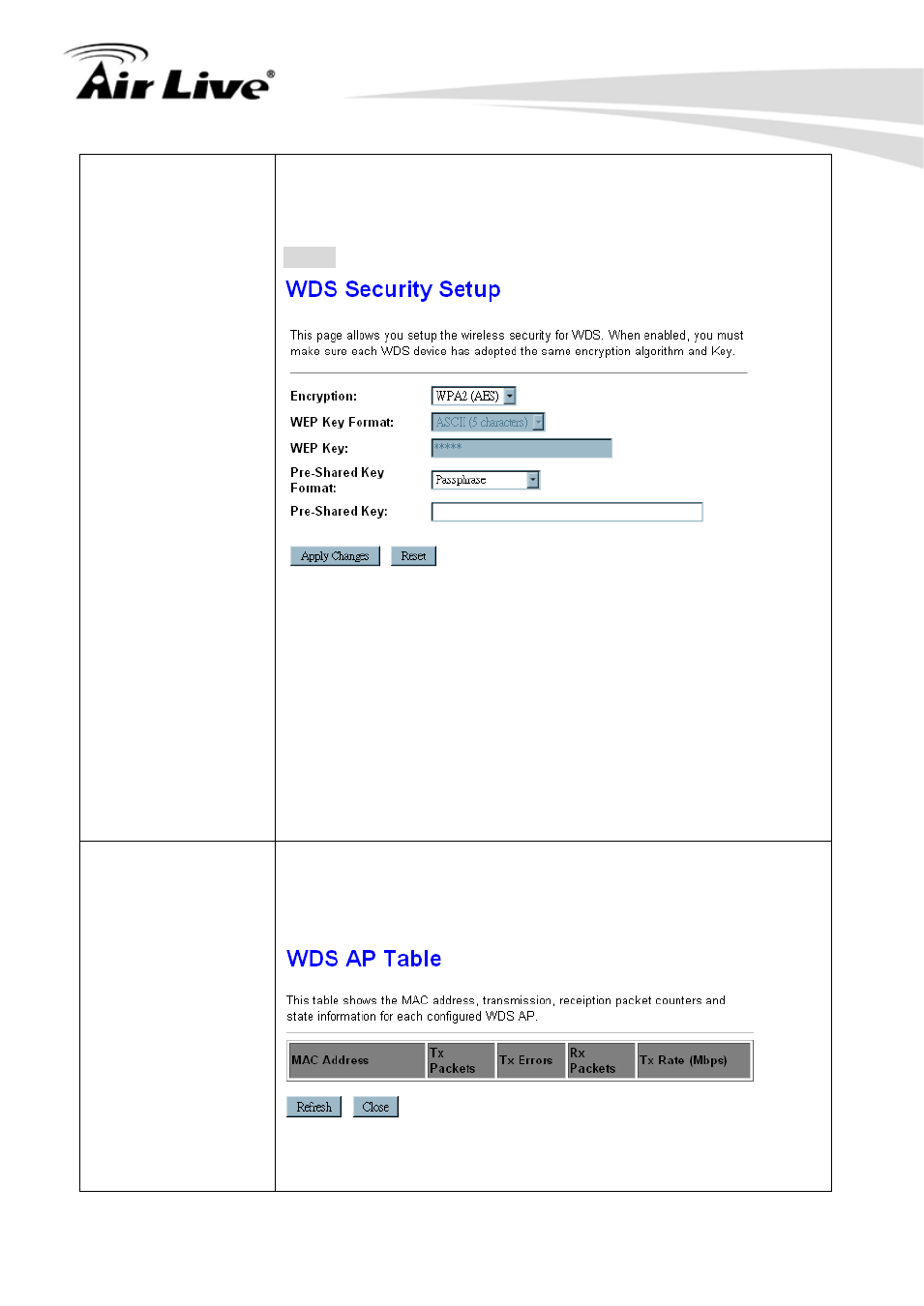

WPA2
Pre-Shared Key Format: The Pre-shared Key Format will be
enabled when WPA (TKIP) and WPA2 (AES) encryption be
selected. There are two formats for choice to set the Pre-shared
key, Passphrase and Hex (64 characters). If Hex is selected,
users will have to enter a 64 characters string. For easier
configuration, the Passphrase (at least 8 characters) format is
recommended.
Pre-Shared Key: Pre-Shared-Key serves as a password. Users
may key in 8 to 63 characters string to set the passwords or leave
it blank, in which the 802.1x Authentication will be activated.
Make sure the same password is used on client's end.
Show Statistics Click Show Statistics to show the current WDS AP table. This
table shows the MAC address, transmission packets and errors,
reception packets and Tx Rate (Mbps) counters for each
configured WDS AP.
Refresh: Click to renew the counters information.
Close: Click to leave the screen.
