4. WISP + AP Mode
23 AirLive G.DUO User’s Manual
4.2 Step-by-Step Example
In this example, we will use a G.DUO to establish a connection service to the WISP outdoor
AP

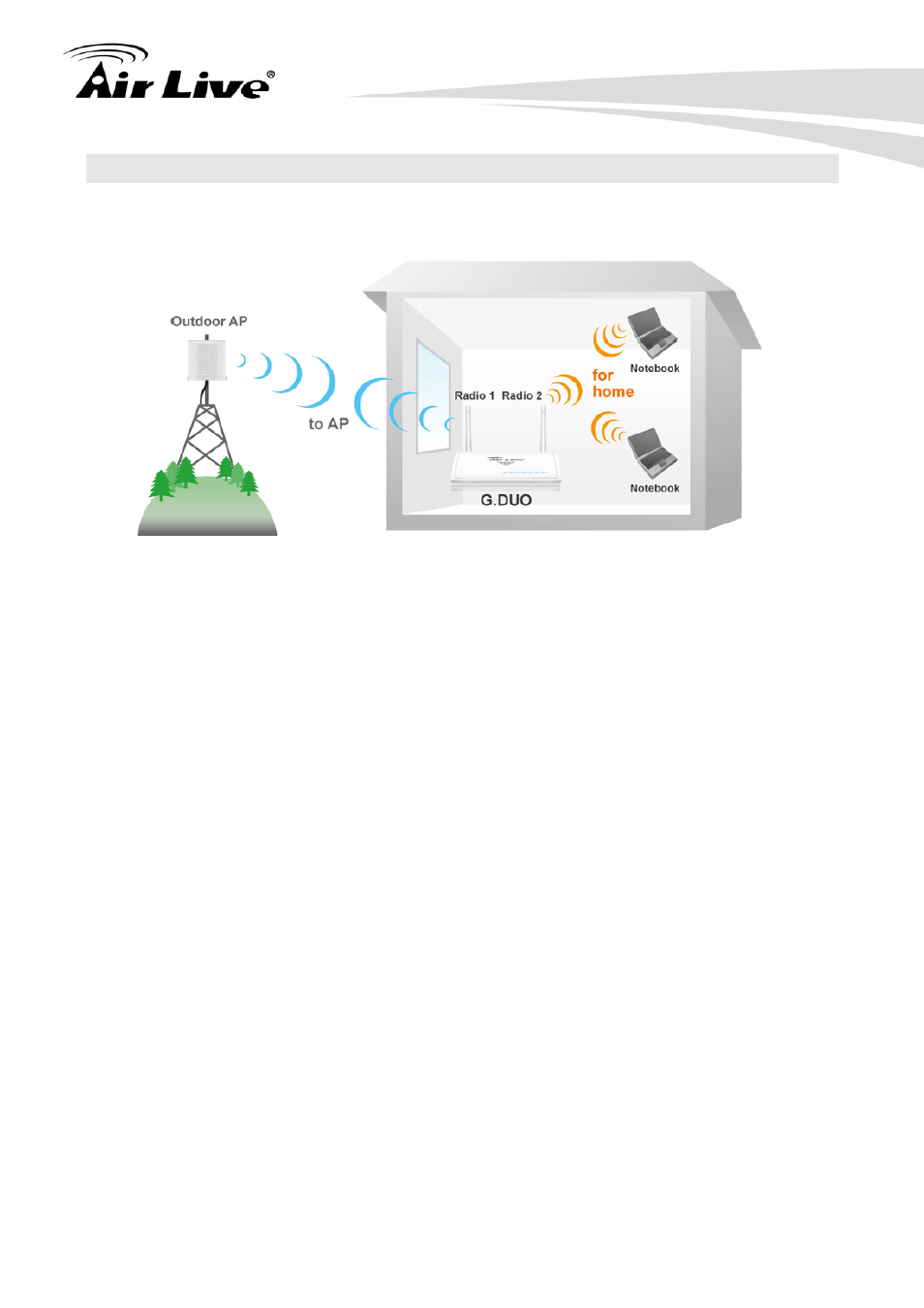

4.2.1 Environment
In this example, the G.DUO will be connecting to the Outdoor AP using Radio1. Radio1
will be running in WISP mode which is also known as “Client Router”. Radio 2 will be
running in AP mode to share the WISP connection wirelessly to the notebook PC.
The configuration procedure should be as followed:
1. Configure Radio1 first.
2. Use “Site Survey” function to find the Outdoor AP and adjust antenna alignment
using “Signal Survey” function
3. Use “Site Survey” to establish connection and enter encryption key with Outdoor
AP
4. Configure the WAN type for the Radio1 to the Outdoor AP
5. Enable the “Remote Management” so WISP operator can manage the AP from
remote
6. Configure Radio2 now
7. You should be able to keep default settings for most of the Radio2’s function
8. But you need to change the channel of Radio2 so it is as far apart from Radio1 as
possible.
9. Set Encryption for Radio2.
10. You should be able to link the Notebook PC to “airlive2” SSID and enter the
correct encryption key.
SSID: OutdoorAP
Encryption: WPA-PSK
