2 – MyChron4 connections and power

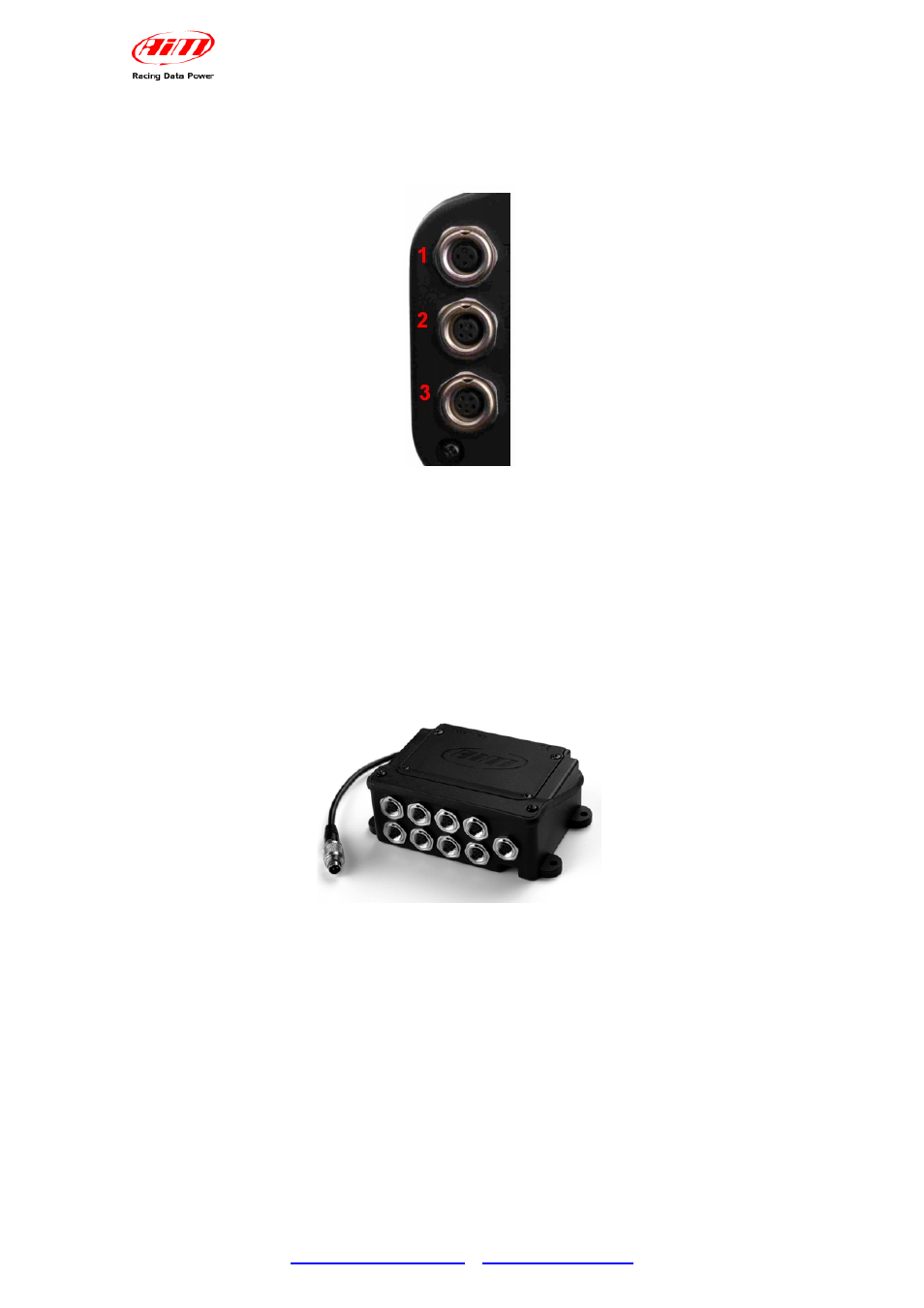

On the back of MyChron4 are three connectors, shown below.
Connector 1 –Temperature input
It allows the connection of a temperature sensor among those available to measure
water, cylinder head or exhaust gas temperature.
Connector 2 – Lap time receiver
It allows to connect optical or magnetic lap time receiver.
Connector 3 – eBox input
It is for MyChron4 external power, eBox and Data key connection, data download
on a Pc. Here below MyChron4 eBox is shown.
