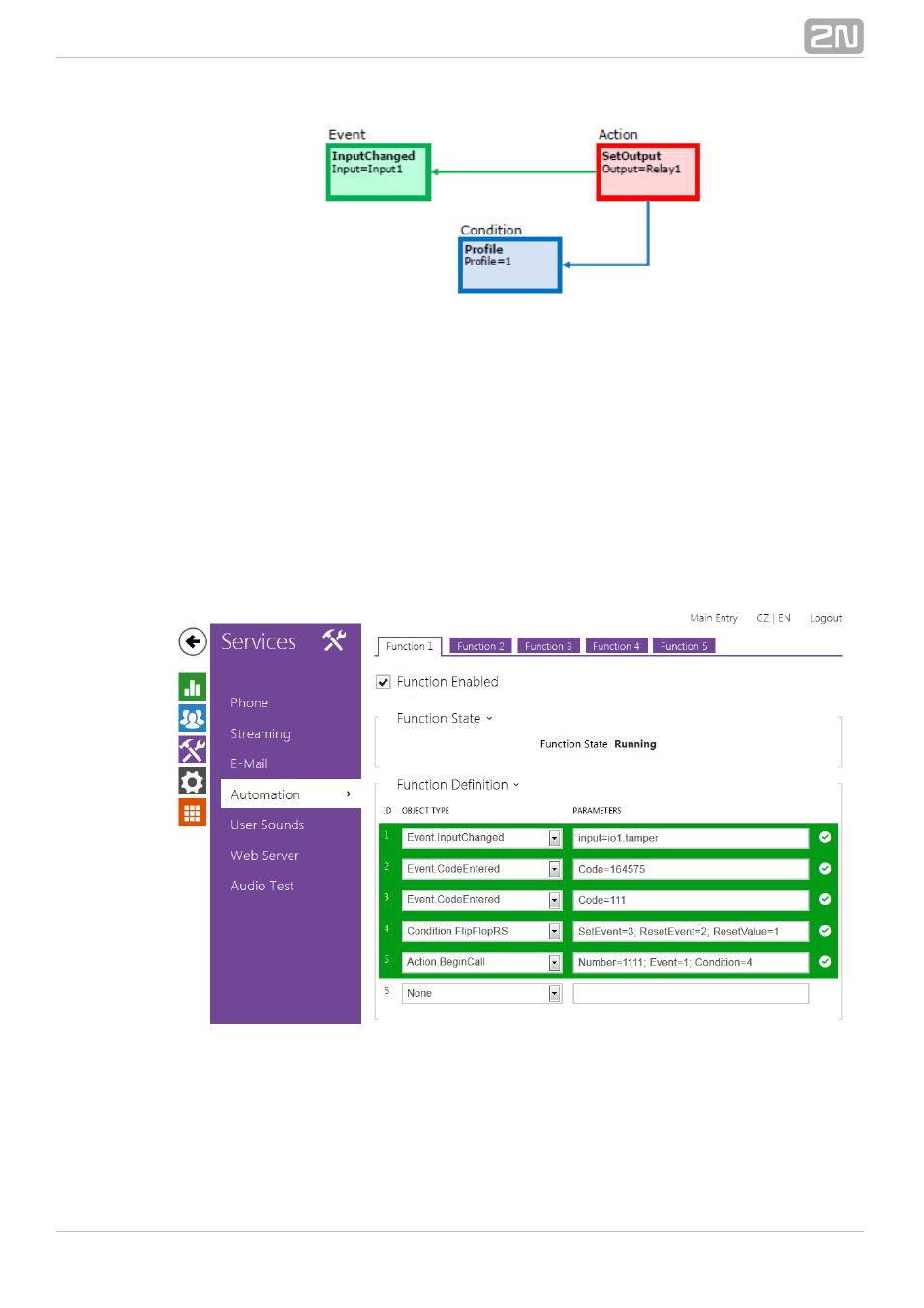

The figure above shows a typical interconnection of the Event, Action and Condition
blocks. It holds true in general that an action is always tied with a selected event and is
executed when a selected condition is met. The condition is optional and if none is
selected, the action is executed whenever the assigned event occurs. 2N Helios IP

defines a number of events, actions and conditions to be further set.

Automation
Refer to the subsections below for the full list.

The example shown in the figure above can be interpreted as follows: The

SetOutput

action (digital output setting) is executed if the

event (logic input1

InputChanged

change from log 0 to log 1) arises and the

(active profile 1) condition is met.

Profile

The

web interface helps you configure block combinations

2N Helios IP

(Automation) easily. The configuration shown in the figure below corresponds to the
example above.

2N Helios IP

allows up to 20 blocks at 5 pages to be created and interconnected

(regardless of the block type – events, actions and conditions). Multiple actions can be
assigned to an event or condition. Thus, you can create 10 actions and assign them to
10 events, or create 19 actions and assign them to 1 event, for example.
