3.4 LAN Connection
2N OfficeRoute is connected to the 10/100BASE-T
(Twisted Pair Ethernet) LAN using a standard straight
(non-crossed) cable terminated with RJ-45 connectors
like other types of equipment (PC, etc.).

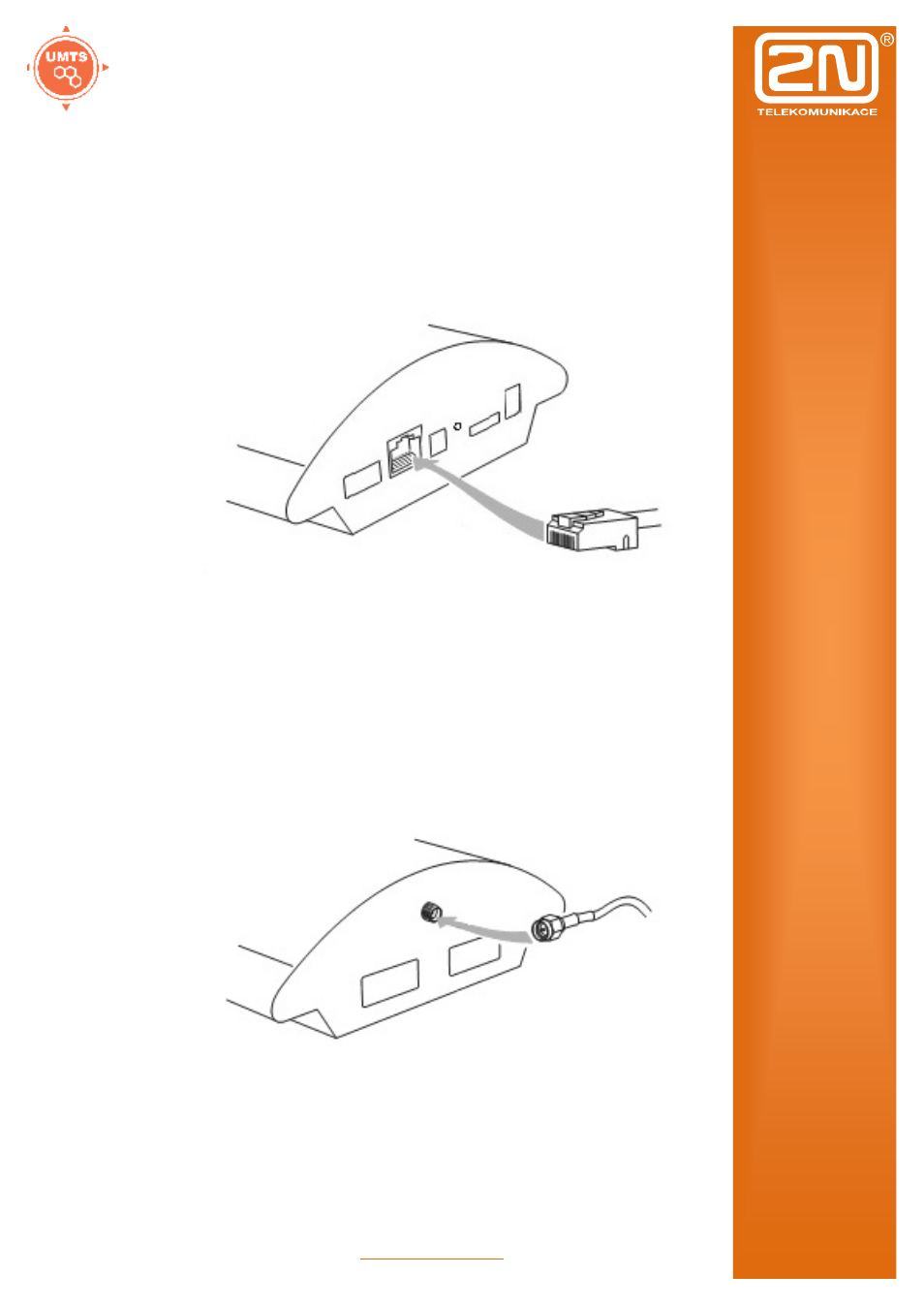

Fig. 5 – LAN Connection
3.5 Antenna Connection
No matter if equipped with one UMTS and one, two ot
three GSM modules, it has just one SMA antenna
connector, to which an external antenna cable is
connected. This external antenna should be installed
vertically on a place with a good UMTS/GSM signal.
Fig. 6 – Antenna Connector Connection
Tighten the antenna connector gently with your hand,
never use a wrench!
