ELECTRICAL

3508PS, 3509PS, 3512PS, 3513PS, 4008PS, 4009PS, 4012PS, 4013PS, 4017PS, 40.8, 40.9

31200204

10-66

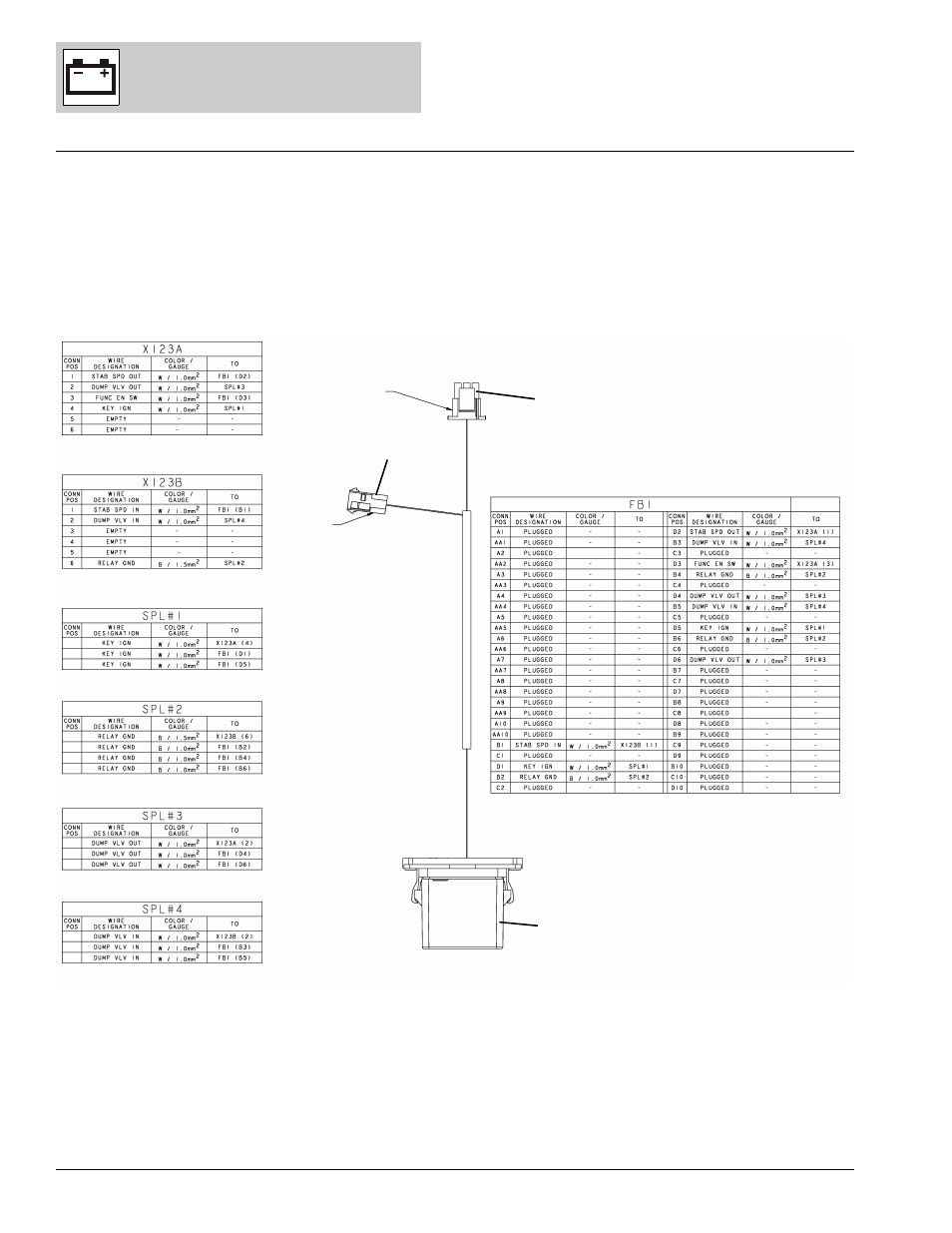

Figure 10-23 Platform Cab Harness

X123A

X123B

FBI

1

2

3

PAP3130

TO MAIN CAB HARNESS

TO MAIN CAB HARNESS

TO MAIN CAB HARNESS
