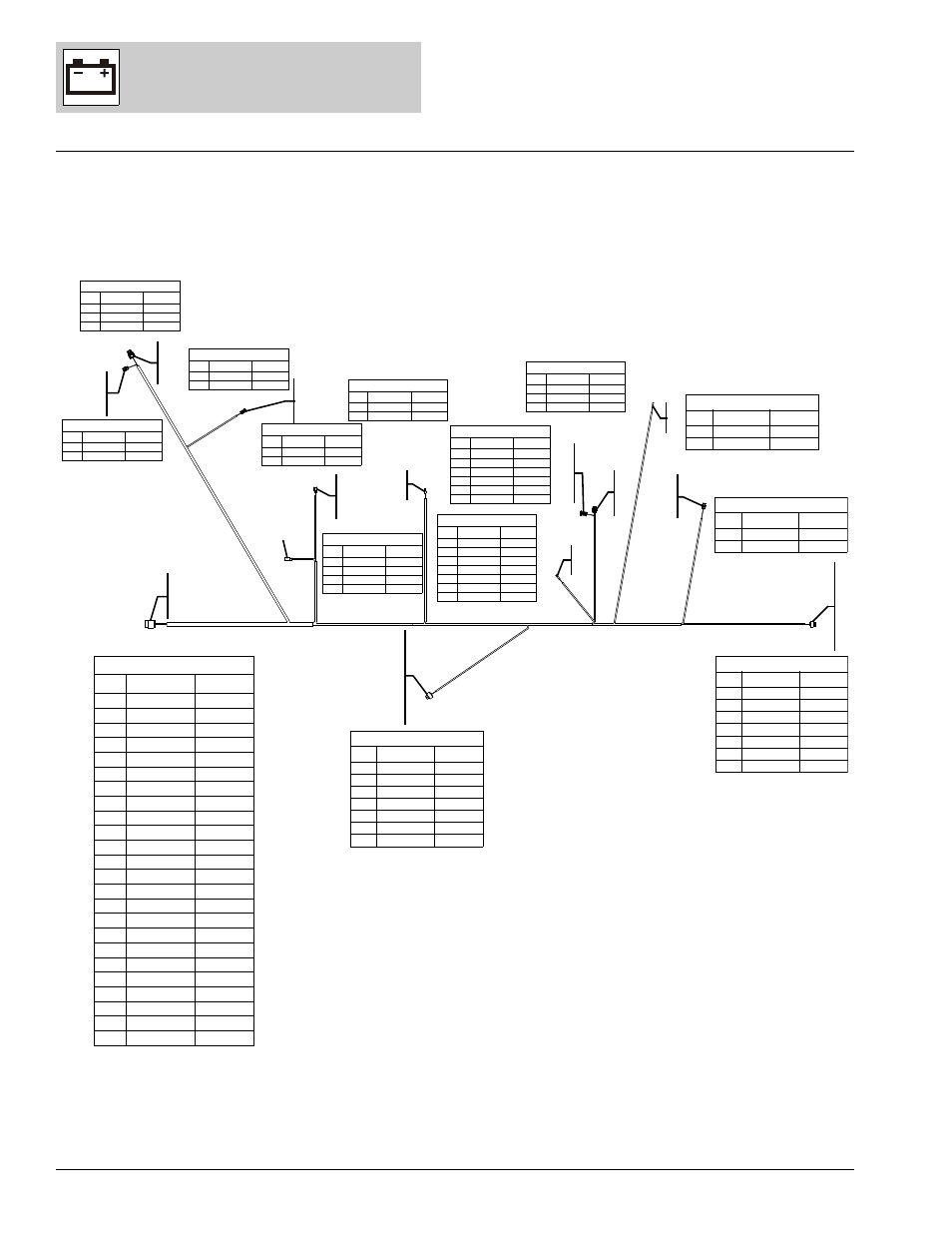

Figure 10-14 Rear Chassis Harness
X2
X80
X81
X74
X78
X82
X75
X76
X77
X90
X83
X87
X85
X86
X2
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 FUEL LVL W / 1.0mm²
2 RCH GND5 B / 1.0mm²
3 BM ANG W / 1.0mm²
4 R STR POS W / 1.0mm²
5 CAN2H Y / .75mm²
6 REV OUT W / 1.5mm²
7 RTR MRK LT W / 1.5mm²
8 LTR MRK LT W / 1.5mm²
9 LT TURN W / 1.5mm²
10 RT TURN W / 1.5mm²
11 BRK LTS W / 1.5mm²
12 LMI S+ 0.75mm²
13 LMI S- 0.75mm²
14 ANG GND W / 1.0mm²
15 BM LTS W / 1.5mm²
16 FRT REAR AUX W / 1.5mm²
17 LMI SHIELD 0.75mm²
18 CAN2L G / .75mm²
19 BM RETRACT W / 1.0mm²
20 KEY 2B W / 1.0mm²
21 CAN2 SHIELD 0.75mm²
22 RCH GND2 B / 1.5mm²
23 RCH GND3 B / 1.5mm²
24 RCH GND4 B / 1.5mm²
X74
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 RCH GND2 B / 1.5mm²
2 LTR MRK LT W / 1.0mm²
3 REV OUT W / 1.0mm²
4 LT TURN W / 1.0mm²
5 BRK LTS W / 1.0mm²
6 PLUGGED
7 PLUGGED
X75
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 RCH GND2 B / 1.5mm²
2 RTR MRK LT W / 1.0mm²
3 REV OUT W / 1.0mm²
4 RT TURN W / 1.0mm²
5 BRK LTS W / 1.0mm²
6 PLUGGED
7 PLUGGED
X77
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 REV OUT W / 1.0mm²
2 RCH GND2 B / 1.0mm²
X76
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 RTR MRK LT W / 1.0mm²
2 RCH GND2 B / 1.0mm²
X82
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 ANG GND W / 1.0mm²
2 KEY 2B W / 1.0mm²
3 BM ANG W / 1.0mm²
X86
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 ANG GND B / 1.0mm²
2 KEY 2B W / 1.0mm²
3 PLUGGED
4 PLUGGED
5 CAN2L G / .75mm²
6 CAN2H Y / .75mm²
X90
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 LT TURN W / 1.5mm²
2 EMPTY
3 RCH GND4 B / 1.5mm²
4 RT TURN W / 1.5mm²
5 RTR MRK LT W / 1.5mm²
6 BRK LTS W / 1.5mm²
7 LTR MRK LT W / 1.5mm²
X78
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 FUEL LVL W / 1.0mm²
2 RCH GND5 B / 1.0mm²
X81
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 LMI S- 0.75mm²
2 LMI S+ 0.75mm²
X80
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 KEY 2B W / 1.0mm²
2 N/C
3 RCH GND5 B / 1.0mm²
4 R STR POS W / 1.0mm²
X85
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 FRT REAR AUX W / 1.5mm²
2 RCH GND3 B / 1.5mm²
X83
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 KEY 2B W / 1.0mm²
2 RCH GND5 B / 1.0mm²
3 BM RETRACT W / 1.0mm²
X87
CONN
POS
WIRE
DESIGNATION
COLOR /
GAUGE
1 BM LTS W / 1.5mm²
2 RCH GND3 B / 1.5mm²
1
2
3
12
13
23
13
20
23
17
18
21
16
17
18
19
10
15
11
12
10
11
12
13
14
4
5
6
7
8
9
4
5
6
7
8
9
13
20
23
24
25
26
27
