HYDRAULIC COMPONENTS
3508PS, 3509PS, 3512PS, 3513PS, 4008PS, 4009PS, 4012PS, 4013PS, 4017PS, 40.8, 40.9 31200204 9-74

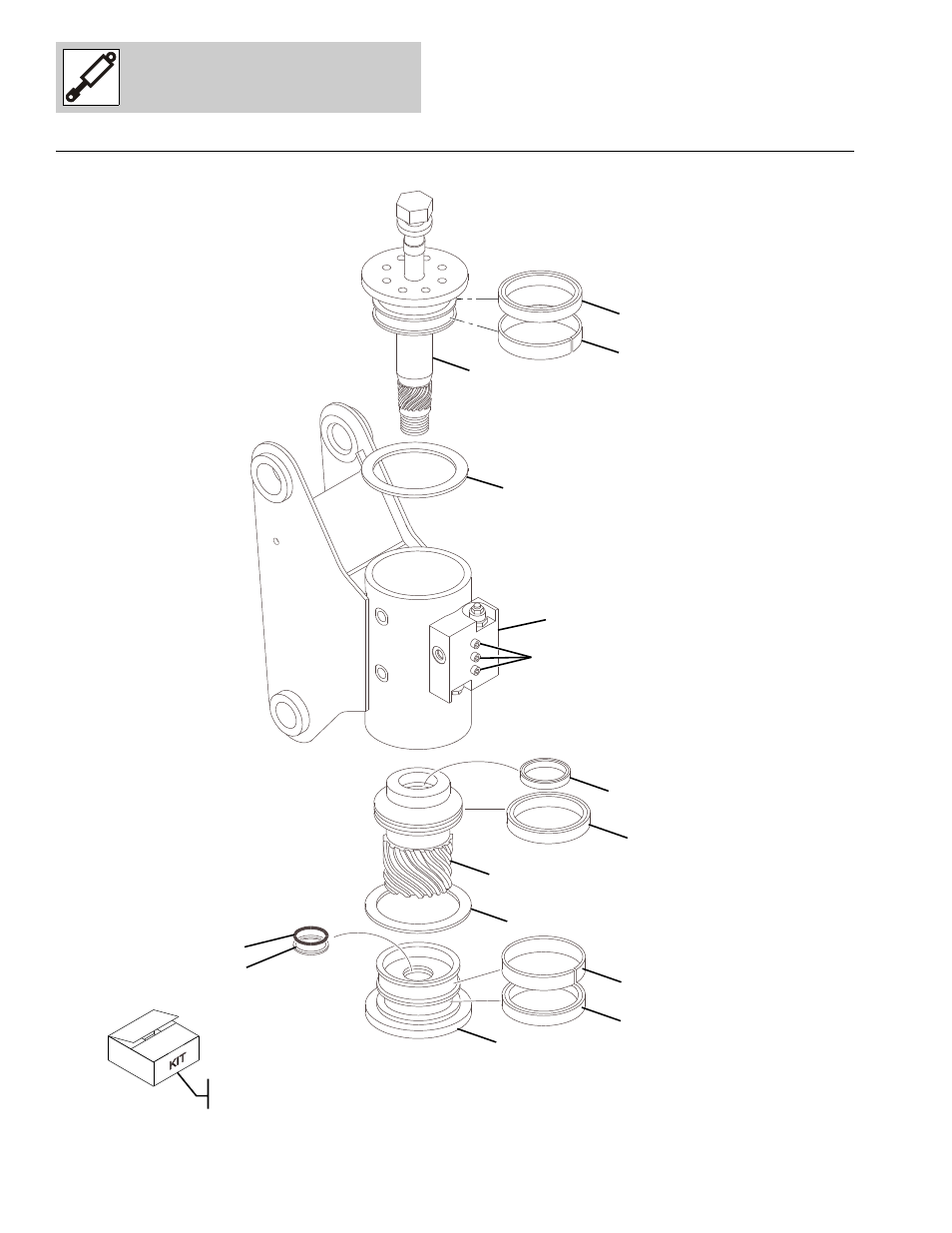

Figure 9-17 Actuator Assembly
2
3
4
8
15
16
13
14
13
14
15
12
11
9
10
K1
K2
PAP13850
