SECTION 2 - PROCEDURES
3120691
– JLG Sizzor –
2-31
NOTE: Make sure retaining ring is securely seated in groove
in spindle.

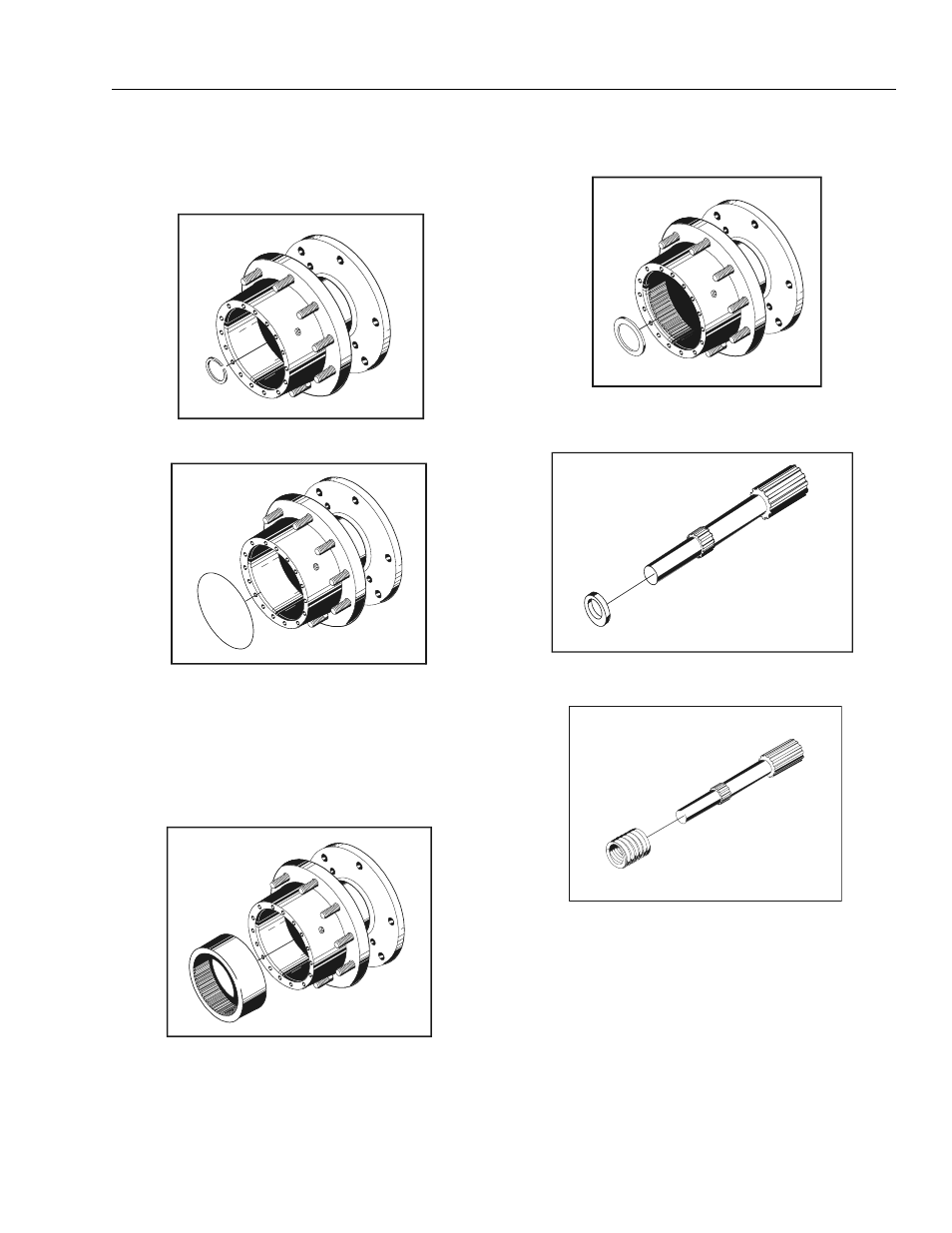

10.
Place retaining ring over spacer onto spindle in hub.
11.
Grease o-ring and place it into counter bore in hub .
NOTE: O-ring may be stretched or pinched together to make
it fit counter bore exactly.
12.
Oil all exposed surfaces inside hub.
13.
Place internal gear into hub so that its internal
splines mesh with external splines of spindle. Oil
internal gear.
14.
Place thrust washer around spindle so that it rests
on bottom of internal gear.
15.
Stand input shaft on its splined end. Place one
spacer onto smooth end of input shaft.
16.
Place one spring onto smooth end of input shaft.
