SECTION 4 - CONTROL COMPONENTS
4-12 – JLG Lift – 3121163
AC Circuit Breaker/Voltage Select Switch -
Remove/Install
Battery Discharge Indicator - Remove/Install
Printed Circuit Board - Remove/Install

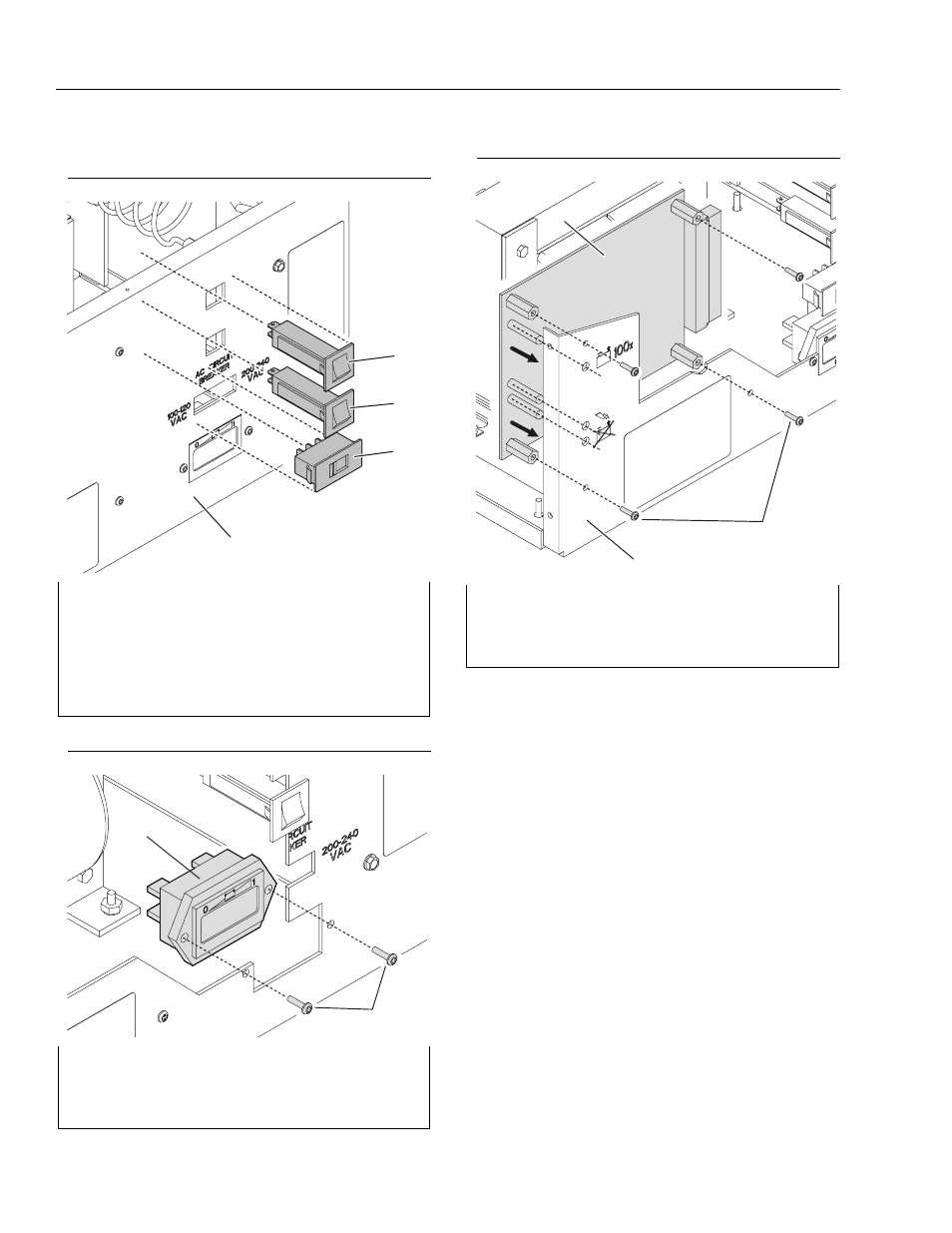

AC Circuit Breaker/Voltage Select Switch - Remove/Install
1. Front Face of Charger 2. 120/240 - AC Input Voltage Selector
3. & 4. 120 and 240 AC - 8 Amp-DC Circuit Breakers
Note: These switches are secured and released by tabs on
each side of the switch behind the switch face. The
cover must be removed to release the switch.
Battery Discharge Indicator - Remove/Install
1. LED Display Indicator 2. Mounting Screws
Note: Charger front panel shown cut-away in illustration.
1
2
3
4
1
2
Circuit Board - Remove/Install
1. Circuit Board 2. Board Screws (4) 3. Charger Face Plate
Note: Charger front panel shown cut-away in illustration.
1
2
3
