SECTION 1 - MACHINE SPECIFICATIONS
3121163 – JLG Lift – 1-5

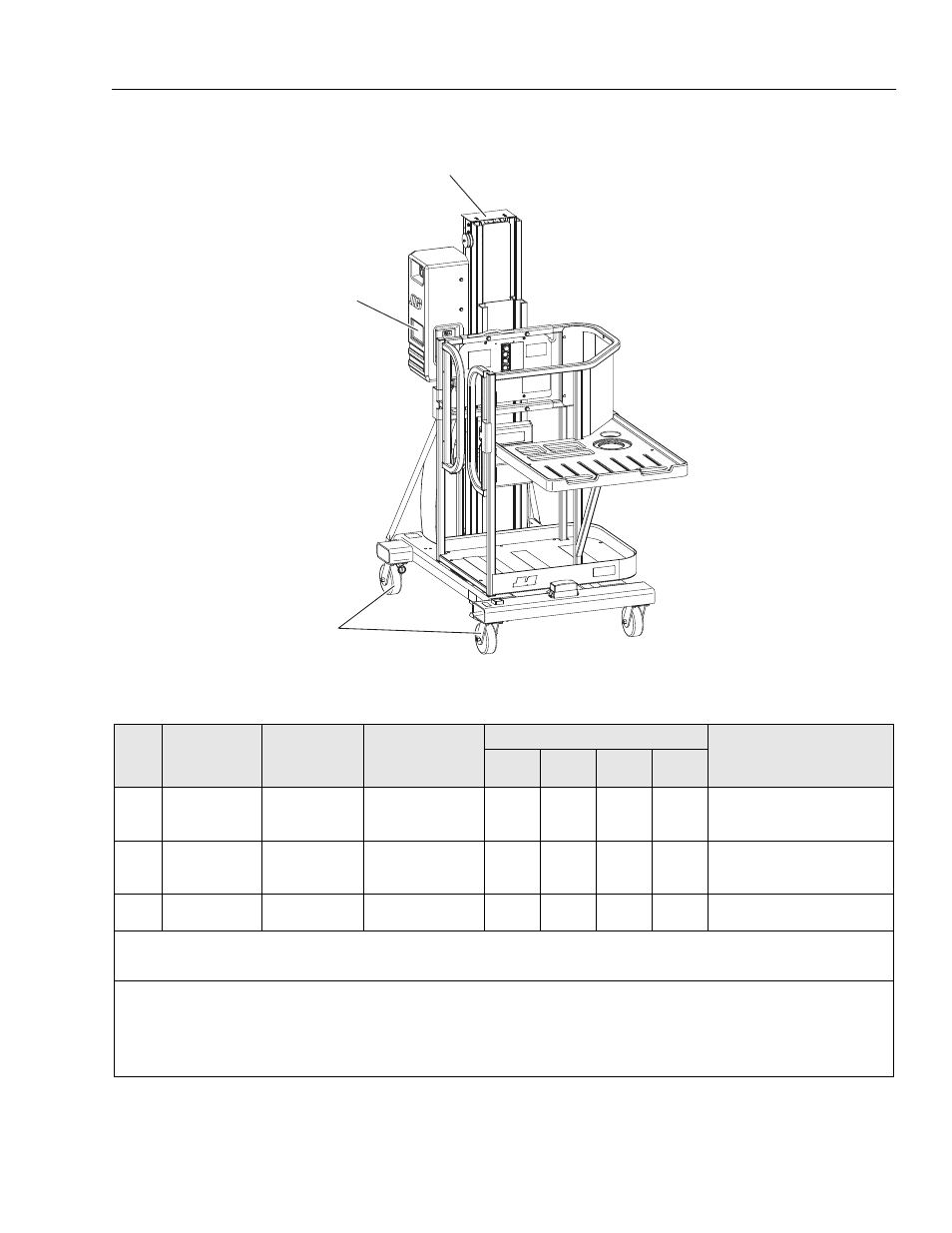

Lubrication Points
1
3
2
Table 1-5.Lubrication Intervals for Various Components
ITEM COMPONENT
NO/TYPE
LUBE POINTS
LUBE/METHOD
INTERVAL HOURS
COMMENTS
3
MONTHS
6
MONTHS
1
YEAR
2
YEARS
1 Swivel Raceways
2 - Front Casters
2 - Rear Casters -
(if equipped)
MPG - Pressure Gun
✔
2 Hydraulic Oil (3)
Fill To Line on
Reservoir
4 Qt. Reservoir HO - Check Hyd. Oil
Level
HO - Change Hyd. Oil
✔
Check Hydraulic Oil level daily.
Change Hydraulic Oil every 2
years.
3 Mast Chains
(2) 2 - Per Section
Chain Lube - Brush or
Spray ✔
Inspect, lubricate if dry or rusting.
Key to Lubricants: MPG - Multipurpose Grease
HO - Hydraulic Oil - See Section 1.5, "Lubrication" in Service Manual.
Notes: 1. Be certain to lubricate like items on each side of the machine.
2. Recommended lubricating intervals are based on normal use. If machine is subjected to severe operating conditions,
such as a high number of cycles, location, corrosive/dirty environment, etc., user must adjust lubricating requirements accordingly.
3. Prior to checking hydraulic oil level, operate machine through one complete cycle of lift function (full up and down). Failure to do so will
result in incorrect oil level reading on the hydraulic reservoir.
