SECTION 3 - BASE COMPONENTS
3121163 – JLG Lift – 3-3

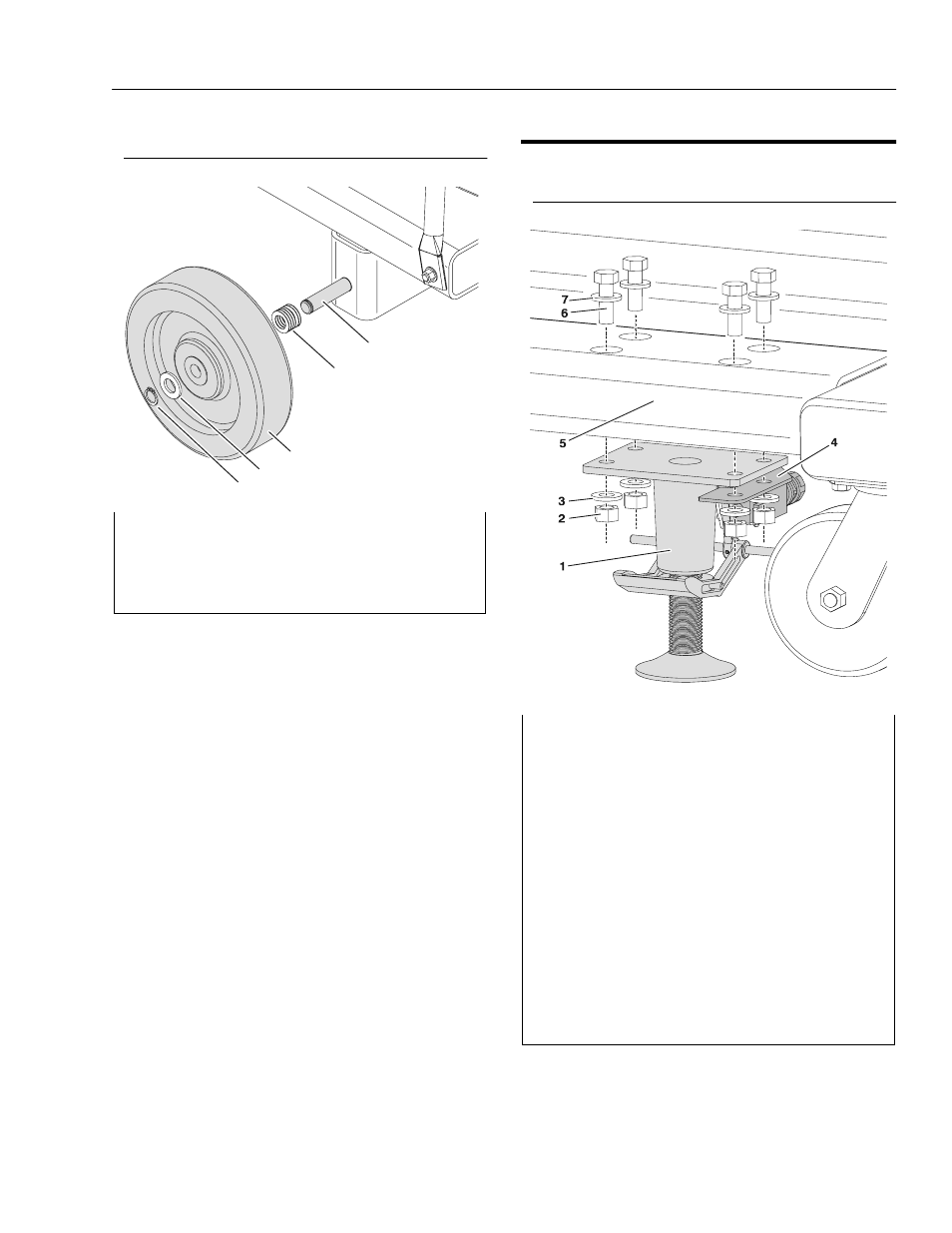

Rear Wheel (Straight Axle)- Remove/Install
3.4 FLOOR STOP ASSEMBLY
Floor Stop - Remove/Install
1. Snap Ring 4. Washers (as required)
2. Washer 5. Base Frame Mounted Axle
3. Rear Wheel Assembly
Note: Left rear wheel shown.
1
2
3
4
5
1. Floor Stop Assembly 5. Right Side Base Frame/
2. Hex Nuts Fork Lift Tube
3. Flat Washers 6. Hex Head Screws (b)
4. Interlock Switch Bracket (a) 7. Flat Washers
Note: (a) Mount bracket on outside of floor stop base.
(b) Apply Loctite #242 to screw threads before
installing nuts.
To gain access to the floor stop mounting screws located inside
the right base frame/fork lift tube:
a. On a firm, level surface, power machine ON.
b. Set floor stop.
c. Raise platform approximately 2 feet from outside the platform.
d. Power machine OFF.
e. Place a floor stand under the raised platform before working
under it.
f. Release the floor stop.
g. Remove floor stop fasteners.
