SECTION 4 - CONTROL COMPONENTS

3121163

– JLG Lift –

4-5

4.5

PLATFORM STATION - SERVICING

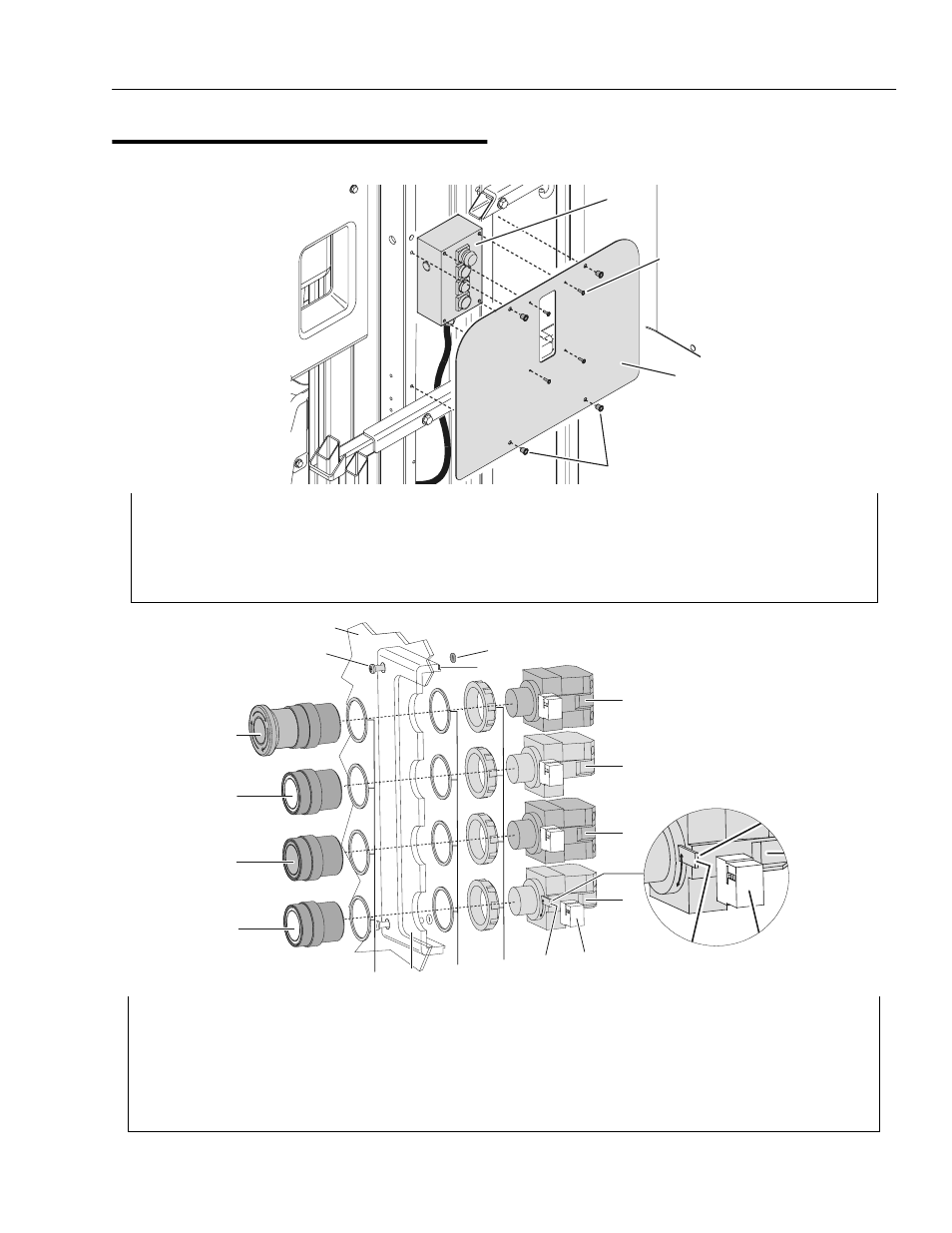

Platform Control Station - Removal/Installation

1. Platform Control Box

2. Box Mounting Screws (4)

3. Decal Mounting Board

4. Mounting Board Rivets (4) (a)

Notes: (a) To remove decal mounting board, remove the pop rivets attaching it to the mast header.

Platform is shown cut-away for illustrative purposes.

Platform Control Station - Disassembly/Assembly

1. Emergency Stop Button

5. Button Outer Seal

9. Switch Release Lever

13. Lift Up Switch

17. Silicone Bead

2. Lift Up Button

6. Box Cover (cutaway) 10. Release Lever Cover

14. E-Stop Switch

18. Platform Decal

3. Enable Button

7. Button Inner Seal

11. Lift Down Switch

15. Cover Screw

Mounting Board

4. Lift Down Button

8. Button Attach Nut

12. Enable Switch

16. Screw Seal

Note: See wiring schematic in Section 6 of this manual for correct wiring connections.
