SECTION 3 - CHASSIS & TURNTABLE
3121616 – JLG Lift – 3-31
3.7 SWING DRIVE

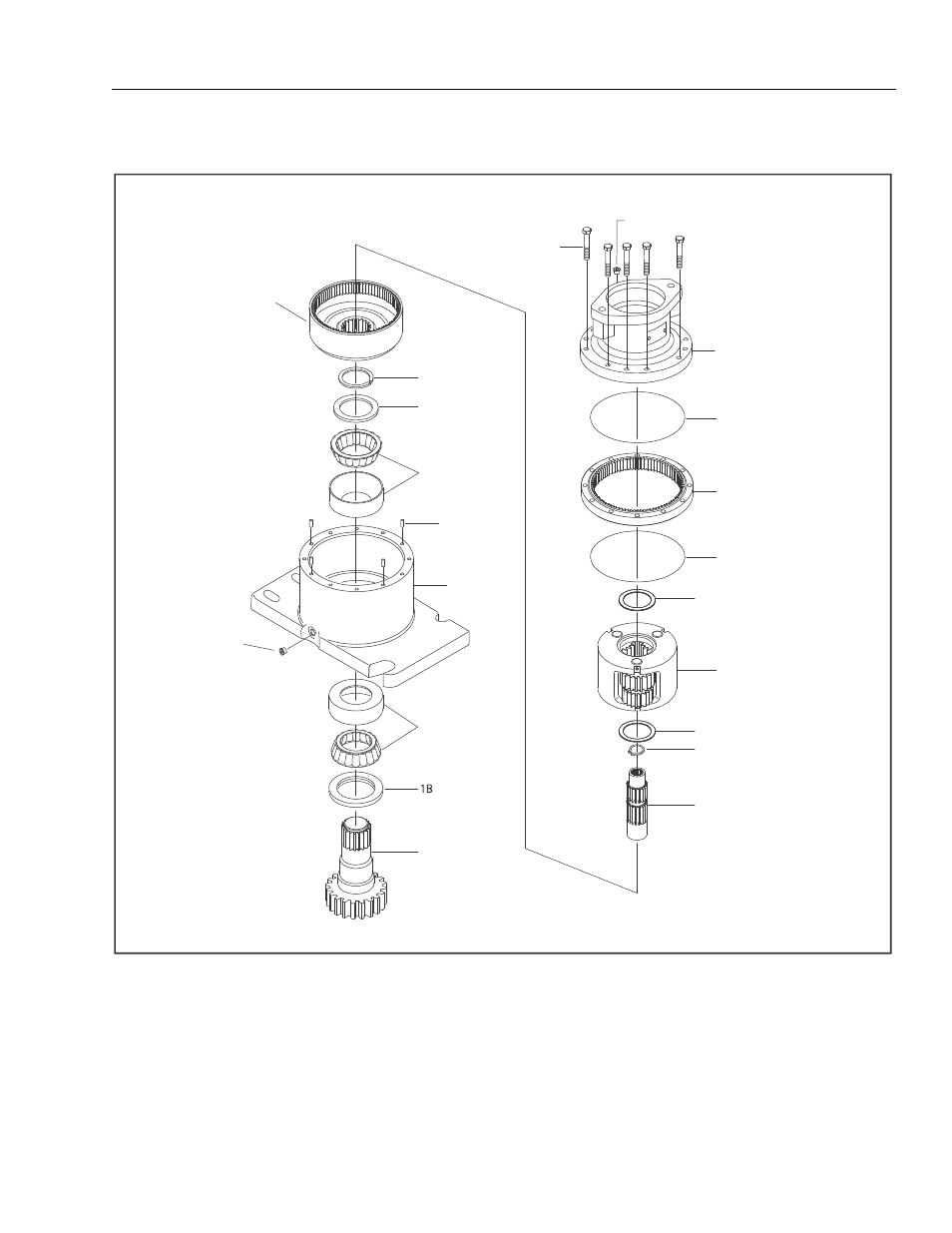

Figure 3-41. Swing Drive Assembly
2
1I
1H
1E
1G
1J
13
1C
1A
12
20
6
5A
4
5
11
3
11
44
8
1A. Output Shaft
1B. Lip Seal
1C. Bearing
1E. Bearing 1G. Housing
1H. Thrust Washer
1I. Retaining Ring
1J. Pipe Plug 2. Internal Gear
3. Carrier Assembly
4. Ring Gear
5. O-Ring 5A. O-Ring
6. Brake Housing
8. Sun Gear
11. Thrust Washer 12. Bolt
13. Dowel Pin
20. Pipe Plug
44. Internal Retaining Ring
