SECTION 5 - HYDRAULICS
5-52 – JLG Lift – 3121616

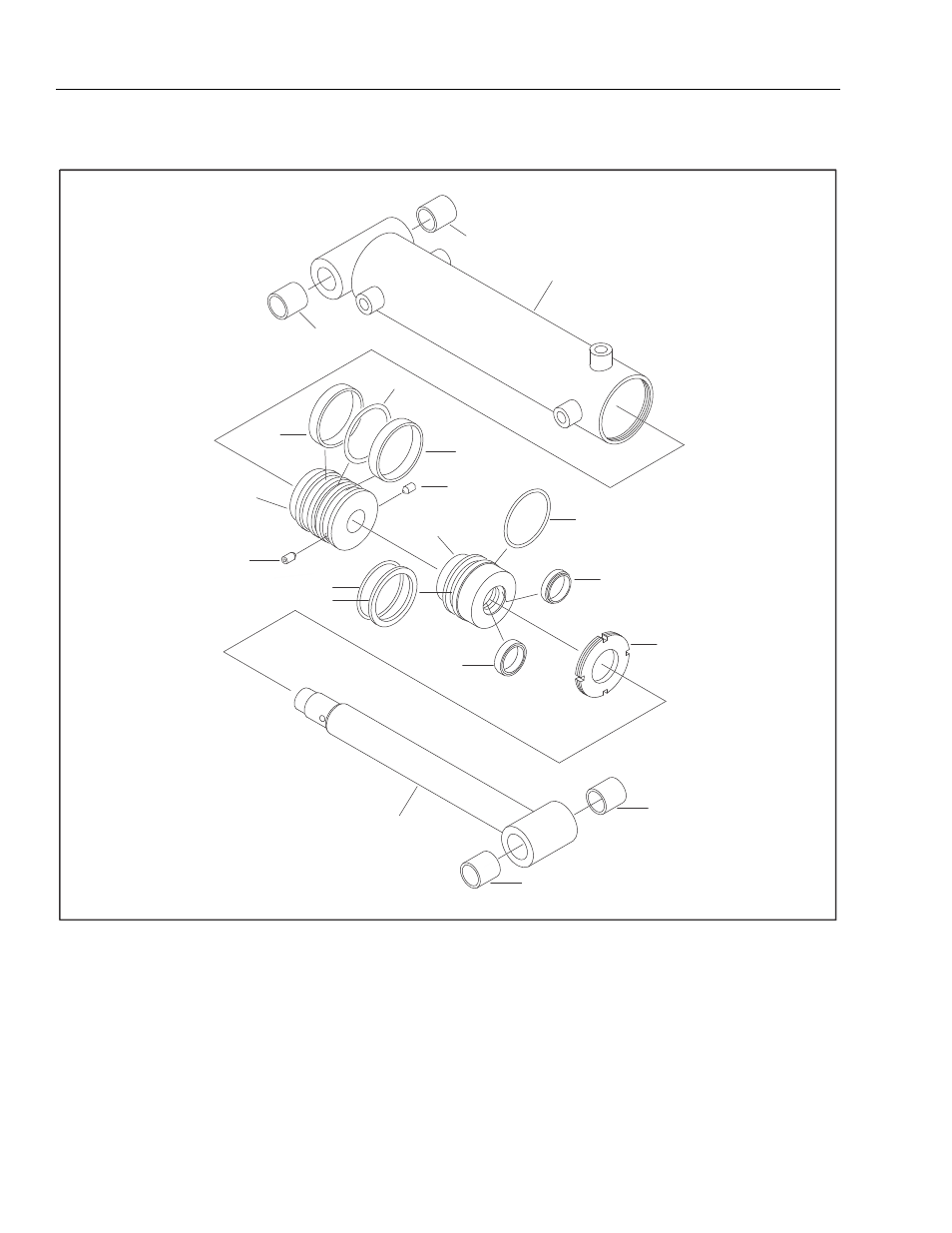

Figure 5-115. Steer Cylinder Assembly
1. Piston
2. Seal
3. O-Ring
4. Setscrew
5. Barrel
6. Rod
7. Head
8. O-Ring
9. Back-Up Ring
10. Seal
11. O-Ring
12. Wiper
13. Spanner Nut
14. Composite Bushing
1001097242 C
*150-180 ft-lb (203-244 Nm)
**57-63 ft-lb (77-85 Nm)
14
14
5
3
2
2
1*
4
8
9
7
11
12
4
10
12
13**
6
14
14
