SECTION 5 - HYDRAULICS
5-56 – JLG Lift – 3121616

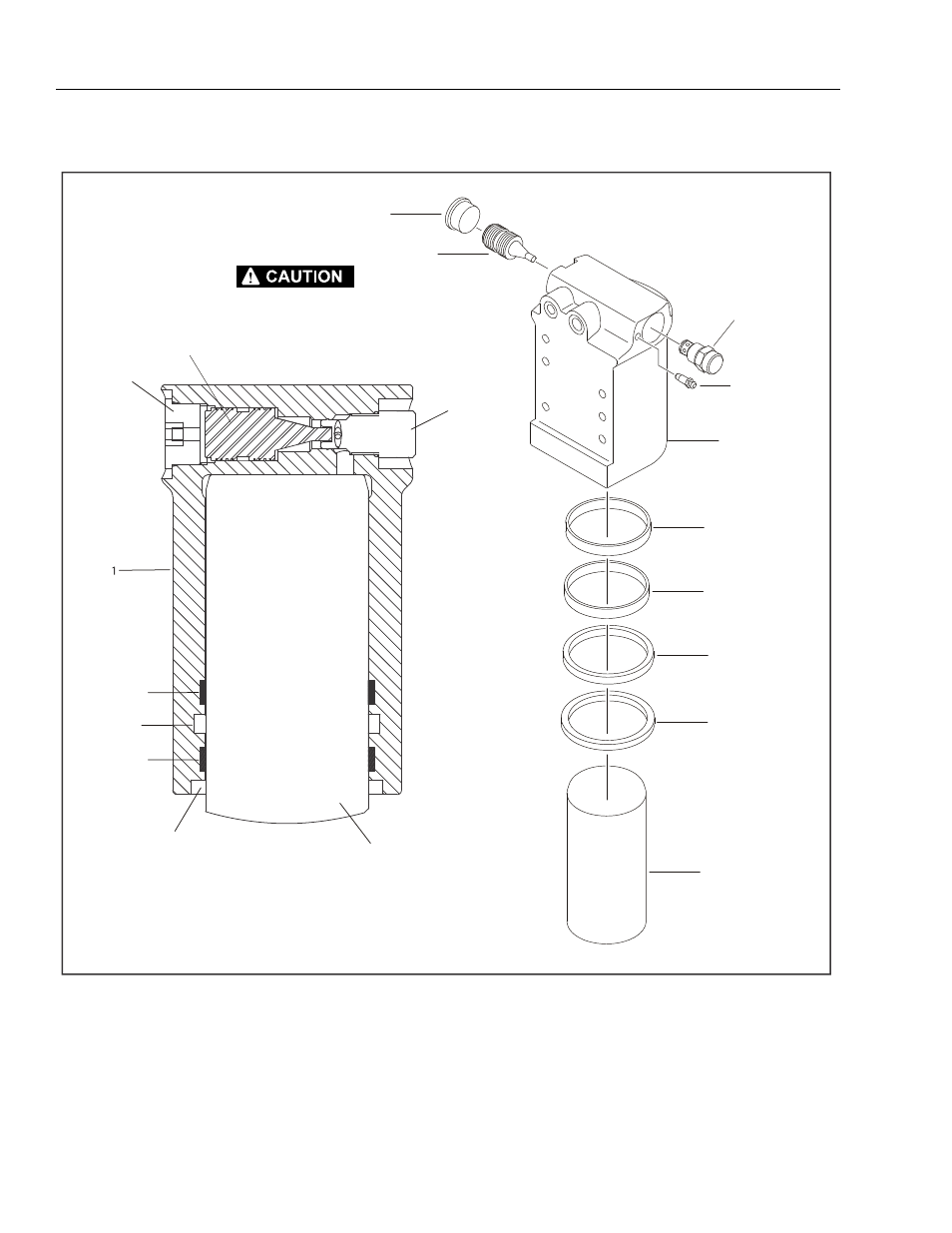

Figure 5-122. Axle Lockout Cylinder
1
3
4
9*
8
5
6
5
7
2
6
3
2
5
5
7
4
9
1684465 F
*Torque to 25 - 27 ft-lb (33 - 36 Nm)
FALLING PARTS CAN CAUSE INJURY AND EQUIPMENT DAMAGE. CYLINDER
ROD CAN FALL OUT WHEN BLEEDER VALVE IS OPENED.
1. Barrel
2. Rod
3. Plug
4. Pilot Piston
5. Wear Ring
6. Wiper
7. Rod Seal
8. Bleeder
9. Cartridge Valve
