Deutz engine installation - sheet 2 of 2 -63 – JLG 660AJ Service Manual User Manual
Page 107

SECTION 3 - CHASSIS & TURNTABLE
3121616
– JLG Lift –
3-63

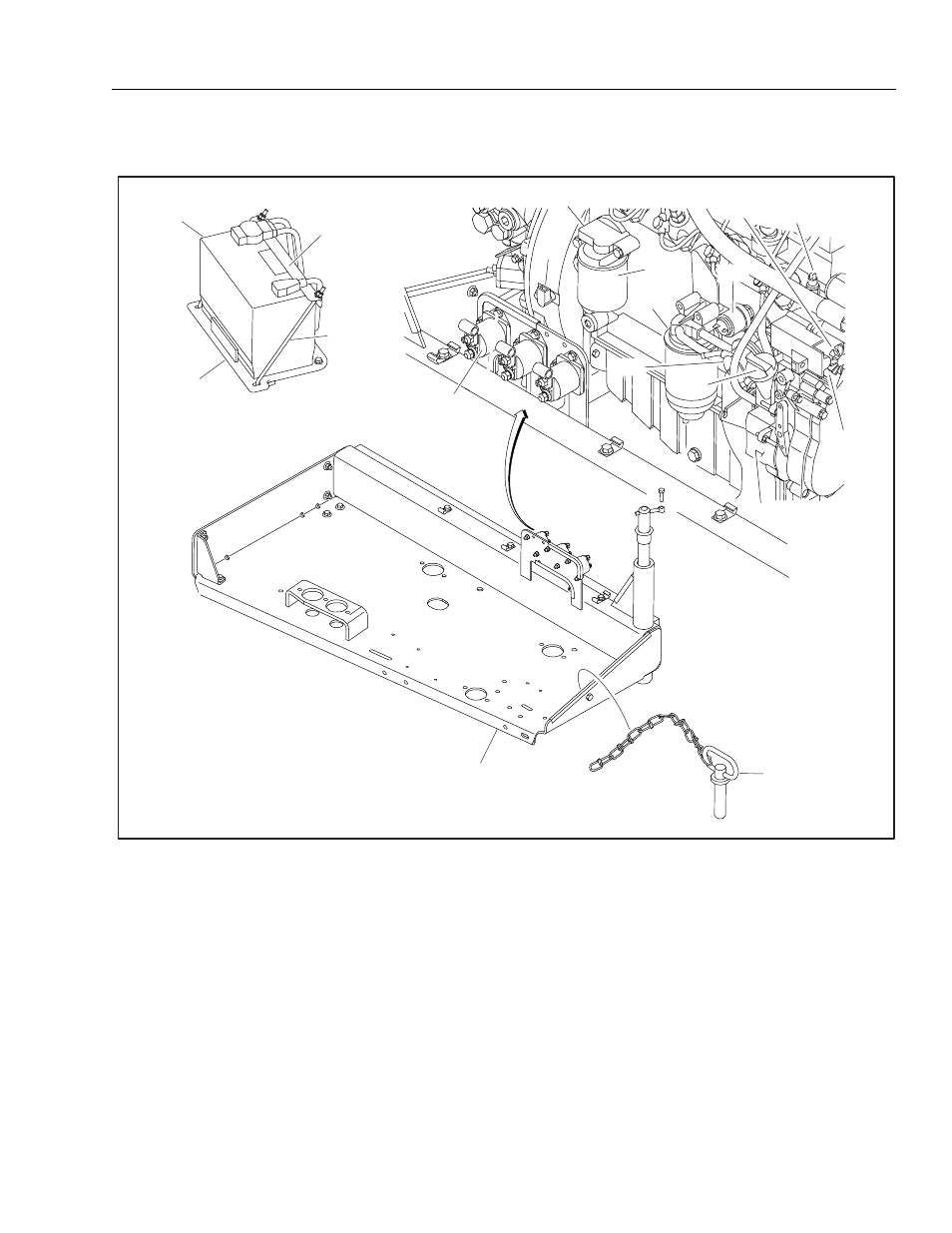

Figure 3-79. Deutz Engine Installation - Sheet 2 of 2
3. Battery
26. Battery Hold-Down
27. J-Bolt
28. Battery Hold-Down Plate
105. Hitch Pin
231. Relay
251. Engine Tray
402. Filler Cap
403. Oil Lube Pump
404. Oil Filter
406. Fuel Filter
407. Fuel Supply Pump
414. Temperature Sensor
415. Oil Pressure Sensor
416. Speed Sensor
417. Throttle Actuator
420. Temperature Sensor
