SECTION 3 - CHASSIS & TURNTABLE
3121616 – JLG Lift – 3-3

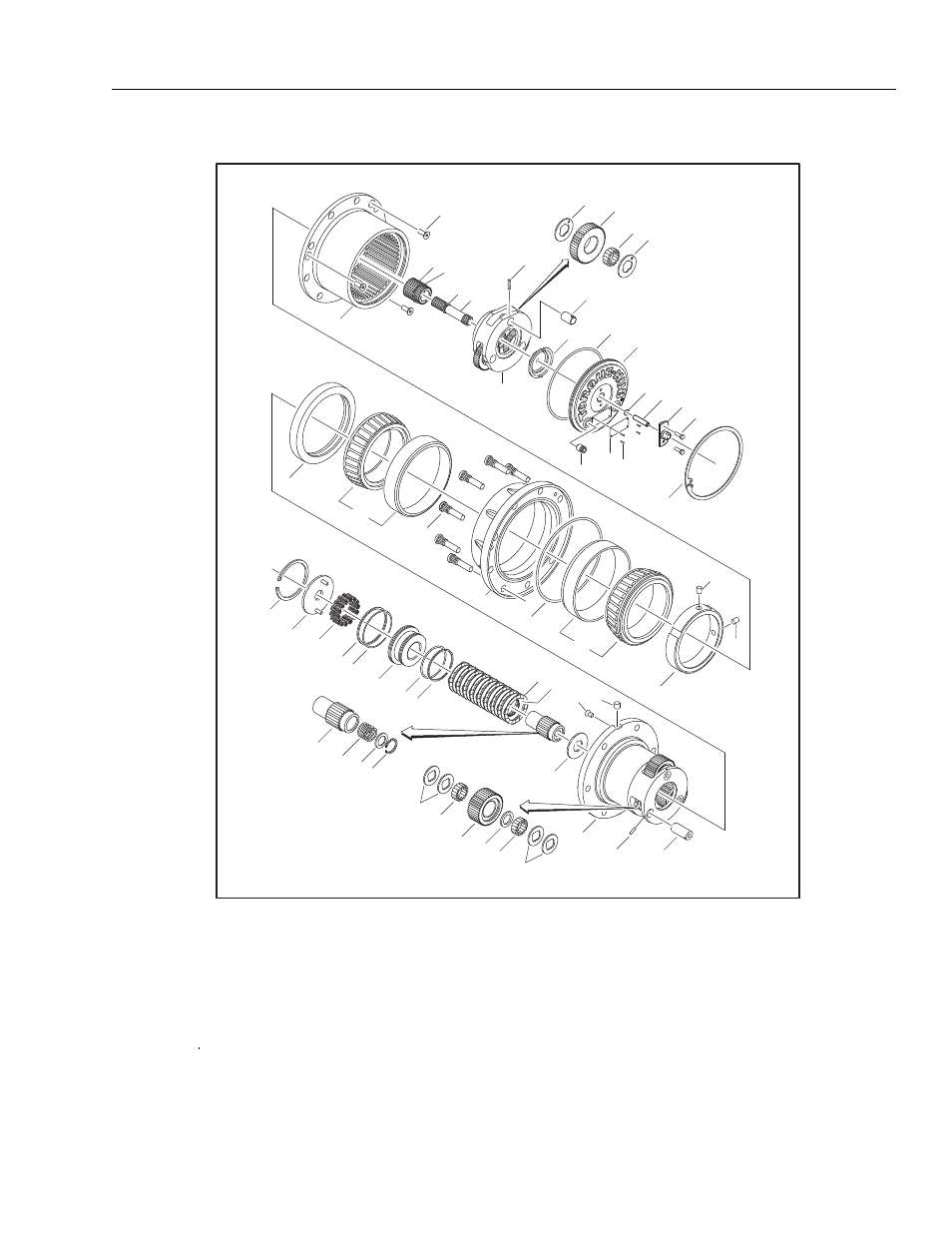

Figure 3-3. Torque Hub
1A. Spindle
1B. Seal
1C. Bearing
1D. Housing
1E. Ring Gear
1F. Bearing Nut
1G. Setscrew
1H. Wheel Stud
1K. Retaining Ring 1L. Spring
1M. Thrustwasher
2. Thrustwasher
3A. Carrier
3B. Thrustwasher
3C. Needle Bearing
3E. Planet Shaft
3F. Planet Gear
4B. Thrustwasher 4C. Needle Bearing
4D. Thrust Spacer
4E. Planet Shaft
4F. Planet Gear
4G. Roll Pin
4H. Thrustwasher
5. Retaining Ring
6A. Cover Plate
6B. Disengage Cap 6C. Bolt
6D. Dowel Pin
6E. O-Ring
6F. Pipe Plug
6G. Retaining Ring
7. Coupling
8A. Brake Piston
8B. Pressure Plate
8C. Retaining Ring 8D. O-Ring
8E. Back-up Ring
8F. O-Ring
8H. Back-up Ring
8J. Brake Rotor
8K. Brake Stator
8L. Brake Spring
9. Input Shaft
11. Sun Gear 12. Plug
15. I.D. Plate
16. Drive Screw
17. O-Ring
18. O-Ring
19. Countersunk Screw
20. Retaining Ring
21. Plug
